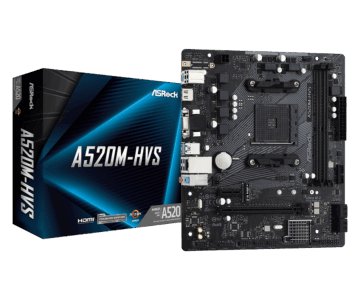

ASRock A520M-HVS Micro ATX Motherboard for AMD AM4 CPUs
Original price was: £47.90.£44.35Current price is: £44.35. INC VAT
In stock
In stock
You Save: £3.55 (7%)
Key Features
- Micro ATX Form Factor
- AMD A520 Chipset
- Socket AM4
- DDR4 (Max: 64GB / 2 slots)
- 1 x M.2 & 6 x USB & 4 x SATA
- HDMI and VGA
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description
ASRock A520M-HVS Dependable Power in a Compact Form
Optimized for Ryzen Power
The ASRock A520M-HVS Micro ATX motherboard is built to deliver smooth and stable performance for AMD’s 3rd Gen Ryzen and 4000 Series processors. With a robust 6-phase power design and full support for high-speed DDR4 memory up to 4733+ MHz (OC), it ensures reliable performance in demanding computing tasks. Whether you’re building a budget-friendly system or a powerful workstation, this board has the muscle to keep up without breaking the bank.
High-Speed Connectivity and Display Support
Featuring dual graphics outputs including HDMI with 4K @60Hz support and D-Sub, the A520M-HVS provides versatile video options for modern displays. Its Ultra M.2 slot, compatible with PCIe Gen3 x4 and SATA3, offers ultra-fast storage performance up to 32Gb/s, making it ideal for boot drives and quick data access. Combined with a generous selection of USB 3.2 and USB 2.0 ports, this motherboard ensures seamless connectivity for all your devices.
Built for Durability and Stability
ASRock equips the A520M-HVS with several premium reliability features, such as 50A power chokes for improved voltage stability, Full Spike Protection against power surges, and a Sapphire Black PCB crafted with high-density glass fabric to resist humidity and electrical shorts. These enhancements make the motherboard exceptionally durable, extending its lifespan and ensuring your system remains dependable even under heavy loads.
| Motherboard Type | Desktop |
|---|---|
| Form Factor | Micro ATX |
| Socket | AMD AM4 |
| Chipset | AMD A520 |
| CPU Support | Supported CPUs *Not compatible with Ryzen 5 3400G & Ryzen 3 3200G |
| RAM Technology | DDR4 (Dual Channel) |
| RAM Slots | 2 x DIMM |
| RAM Speeds | 4733+(OC) down to 2133 MHz |
| Max Memory | 64GB |
| Graphics | Integrated (depends on CPU) |
| Graphics Ports | 1 x VGA (D-Sub) 1 x HDMI (Supports 4K @60Hz) |
| Multi-GPU Support | – |
| PCIe Slots | 1 x PCIe 3.0 x16 1 x PCIe 3.0 x1 |
| Storage | 4 x SATA III 1 x Ultra M.2 (PCIe Gen3 x4 & SATA) |
| RAID Support | RAID 0, 1, 10 |
| LAN | Realtek Gigabit LAN |
| Audio | 7.1 CH HD Audio (Realtek ALC887) |
| USB Ports | 6 x USB 3.2 Gen1 (4 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front) |
| Back Panel I/O | 1 x PS/2 Mouse/Keyboard 1 x D-Sub 1 x HDMI 2 x USB 2.0 4 x USB 3.2 Gen1 1 x RJ-45 LAN HD Audio Jacks |
| Internal I/O | 1 x SPI TPM 1 x COM Port 1 x Chassis Intrusion & Speaker 1 x CPU Fan 2 x Chassis Fan 1 x 24-pin ATX 1 x 4-pin 12V 1 x Front Audio 2 x USB 2.0 Headers 1 x USB 3.2 Gen1 Header |
| Accessories | 2 x SATA Cables 1 x M.2 Screw |
| Special Features | Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3) HDMI 4K @60Hz Dual Graphics Outputs (D-Sub + HDMI) Premium 50A Power Chokes High Density Glass Fabric PCB Sapphire Black PCB Full Spike Protection ASRock Live Update & APP Shop |
| Package Type | Retail |
| Package Weight | 0.792 kg |
| Warranty | 2 Year Replacement |
