Key Features
- Micro ATX Form Factor
- AMD A620 Chipset
- Socket AM5
- DDR5 (Max: 192GB / 4 slots)
- 3 x M.2 & 15 x USB & 4 x SATA
- HDMI and Display Port
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
ASRock A620M Pro RS WiFi Micro ATX Motherboard for AMD AM5 CPUs
Original price was: £105.81.£103.46Current price is: £103.46. INC VAT
Out of stock
Out of stock
You Save: £2.35 (2%)
Key Features
- Micro ATX Form Factor
- AMD A620 Chipset
- Socket AM5
- DDR5 (Max: 192GB / 4 slots)
- 3 x M.2 & 15 x USB & 4 x SATA
- HDMI and Display Port
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description

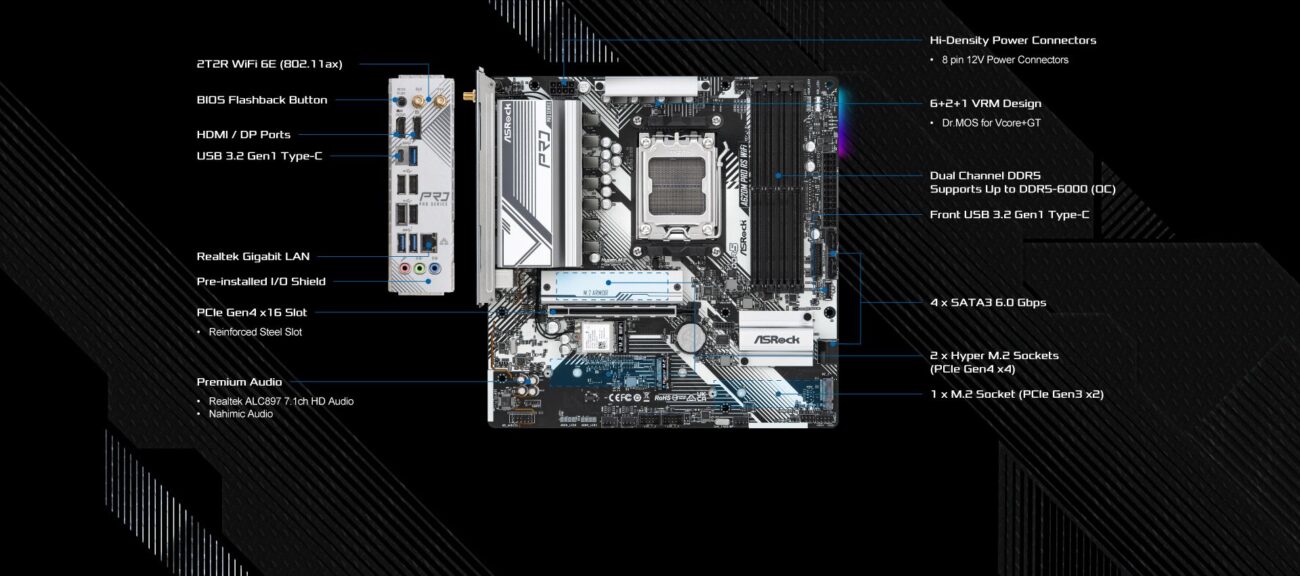

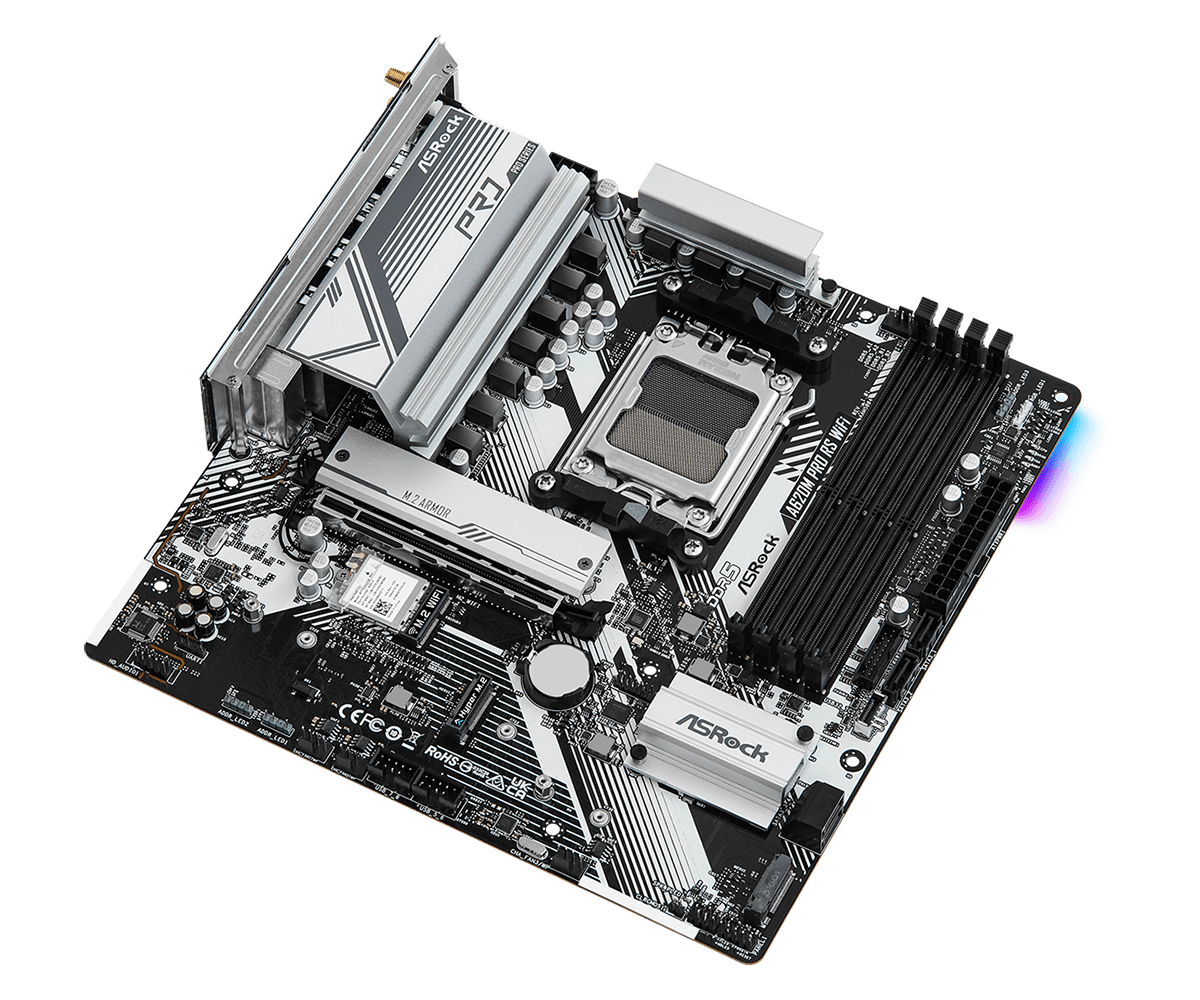

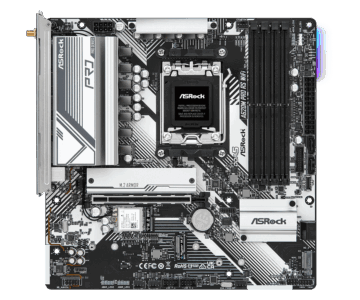

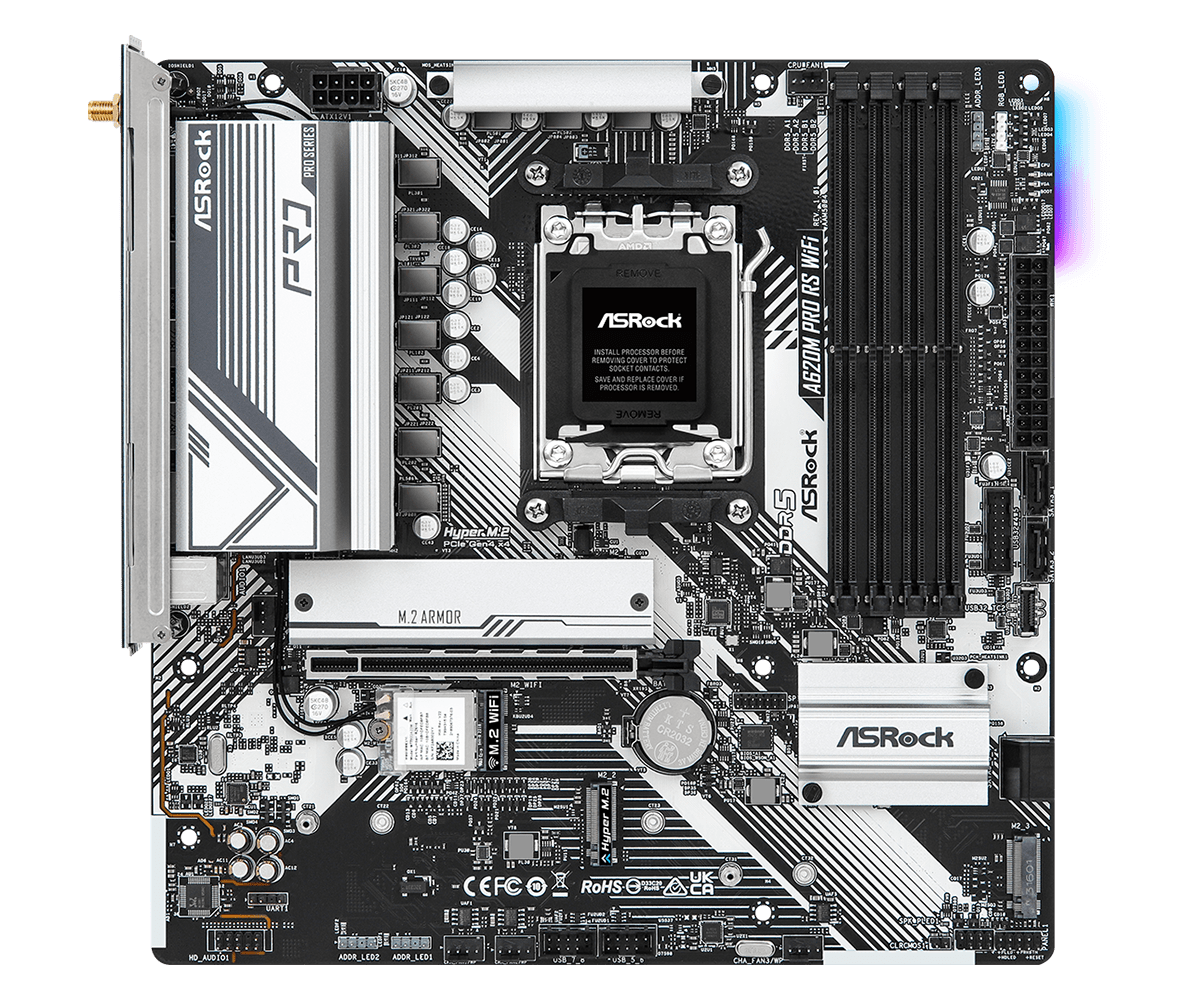

Asrock A620M PRO RS WiFi – Power Meets Precision for the Next-Gen AM5 Platform
Performance-Driven Engineering
The Asrock A620M PRO RS WiFi is engineered to deliver exceptional performance for AMD’s AM5 platform. Equipped with a 6+2+1 power phase design and Dr.MOS technology, this motherboard ensures stable power delivery, making it suitable for high-performance tasks and gaming. Its support for DDR5 memory up to 7200+ MHz (OC) allows for faster data processing and improved system responsiveness.
Robust Connectivity and Expansion
Designed with versatility in mind, the A620M PRO RS WiFi offers a comprehensive range of connectivity options. It features dual M.2 slots supporting PCIe Gen4x4 and Gen3x2 interfaces, providing ample storage expansion with high-speed data transfer rates. The inclusion of USB 3.2 Gen1 Type-C and Type-A ports, along with HDMI and DisplayPort outputs, ensures compatibility with a wide array of peripherals and display devices.
Enhanced User Experience
ASRock has integrated features aimed at enhancing the user experience. The motherboard includes a BIOS Flashback button, allowing users to update the BIOS without the need for a CPU, RAM, or GPU. Additionally, the Auto Driver Installer simplifies the setup process by automatically installing necessary drivers. The built-in Wi-Fi 6E module and Bluetooth 5.2 support provide fast and reliable wireless connectivity, catering to modern networking demands.
| Motherboard Type | Desktop |
| Form Factor | Micro ATX |
| Socket | AMD AM5 |
| Chipset | AMD A620 |
| DDR Type | DDR5 |
| CPU Support | Click here for CPU support |
| RAM Technology | DDR5 (Dual Channel) |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Up to 7200+ MHz (OC) |
| Maximum Memory | 192GB |
| Graphics | Integrated Graphics* |
| Graphics Ports | 1 x HDMI, 1 x DisplayPort |
| PCI/PCI Express | 1 x PCIe 4.0 x16 |
| Storage | 4 x SATA III, 3 x M.2 (2 x PCIe Gen4x4, 1 x PCIe Gen3x2) |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA and M.2 NVMe storage devices |
| Wireless | 802.11ax Wi-Fi 6E Module, Bluetooth 5.2 |
| LAN | Gigabit LAN |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| USB Ports Supported | 1 x USB 3.2 Gen1 Type-C (Rear), 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 8 x USB 2.0 (4 Rear, 4 Front), 1 x Front USB 3.2 Gen1 Type-C connector |
| Back Panel I/O Ports | 2 x Antenna, 1 x HDMI, 1 x DisplayPort 1.4, 3 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen1 Type-C, 4 x USB 2.0, 1 x RJ-45 LAN, 1 x BIOS Flashback Button, HD Audio Jacks |
| Internal I/O Connectors | 1 x SPI TPM, 1 x Power LED and Speaker, 1 x RGB LED, 3 x Addressable LED, 1 x CPU Fan, 1 x CPU/Water Pump Fan, 3 x Chassis/Water Pump Fan, 1 x 24 pin ATX, 1 x 8 pin 12V, 1 x Front Panel Audio, 2 x USB 2.0, 1 x USB 3.2 Gen1, 1 x Front Panel Type-C USB 3.2 Gen1 |
| Accessories | 1 x User Manual, 2 x SATA Data Cables, 2 x ASRock WiFi 2.4/5/6 GHz Antennas, 3 x Screws for M.2 Sockets, 1 x Standoff for M.2 Socket |
| Package Type | Retail |
