ASRock B650M PG LIGHTNING (B650, AMD AM5, Micro ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe4, 3x M.2)
Original price was: £102.67.£95.06Current price is: £95.06. INC VAT
In stock
In stock
You Save: £7.61 (7%)
Key Features
- Micro ATX Form Factor
- AMD B650 Chipset
- Socket AM5
- DDR5 (Max: 64GB / 4 slots)
- 2 x M.2 & 8 x USB & 2 x SATA
- HDMI
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description

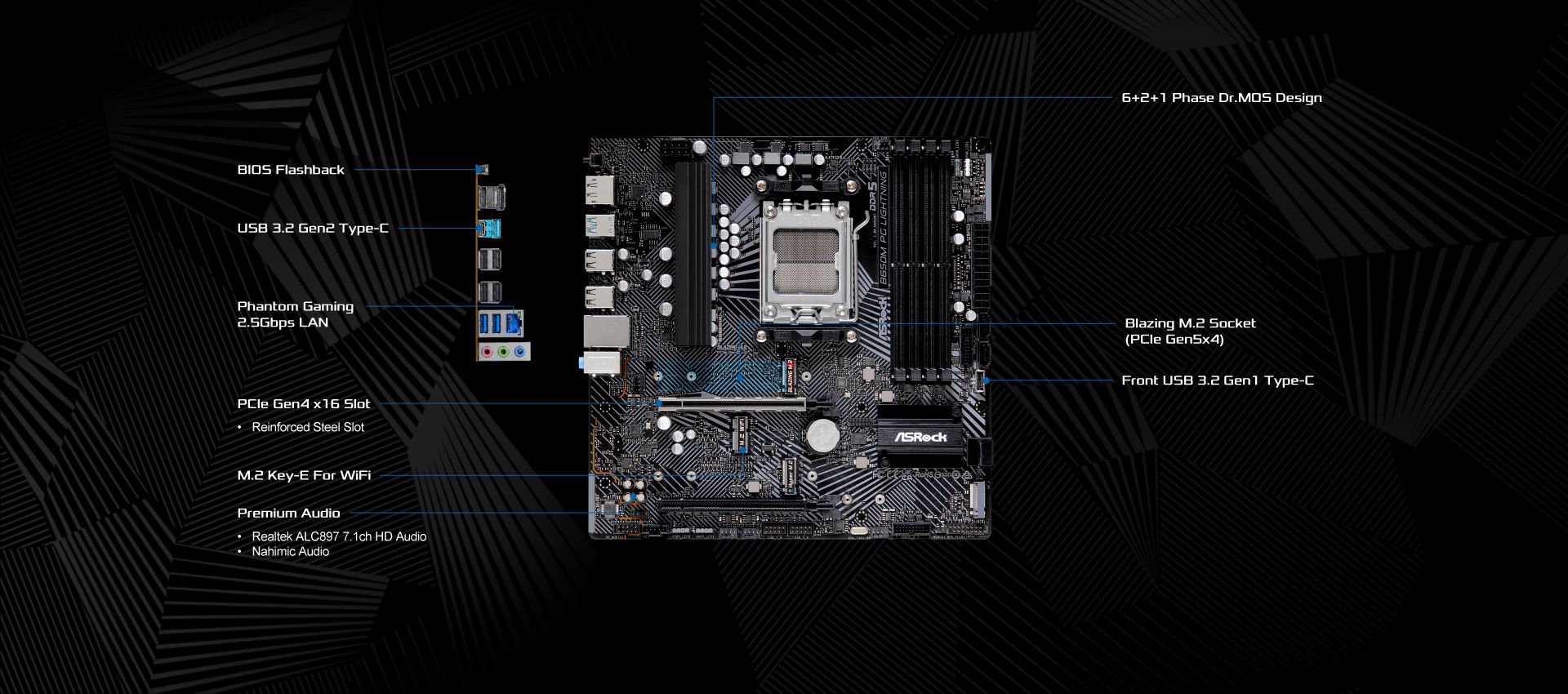

ASRock B650M PG LightningMicro Powerhouse with Blazing Speed and DDR5 Excellence
Compact Form with Exceptional Performance
The ASRock B650M PG Lightning is purpose-built for high-performance micro ATX systems using AMD Ryzen 7000 and 8000 Series processors. Designed to deliver speed and efficiency, it features a robust 6+2+1 Dr.MOS power phase setup and reinforced PCIe 4.0 Steel Slot, supporting the most demanding GPUs and DDR5 memory configurations. With up to 7200+ MHz overclocked memory support and powerful cooling enhancements, this board ensures peak responsiveness for modern gaming and creative workflows.
Next-Gen Storage and Expansion Versatility
Take advantage of cutting-edge storage with a PCIe 5.0 M.2 slot backed by additional PCIe 4.0 and PCIe 3.0 interfaces, enabling ultra-fast boot and load times. Whether you’re configuring a high-speed RAID setup or maximizing SSD bandwidth, the board provides flexible options. Multi-GPU support with AMD CrossFire and 4 SATA III connectors offer versatile build paths for gaming or productivity tasks.
Connectivity and Audio Built for Immersion
Connectivity is future-proofed with USB 3.2 Gen2 Type-C on both rear and front panels, along with 2.5G LAN and BIOS Flashback for easy updates. Onboard Realtek 7.1 CH HD Audio paired with Nahimic Audio technology ensures immersive sound quality for gaming, streaming, or content creation. With HDMI, DisplayPort, customizable ARGB headers, and front-panel Thunderbolt AIC support, this board caters to gamers and creators alike seeking compact, powerful, and stylish solutions.
| Specification | Details |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | Micro ATX |
| Socket | AMD AM5 |
| Chipset | AMD B650 |
| DDR Type | DDR5 |
| CPU Support | Click here for CPU support |
| RAM Technology | DDR5 (Dual Channel), ECC/non-ECC, un-buffered, XMP & EXPO |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Up to 7200+ MHz (OC) |
| Maximum Memory | 256GB |
| Graphics | Integrated (depends on CPU) |
| Graphics Ports | 1 x HDMI, 1 x Display Port |
| Multi-GPU Support | AMD CrossFire |
| PCI/PCI Express | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x4) |
| Storage | 4 x SATA III, 1 x M.2 PCIe 5.0 x4, 1 x M.2 PCIe 4.0 x4, 1 x M.2 PCIe 4.0 x2 |
| RAID | RAID 0/1/10 (SATA & NVMe) |
| Wireless | – (Wi-Fi module not included) |
| LAN | 2.5G LAN (Phantom Gaming) |
| Audio | Realtek ALC897 7.1 CH HD Audio, Nahimic Audio |
| Rear USB | 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 |
| Front USB | 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 |
| Back Panel I/O | 2 x Antenna Mounts, 1 x HDMI, 1 x Display Port 1.4, 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0, 1 x RJ-45 LAN, 1 x BIOS Flashback Button, HD Audio Jacks |
| Internal I/O | 1 x SPI TPM, 1 x Power LED and Speaker, 1 x RGB LED, 3 x Addressable LED, 1 x CPU Fan, 1 x CPU/Water Pump Fan, 3 x Chassis/Water Pump Fan, 1 x 24-pin ATX, 1 x 8-pin 12V, 1 x Front Audio, 1 x Thunderbolt AIC, 2 x USB 2.0, 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen1 Type-C (Front) |
| Accessories | 1 x User Manual, 1 x I/O Shield, 2 x SATA Data Cables, 4 x M.2 Screws |
| Package Type | Retail |
| Package Weight | 1.22 kg |
| Warranty | 3 Year Replacement Warranty |
