Key Features
- Micro ATX Form Factor
- AMD B850 Chipset
- Socket AM5
- DDR5 (Max: 256GB / 4 slots)
- 3 x M.2 & 8 x USB & 4 x SATA
- HDMI and Display Port
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
ASRock B850M Riptide WiFi Micro ATX Motherboard for AMD AM5 CPUs
Original price was: £167.16.£154.78Current price is: £154.78. INC VAT
In stock
In stock
You Save: £12.38 (7%)
Key Features
- Micro ATX Form Factor
- AMD B850 Chipset
- Socket AM5
- DDR5 (Max: 256GB / 4 slots)
- 3 x M.2 & 8 x USB & 4 x SATA
- HDMI and Display Port
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description

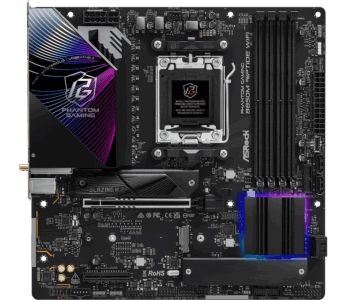

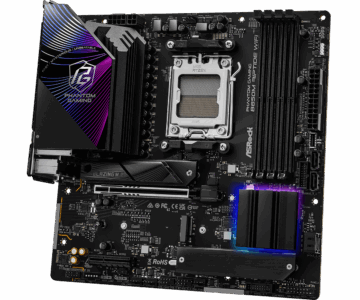

ASRock B850M Riptide WiFi – Power-Packed Micro-ATX for Next-Gen Gaming
Next-Gen Power and Performance

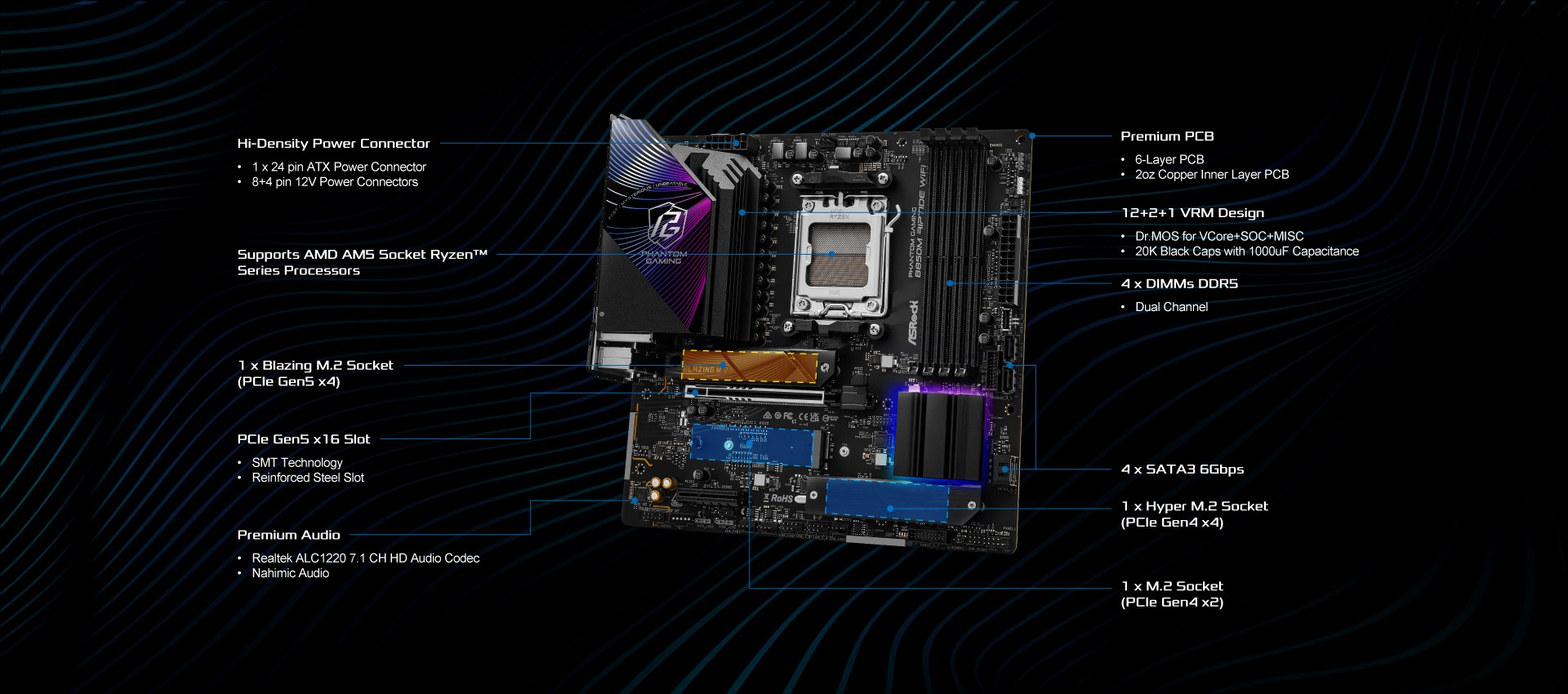

The ASRock B850M Riptide WiFi motherboard is a top-tier choice for gamers and performance enthusiasts ready to unlock the full power of AMD Ryzen 9000, 8000, and 7000 Series processors. With an advanced 12+2+1 phase power design featuring Dr.MOS, this board ensures smooth, reliable delivery of energy to even the most demanding CPUs. Its support for blazing-fast DDR5 memory up to 8000+ MHz (OC) and high-bandwidth PCIe 5.0 x16 slot provides an unbeatable foundation for high-end gaming, rendering, or content creation.
Extreme Connectivity and Storage Options
The B850M Riptide WiFi stands out with an incredible selection of next-gen connectivity. It includes three M.2 slots—supporting PCIe Gen5 and Gen4 configurations—allowing you to expand ultra-fast NVMe SSD storage with ease. In addition, you’ll get multiple USB ports, including USB 3.2 Gen2 Type-C and Type-A, making it easy to connect a range of modern peripherals. Onboard Realtek 2.5G LAN, cutting-edge Wi-Fi 7, and Bluetooth 5.4 deliver top-tier networking capabilities for seamless online performance.
Immersive Audio, RGB, and DIY Friendly Features
The ASRock B850M Riptide WiFi features Realtek ALC1220 7.1 CH HD Audio with Nahimic support, delivering crystal-clear, immersive audio that elevates your gaming and media experience. Polychrome RGB and SignalRGB support let you sync your lighting with the rest of your setup. With helpful features like BIOS Flashback, reinforced PCIe slots, and a flexible I/O shield, this board caters to system builders looking for durability and easy customization in a powerful micro-ATX form factor.
| Specification | Details |
|---|---|
| Form Factor | Micro ATX |
| Chipset | AMD B850 |
| Socket | AMD AM5 |
| CPU Support | Supported CPUs |
| Memory Support | 4 x DDR5 DIMM, Dual Channel, ECC/Non-ECC, Un-buffered, up to 8000+ MHz (OC), 256GB Max |
| Graphics Output | 1 x HDMI, 1 x Display Port (depends on CPU) |
| Expansion Slots | Ryzen 9000 & 7000: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4 Ryzen 8000: 1 x PCIe 4.0 x8/x4, 1 x PCIe 4.0 x4 |
| Storage | 4 x SATA III Ryzen 9000 & 7000: M.2_1 – PCIe 5.0 x4 Ryzen 8000: M.2_1 – PCIe 4.0 x4 Chipset: M.2_2 – PCIe 4.0 x2, M.2_3 – PCIe 4.0 x4 |
| RAID Support | SATA: RAID 0, 1 M.2 NVMe: RAID 0, 1, 10 (with expansion card) |
| LAN | Realtek 2.5G LAN |
| Wireless | Wi-Fi 7 (802.11be), Bluetooth 5.4 |
| Audio | 7.1 CH HD Audio (Realtek ALC1220) with Nahimic |
| USB (Rear) | 1 x USB 3.2 Gen2 Type-C (10Gbps) 1 x USB 3.2 Gen2 Type-A (10Gbps) 2 x USB 3.2 Gen1 Type-A 4 x USB 2.0 |
| USB (Front) | 1 x USB 3.2 Gen1 Type-C 4 x USB 3.2 Gen1 Type-A 4 x USB 2.0 |
| Back Panel I/O | 2 x Antenna Ports 1 x HDMI 1 x Display Port 1.4 1 x USB 3.2 Gen2 Type-C 1 x USB 3.2 Gen2 Type-A 2 x USB 3.2 Gen1 4 x USB 2.0 1 x RJ-45 LAN 1 x BIOS Flashback Button HD Audio Jacks |
| Internal Connectors | 1 x SPI TPM, 1 x Thermistor Cable, 1 x Power LED/Speaker 1 x RGB Header, 3 x ARGB Headers 2 x CPU Fan, 3 x Chassis Fan 1 x 24-pin ATX, 1 x 8-pin 12V, 1 x 4-pin 12V 1 x Front Audio, 2 x USB 2.0, 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen1 Type-C |

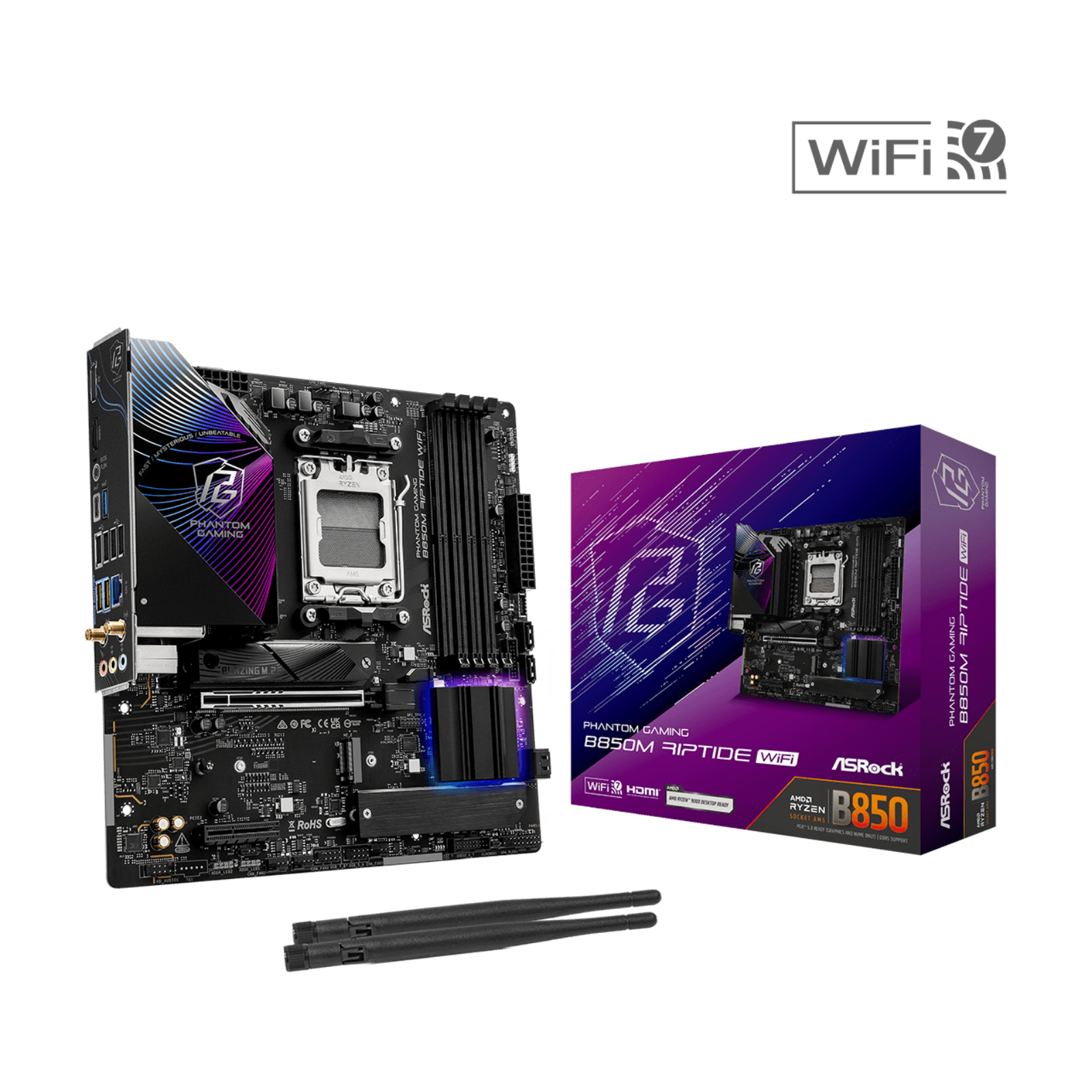

| Accessories | 2 x SATA Cables, 2 x Wi-Fi Antennas 1 x Thermistor Cable 2 x M.2 Screws, 1 x M.2 Standoff |
| RGB Lighting | Polychrome RGB, SignalRGB Sync Support |
| Special Features | BIOS Flashback, Steel Slot, Auto Driver Installer, Flexible I/O Shield |
| Package Type | Retail |
| Package Weight | 1.51 kg |
| Warranty | 3 Year Replacement |
