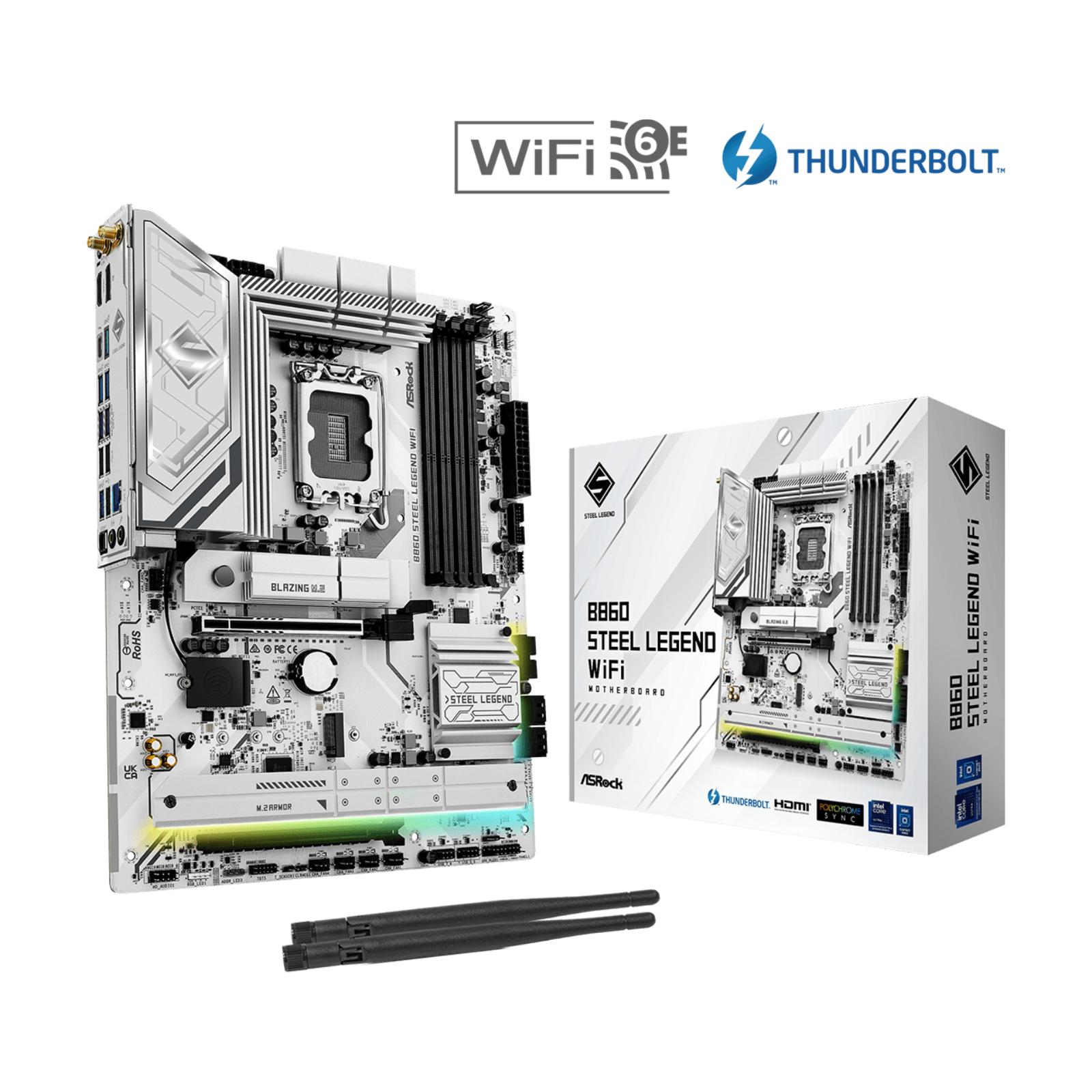

ASRock B860 Steel Legend WiFi ATX Motherboard for Intel LGA1851 CPUs
Original price was: £132.45.£122.64Current price is: £122.64. INC VAT
Out of stock
Out of stock
You Save: £9.81 (7%)
Key Features
- ATX Form Factor
- Intel B860 Chipset
- Socket 1851
- DDR5 (Max: 256GB / 4 slots)
- 2 x M.2 & 8 x USB & 4 x SATA
- HDMI and Display Port
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description
ASRock B860 Steel Legend WiFi Power, Precision, and Performance United
Built for Uncompromising Performance
The ASRock B860 Steel Legend WiFi motherboard delivers unwavering strength and cutting-edge capabilities for builders who demand both style and reliability. With support for Intel® Core™ Ultra Processors (Series 2) on the LGA 1851 socket, and a robust Intel B860 chipset, this board pushes the boundaries of performance with DDR5 memory speeds up to 8666+ MHz (OC). Designed for both gamers and power users, it ensures your system runs fast, cool, and stable even under pressure.
Next-Gen Connectivity and Expansion
Experience ultra-fast data transfers and seamless multitasking with the integrated PCIe 5.0 slot, four high-speed M.2 connectors, and blazing-fast USB ports including front-panel USB 3.2 Gen2x2 Type-C. Integrated Thunderbolt 4, Wi-Fi 6E, and Realtek 2.5G LAN provide the latest in wired and wireless networking. Whether you’re building a high-performance PC or future-proofing for years to come, the B860 Steel Legend WiFi has all the flexibility you need.
Designed with Detail and Durability in Mind
The Steel Legend series is built with premium materials and an aesthetic that blends sleek armor with high-end components. A full cover M.2 heatsink, reinforced PCIe slots, and Nahimic Audio for crystal-clear sound round out its robust feature set. This motherboard not only meets your performance needs—it also turns your rig into a visual powerhouse.
| Specification | Details |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | ATX |
| Socket | Intel 1851 |
| Chipset | Intel B860 |
| CPU Support | Intel® Core™ Ultra Processors (Series 2) |
| Memory Type | DDR5 (Dual Channel), Non-ECC, Un-buffered CUDIMM, XMP 3.0 Support |
| Memory Slots | 4 x DIMM |
| Memory Speed | Up to 8666+ MHz (OC) |
| Max Memory | 256GB |
| Integrated Graphics | Yes (CPU-dependent) |
| Graphics Outputs | 1 x HDMI, 1 x Display Port, 1 x Thunderbolt 4 |
| Expansion Slots | From CPU: 1 x PCIe 5.0 x16 From Chipset: 1 x PCIe 4.0 x16 (x2 mode) |
| Storage Interfaces | 4 x SATA III M.2 Slots: M.2_1 – PCIe 5.0 x4 (2280), M.2_2 – PCIe 4.0 x4 (2230/2242/2260/2280), M.2_3 – PCIe 4.0 x4 (2280), M.2_4 – PCIe 4.0 x2 (2280) |
| RAID Support | RAID 0, 1, 5, 10 (SATA only) |
| Wireless | Intel Wi-Fi 6E (802.11axe), Dual-Band 2×2 with 6GHz support, Bluetooth 5.3, MU-MIMO |
| LAN | Realtek 2.5G LAN |
| Audio | 7.1 CH HD Audio (Realtek ALC1220 Codec) with Nahimic |
| Rear USB Ports | 1 x Thunderbolt 4 Type-C (40Gbps), 2 x USB 3.2 Gen2 Type-A (10Gbps), 4 x USB 3.2 Gen1 Type-A (5Gbps), 3 x USB 2.0 |
| Front USB Ports | 1 x USB 3.2 Gen2x2 Type-C (20Gbps), 4 x USB 3.2 Gen1 (5Gbps), 4 x USB 2.0 |
| Back Panel I/O | 2 x Antenna Ports, 1 x HDMI, 1 x Display Port 1.4, 1 x Optical SPDIF Out, 1 x Thunderbolt 4 Type-C, 2 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1, 3 x USB 2.0 |
