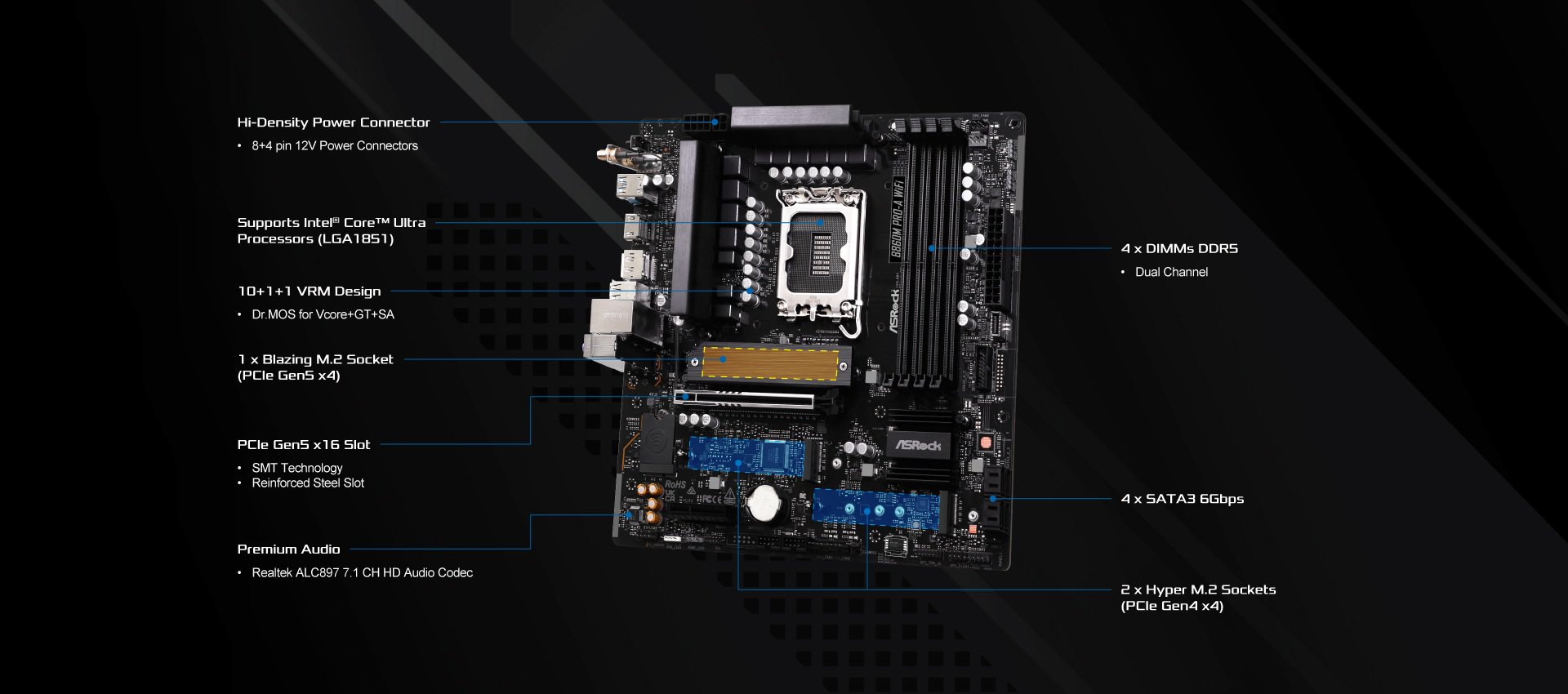

Designed for daily computing, the ASRock B860M Pro-A WiFi offers enhanced stability, efficiency, and durability with a clean aesthetic and reliable performance.
- Supports Intel® Core™ Ultra Processors (Series 2) – LGA1851
- 10+1+1+1+1 Power Phase with Dr.MOS for VCore+GT+SA
- 4 x DDR5 DIMM slots, up to 8666+ MHz (OC)
- 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4
- Display outputs: 1 x HDMI, 1 x DisplayPort
- Realtek ALC897 7.1 CH HD Audio
- 3 x M.2 slots (1x Gen5, 2x Gen4), 4 x SATA3
- Wi-Fi 6E (802.11axe) + Bluetooth 5.3
- 2.5G LAN (Realtek Dragon)
- 1 x USB 3.2 Gen2x2 Type-C (Rear), 1 x USB 3.2 Gen1 Type-C (Front)
- Polychrome RGB + SignalRGB sync support
- Reinforced PCIe 5.0 Steel Slot, BIOS Flashback, Auto Driver Installer
Description

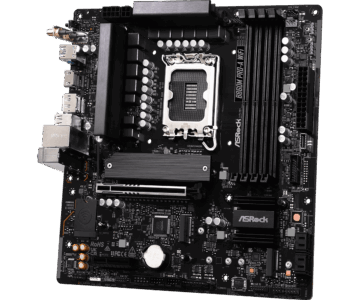

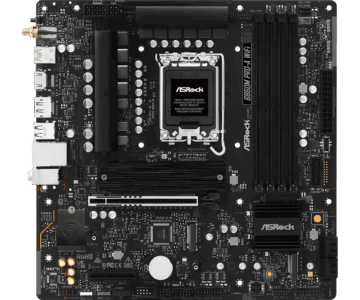

The ASRock B860M Pro-A WiFi is a Micro ATX motherboard engineered for next-gen Intel® Core™ Ultra Series 2 processors. It combines exceptional memory speeds, future-ready PCIe 5.0 support, and ultra-fast Gen5 M.2 storage. Designed with enhanced power delivery, built-in Wi-Fi 6E, RGB lighting, and advanced cooling, it strikes a balance between daily usability and enthusiast-level features.
Specifications
| Motherboard Type | Desktop |
|---|---|
| Form Factor | Micro ATX |
| Socket | Intel LGA1851 |
| Chipset | Intel B860 |
| Memory Support | DDR5 (Dual Channel, Non-ECC, Unbuffered DIMM, XMP 3.0 support) |
| Memory Slots | 4 x DIMM |
| Max Memory | 256GB |
| Memory Speed | Up to 8666+ MHz (OC) |
| Graphics Output | 1 x HDMI, 1 x DisplayPort |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4 |
| Storage | 4 x SATA III 1 x M.2 PCIe 5.0 x4 2 x M.2 PCIe 4.0 x4 |
| RAID Support | RAID 0, 1, 5, 10 (SATA) |
| LAN | 2.5G LAN (Realtek Dragon) |
| Wireless | Wi-Fi 6E (802.11axe), Dual-band 2×2 Bluetooth 5.3, MU-MIMO |
| Audio | 7.1 CH HD Audio (Realtek ALC897) |
| Rear USB | 1 x USB 3.2 Gen2x2 Type-C 3 x USB 3.2 Gen1 Type-A 2 x USB 2.0 |
| Front USB | 1 x USB 3.2 Gen1 Type-C 2 x USB 3.2 Gen1 4 x USB 2.0 |
| Back Panel I/O | 2 x Antenna Ports 1 x HDMI, 1 x DisplayPort 1.4 1 x USB 3.2 Gen2x2 Type-C 3 x USB 3.2 Gen1, 2 x USB 2.0 1 x RJ-45 LAN 1 x BIOS Flashback Button HD Audio Jacks |
| Internal I/O | 1 x SPI TPM 1 x Power LED & Speaker 1 x RGB, 3 x ARGB Headers 2 x CPU Fan, 3 x Chassis Fan, 1 x AIO Pump 1 x 24-pin ATX, 1 x 8-pin + 1 x 4-pin 12V 1 x Front Audio Header 2 x USB 2.0, 1 x USB 3.2 Gen1, 1 x USB 3.2 Gen1 Type-C |
| RGB Support | Polychrome RGB, SignalRGB Sync |
| Accessories | 1 x I/O Shield 2 x SATA Data Cables 2 x WiFi Antennas |
| Package Type | Retail |
| Warranty | 3 Year Replacement Warranty |
