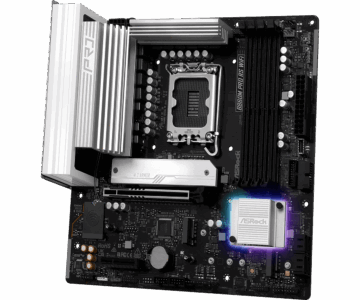

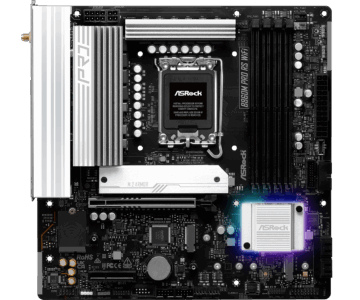

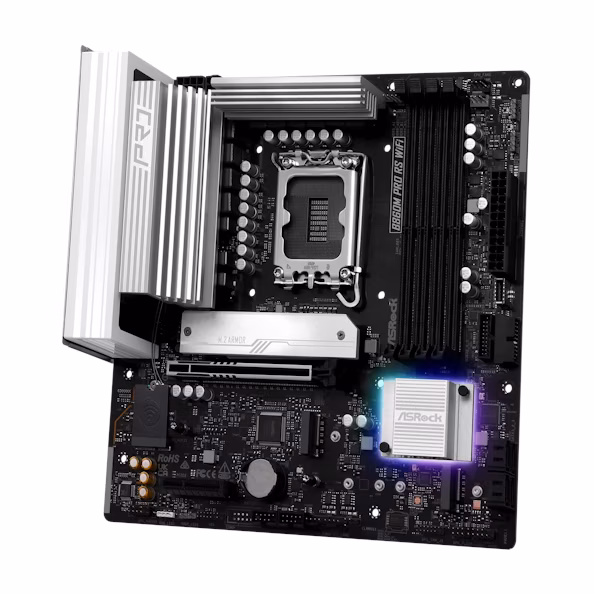

ASRock B860M Pro RS WiFi (mATX, LGA1851, DDR5, WiFi 6E)
Modern and futuristic design meets performance in the Race Sport (RS) Edition – an advanced evolution of ASRock’s popular PRO series. With high-speed connectivity, robust power delivery, and DIY-friendly features, this board is ideal for gamers, content creators, and PC enthusiasts seeking reliability and style.

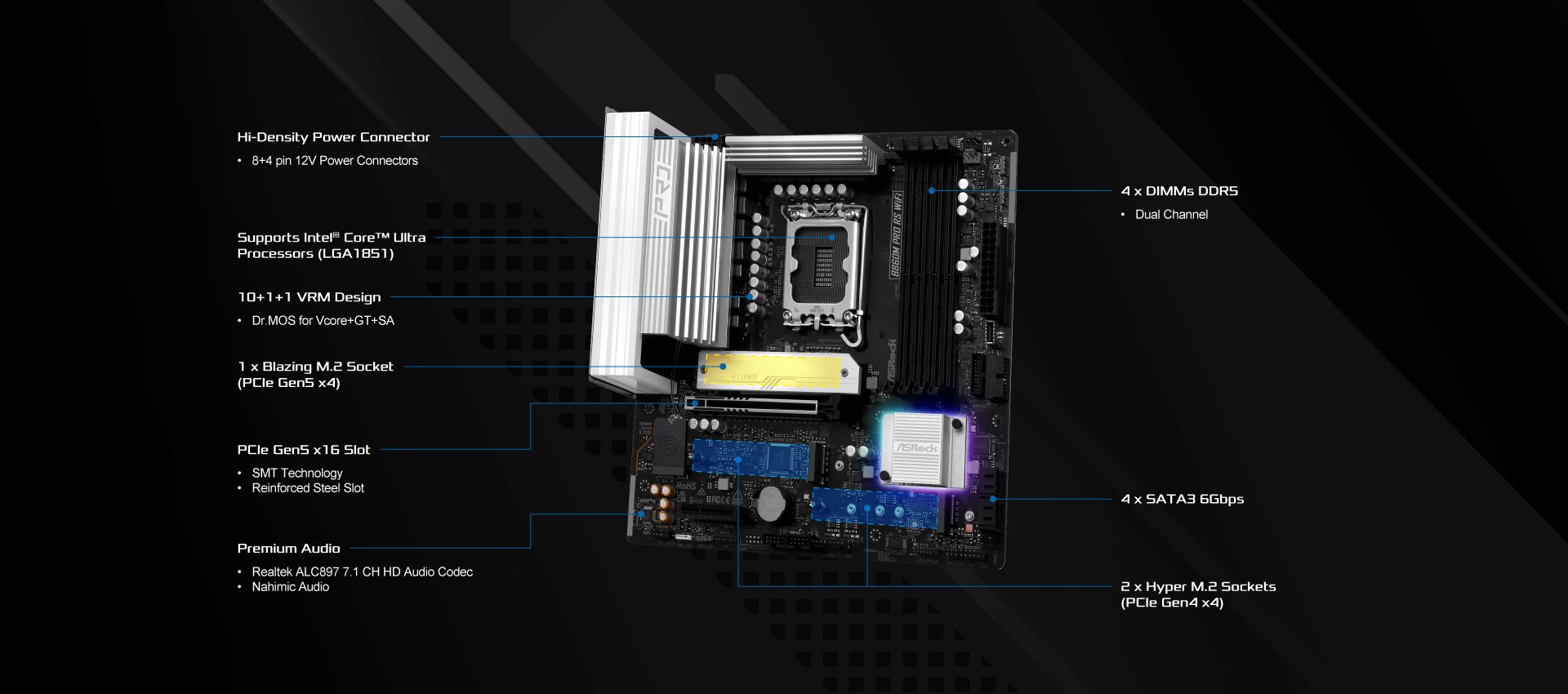

Key Features
- Supports Intel® Core™ Ultra Processors (LGA1851)
- 10+1+1+1+1 Power Phase with Dr.MOS and Hi-Density connectors
- 4 x DDR5 DIMMs, up to 8666+ MHz (OC)
- 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4
- 1 x HDMI, 1 x DisplayPort
- Realtek ALC897 7.1 CH Audio with Nahimic enhancements
- 1 x Blazing M.2 (Gen5), 2 x Hyper M.2 (Gen4)
- 4 x SATA3, RAID 0/1/5/10 support
- Rear USB-C 20Gbps + Front USB-C 5Gbps
- Wi-Fi 6E + Bluetooth 5.3, 2.5Gb LAN
- Polychrome RGB & SignalRGB compatible
- Pre-installed I/O shield, BIOS Flashback, M.2 bottom heatsink
Specifications
| Motherboard Type | Desktop |
|---|---|
| Form Factor | Micro ATX |
| Socket | Intel LGA1851 |
| Chipset | Intel B860 |
| Memory Type | DDR5 (Dual Channel, Non-ECC, Unbuffered) |
| Memory Slots | 4 x DIMM |
| Memory Speed | Up to 8666+ MHz (OC) |
| Max Memory | 256GB |
| Graphics Support | Integrated (via CPU) |
| Graphics Outputs | 1 x HDMI, 1 x DisplayPort |
| Expansion Slots | From CPU: 1 x PCIe 5.0 x16 From Chipset: 1 x PCIe 4.0 x4 |
| Storage | 4 x SATA III M.2: M.2_1 (2280) – PCIe 5.0 x4 M.2_2 (2230–2280) – PCIe 4.0 x4 M.2_3 (2280) – PCIe 4.0 x4 |
| RAID | RAID 0, 1, 5, 10 (SATA only) |
| Networking | 2.5Gb LAN (Realtek), Wi-Fi 6E (802.11axe), Bluetooth 5.3 |
| Audio | Realtek ALC897 7.1 CH HD, Nahimic Audio |
| Rear USB | 1 x USB-C 20Gbps 3 x USB-A 5Gbps 2 x USB 2.0 |
| Front USB | 1 x USB-C 5Gbps 4 x USB-A 5Gbps 4 x USB 2.0 |
| Back Panel I/O | 2 x Antenna 1 x HDMI 1 x DisplayPort 1.4 1 x USB-C 20Gbps 3 x USB-A 5Gbps 2 x USB 2.0 1 x RJ-45 LAN 1 x BIOS Flashback Button HD Audio Jacks |
| Internal I/O | 1 x SPI TPM, RGB/ARGB headers 2 x CPU Fan, 3 x Chassis Fan, 1 x AIO Pump Fan 1 x 24-pin ATX, 1 x 8-pin + 1 x 4-pin 12V 1 x Front Panel Audio, USB headers |

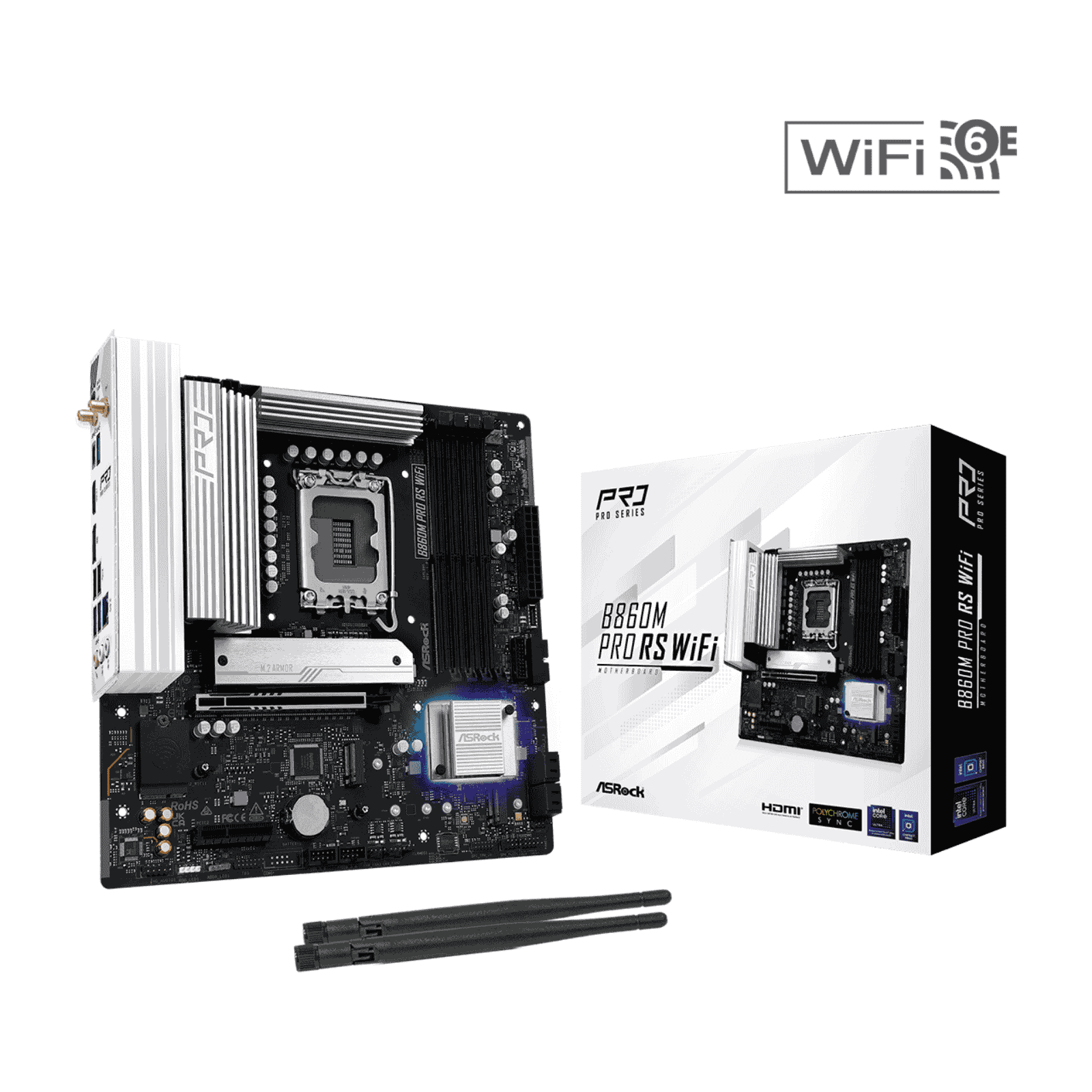

| Accessories | 2 x SATA cables, 2 x Wi-Fi antennas |
| RGB | Polychrome RGB, SignalRGB compatible |
| Package Type | Retail |
| Weight | 1.45 kg |
| Warranty | 3-Year Replacement |
