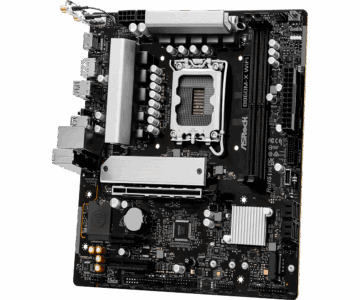

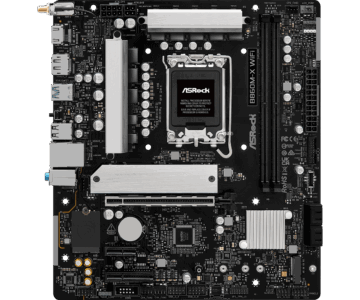

ASRock B860M-X WiFi Micro ATX Motherboard for Intel LGA1851 CPUs
Original price was: £117.57.£108.86Current price is: £108.86. INC VAT
Out of stock
Out of stock
You Save: £8.71 (7%)
Key Features
- Micro ATX Form Factor
- Intel B860 Chipset
- Socket 1851
- DDR5 (Max: 256GB / 4 slots)
- 2 x M.2 & 6 x USB & 4 x SATA
- HDMI and Display Port
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description
ASRock B860M-X WiFi Peak Performance in a Compact Design
Description:
Powerful Connectivity for Modern Workflows

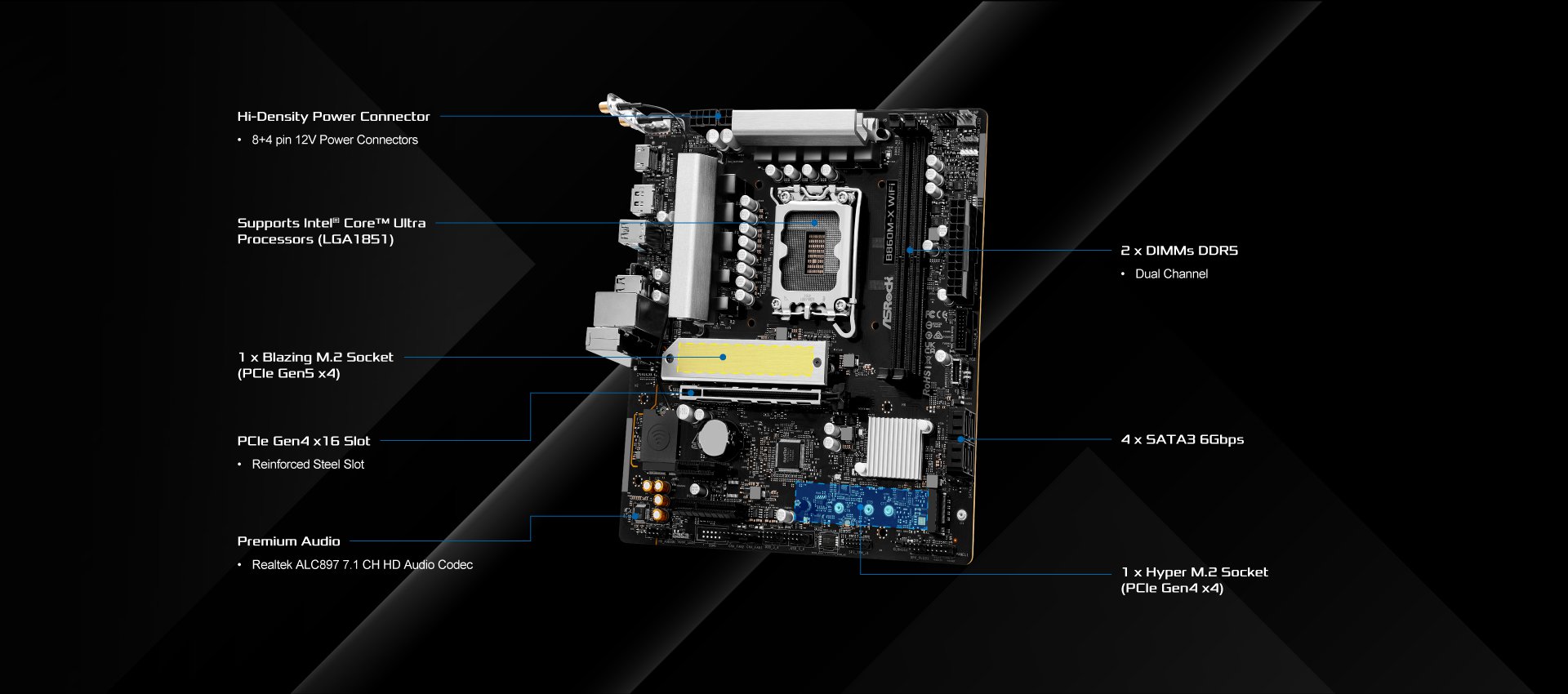

The ASRock B860M-X WiFi is engineered to meet the demands of modern multitasking and professional computing. Designed around Intel’s LGA 1851 socket and B860 chipset, it supports the latest Intel® Core™ Ultra processors and up to 128GB of high-speed DDR5 memory with XMP/EXPO profiles. Whether you’re working on complex tasks or streaming high-definition content, this micro-ATX motherboard handles it all with confidence.
Speed Meets Versatility
Connectivity is one of the standout strengths of the B860M-X WiFi. Dual M.2 slots support PCIe Gen5 and Gen4 SSDs for ultrafast storage, while built-in Wi-Fi 6E and Realtek 2.5G LAN ensure uninterrupted networking whether you’re gaming or collaborating online. It also includes advanced I/O options like USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, and comprehensive internal connectors for seamless system integration.
Style and Cooling Combined
ASRock combines premium design with smart thermal management. Aluminum heatsinks, Fan-Tastic Tuning, and PWM/DC fan support maintain cool operation even under heavy workloads. With Polychrome RGB and SignalRGB compatibility, the board also lets you personalize your setup with synchronized lighting effects, making it both a functional and visually compelling centerpiece for any build.
| Motherboard Type | Desktop |
|---|---|
| Form Factor | Micro ATX |
| Socket | Intel 1851 |
| Chipset | Intel B860 |
| CPU Support | View Supported CPUs |
| Memory Support | 2 x DDR5 DIMMs, Dual Channel, up to 9066+ MHz (OC), Max 128GB, XMP/EXPO Support |
| Graphics Outputs | 1 x HDMI, 1 x Display Port |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 4.0 x4 (Chipset), 1 x PCIe 4.0 x1 (Chipset) |
| Storage | 4 x SATA III, 1 x M.2 PCIe Gen5 x4 (CPU), 1 x M.2 PCIe Gen4 x4 (Chipset) |
| RAID | Supports RAID 0, 1, 5, 10 (SATA only) |
| LAN | Realtek 2.5G LAN |
| Wireless | Wi-Fi 6E (802.11axe), Bluetooth 5.3, Dual-band 2×2, MU-MIMO |
| Audio | 7.1 CH HD Audio (Realtek ALC897) |
| Rear USB Ports | 1 x USB 3.2 Gen2x2 Type-C, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 |
| Front USB Ports | 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 |
| Back Panel I/O | 2 x Antenna Connectors, 1 x HDMI, 1 x Display Port 1.4, 1 x USB 3.2 Gen2x2 Type-C, 3 x USB 3.2 Gen1, 2 x USB 2.0, 1 x RJ-45 LAN, 1 x BIOS Flashback Button, HD Audio Jacks |
| Internal I/O | 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x RGB Header, 2 x Addressable RGB Headers, 2 x CPU Fan Headers, 2 x Chassis Fan Headers, 1 x AIO Pump Fan Header, 1 x 24-pin ATX Power, 1 x 8-pin + 1 x 4-pin 12V Power, 1 x Front Panel Audio, 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header, 1 x USB 3.2 Gen1 Type-C Header |
| Cooling Features | Aluminum Heatsinks, PWM/DC Fan Detection, Fan-Tastic Tuning via ASRock A-Tuning |
| RGB & Lighting | Polychrome RGB & Addressable RGB Support, SignalRGB Sync Compatible |

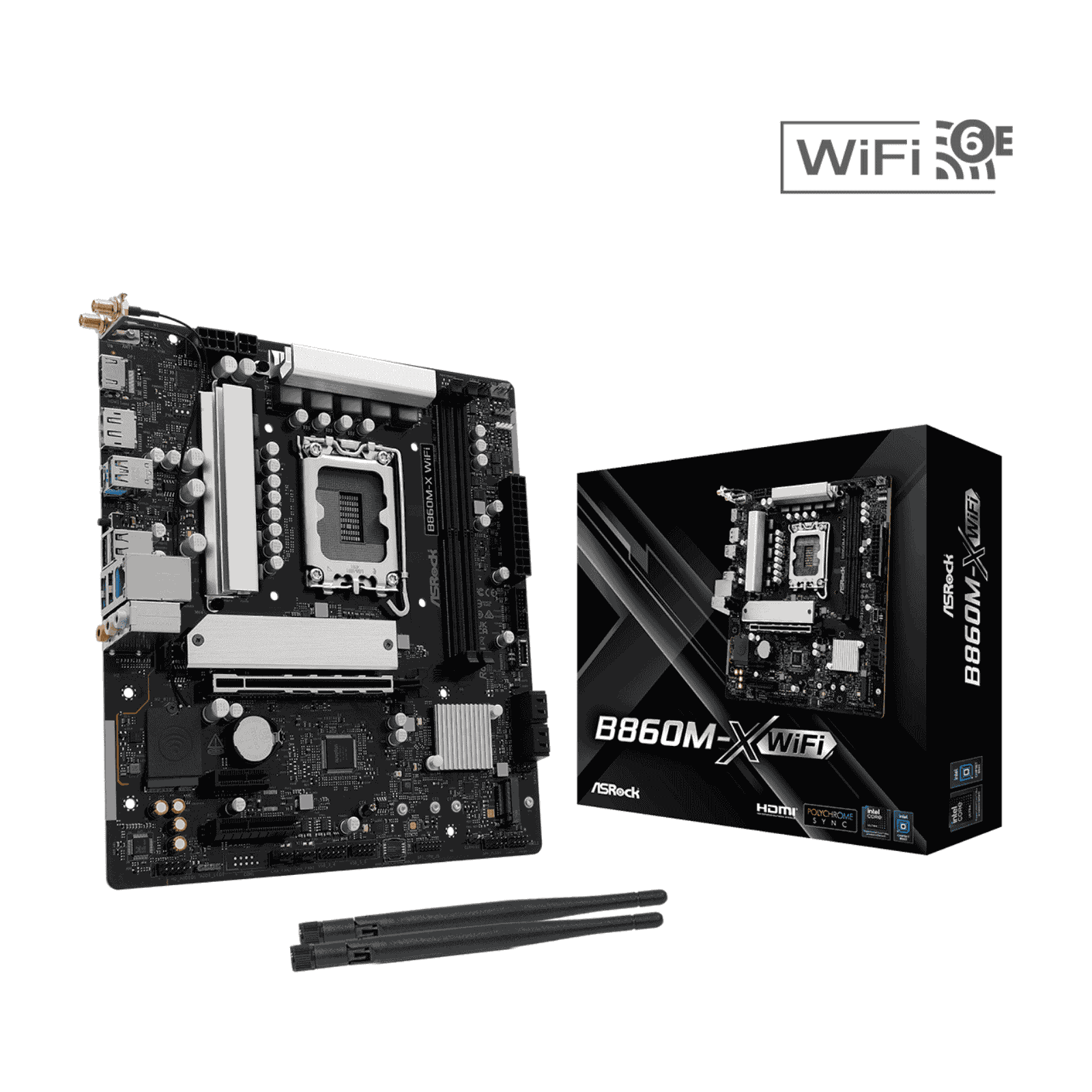

| Accessories | 1 x I/O Shield, 2 x SATA Data Cables, 2 x WiFi Antennas, 1 x M.2 Screw, 1 x M.2 Standoff |
| Package | Retail |
| Weight | 1.23 kg |
| Warranty | 3 Year Replacement Warranty |
