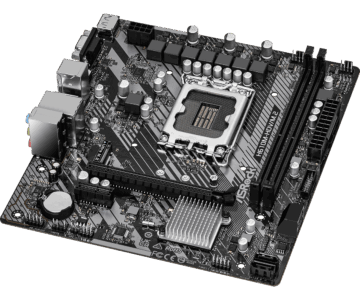

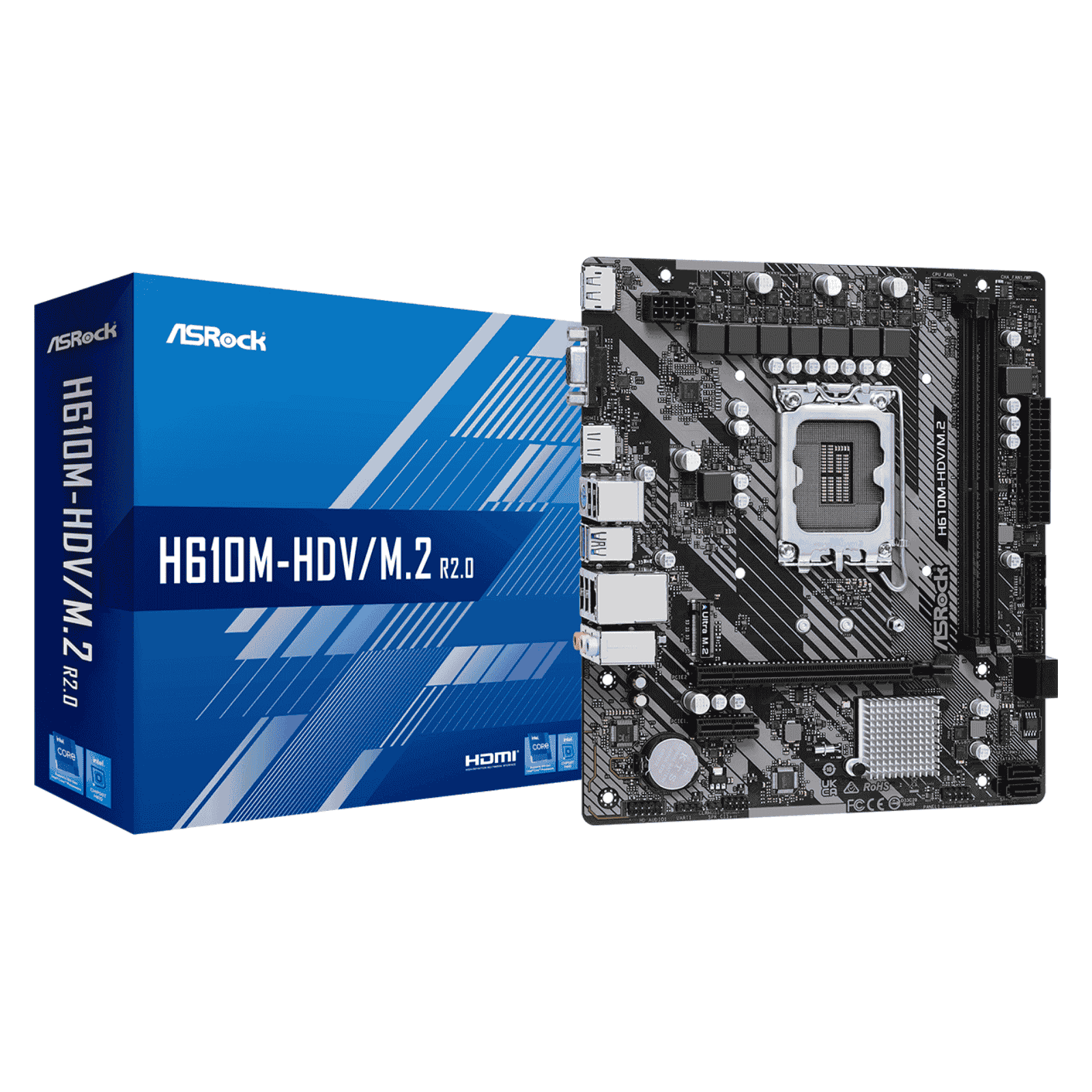

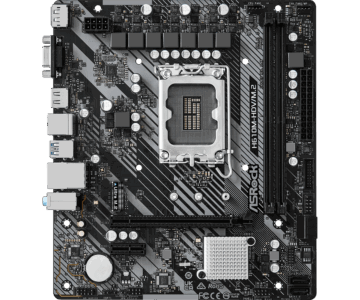

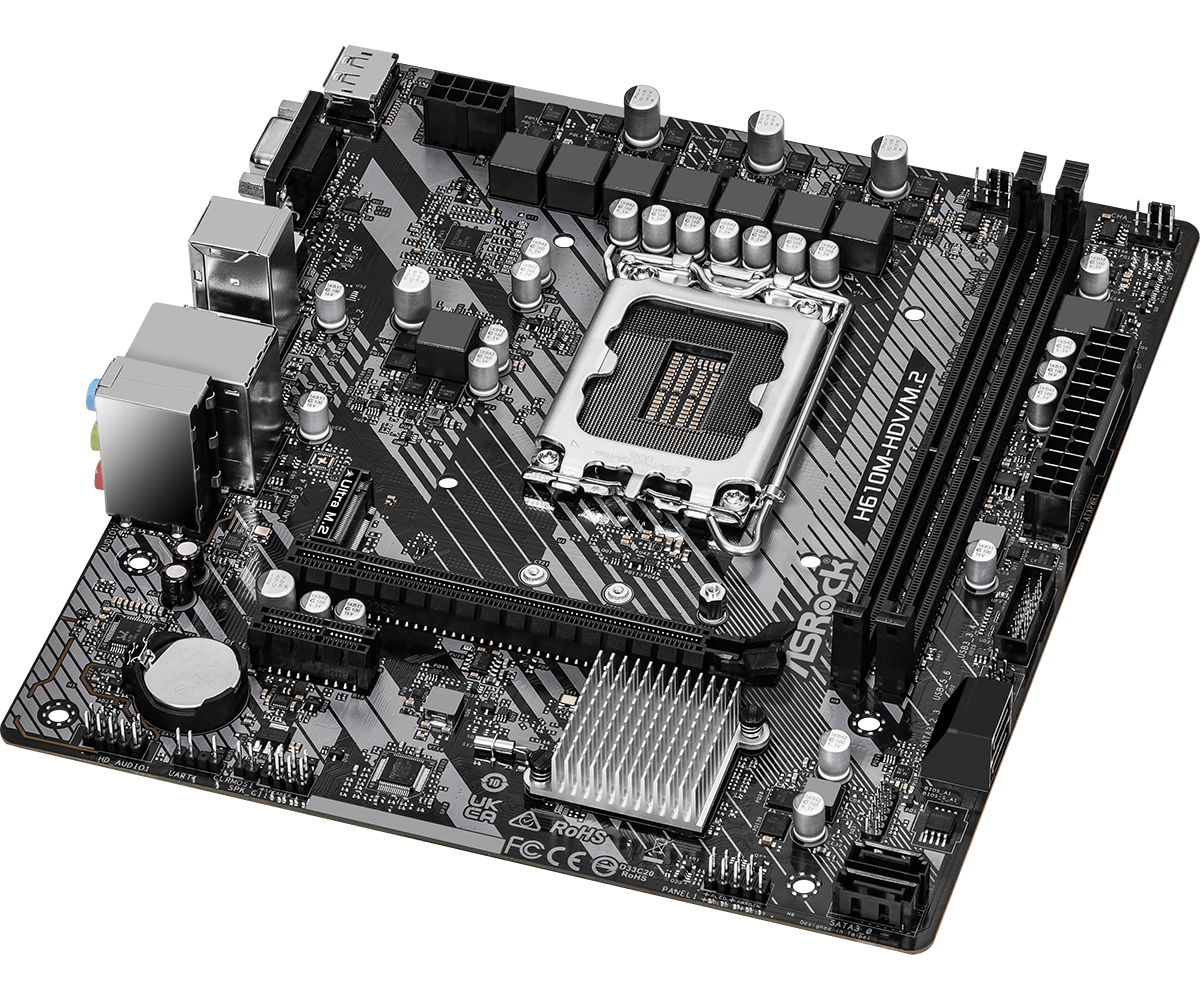

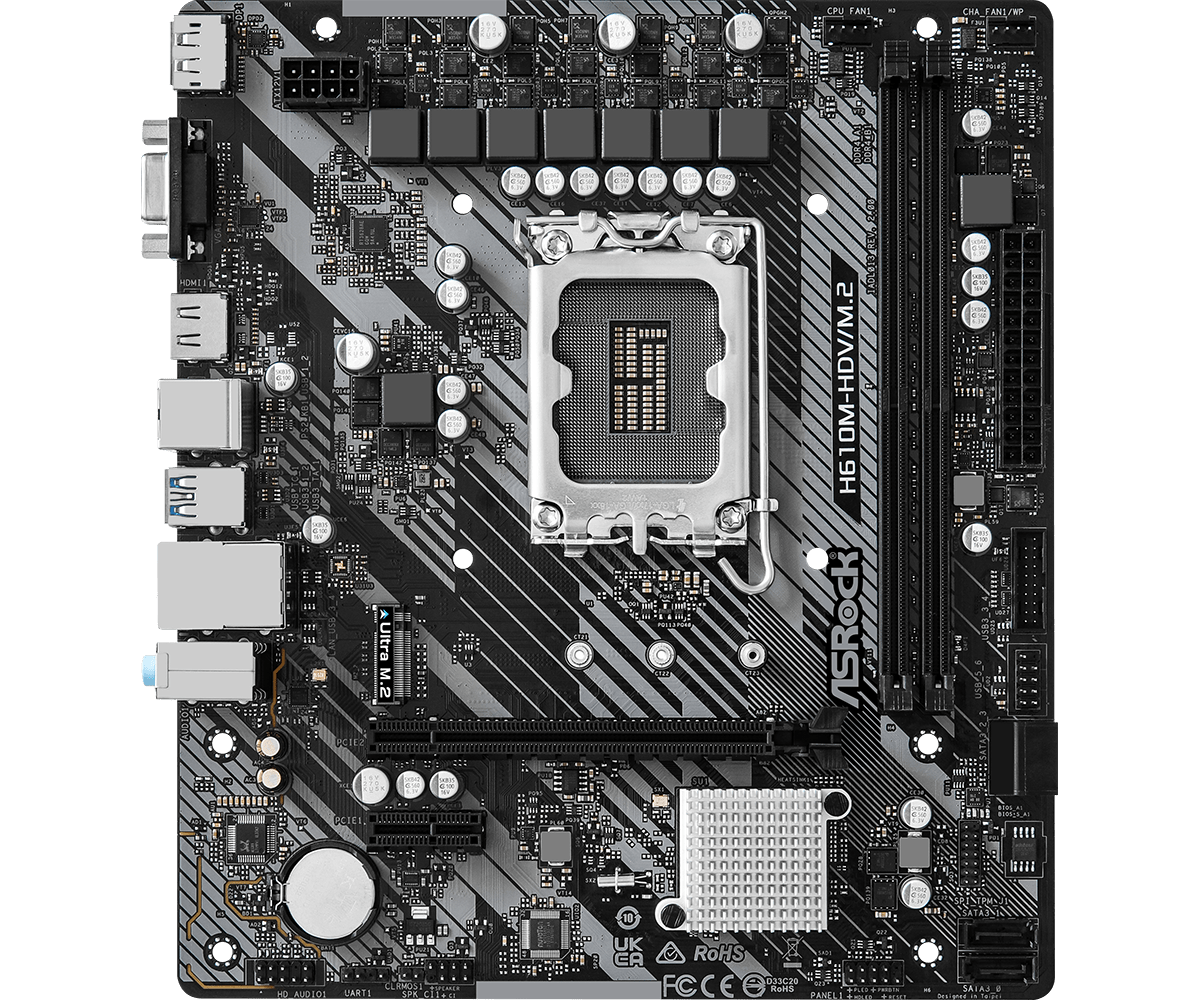

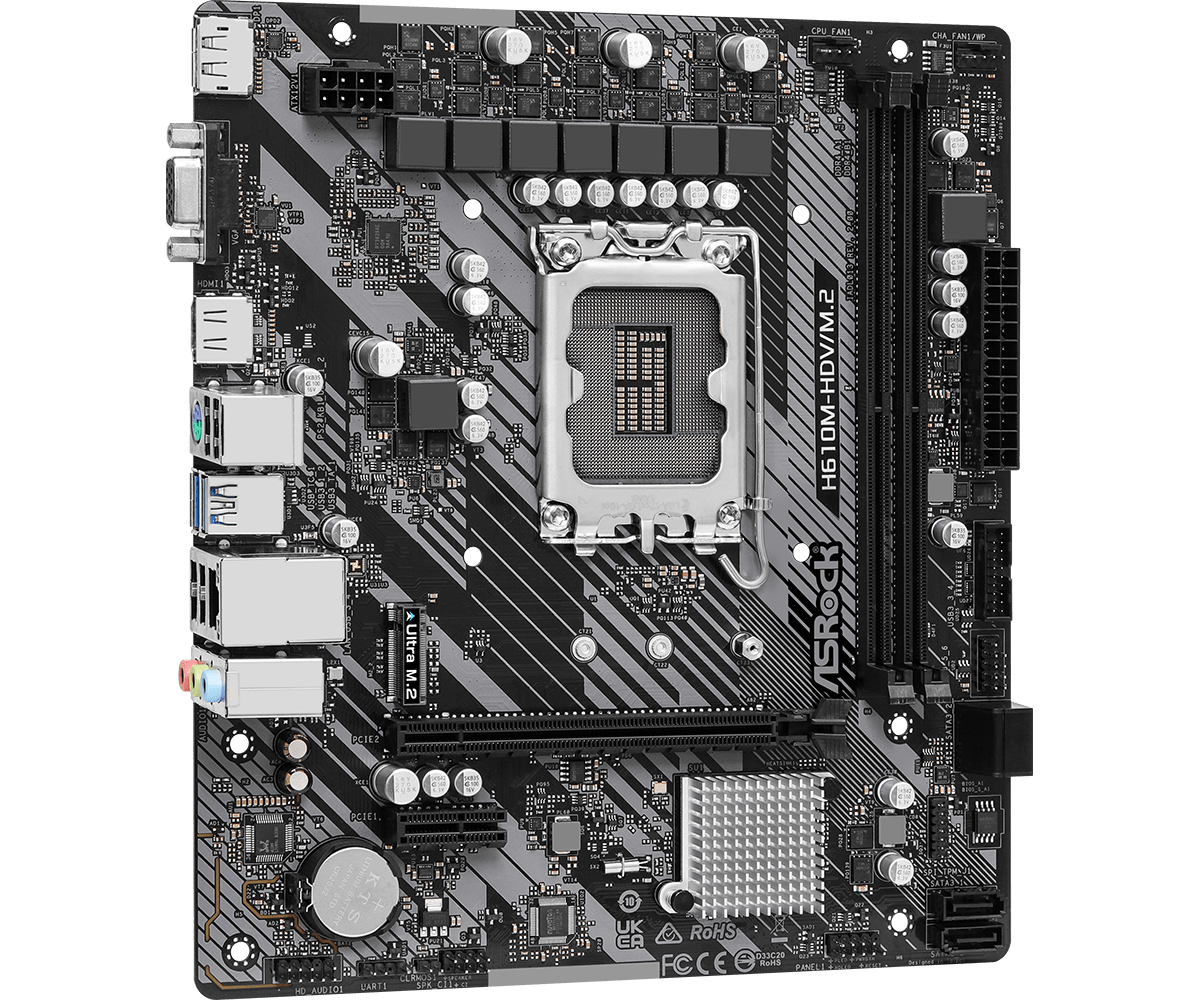

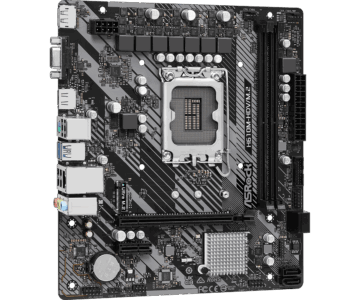

ASRock H610M-HDV/M.2 R2.0
The ASRock H610M-HDV/M.2 R2.0 is a Micro ATX motherboard designed for Intel® 14th, 13th, and 12th Gen processors. It features a 6+1+1 phase power design, triple display output (HDMI, DisplayPort, D-Sub), and supports DDR4 memory up to 3200MHz. With an Ultra M.2 slot (PCIe Gen3 x4/SATA), Realtek Gigabit LAN, and optional Wi-Fi via M.2 (Key E), it provides modern expandability in a compact form. Premium features like Digi Power, Full Spike Protection, High-Density Glass Fabric PCB, and Sapphire Black PCB ensure enhanced reliability and durability.
Specifications
| Motherboard Type | Desktop |
|---|---|
| Form Factor | Micro ATX |
| Socket | Intel LGA 1700 |
| Chipset | Intel H610 |
| CPU Support | View Compatible CPUs |
| RAM Technology | DDR4 (Dual Channel) |
| RAM Slots | 2 x DIMM |
| RAM Speed | Up to 3200 MHz |
| Max Memory | 64GB |
| Graphics | Integrated (CPU-dependent) |
| Graphics Ports | 1 x VGA, 1 x HDMI, 1 x DisplayPort |
| PCIe Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| Storage | 4 x SATA III, 1 x M.2 (PCIe Gen3 x4 / SATA) |
| Wireless | M.2 (Key E) slot for optional Wi-Fi |
| LAN | Realtek Gigabit LAN |
| Audio | 7.1 CH HD Audio (Realtek ALC897) |
| USB Ports | Rear: 2 x USB 3.2 Gen1, 4 x USB 2.0 Front: 2 x USB 3.2 Gen1, 2 x USB 2.0 |
| Back Panel I/O | 1 x PS/2 Keyboard/Mouse 1 x D-Sub 1 x HDMI 1 x DisplayPort 1.4 2 x USB 3.2 Gen1 4 x USB 2.0 1 x RJ-45 LAN HD Audio Jacks |
| Internal I/O | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan, 1 x Chassis/Water Pump Fan 1 x 24-pin ATX, 1 x 8-pin 12V 1 x Front Audio Header 1 x USB 2.0 Header 1 x USB 3.2 Gen1 Header |
| Accessories | Quick Installation Guide Support CD I/O Shield 2 x SATA Data Cables 2 x Screws for M.2 Sockets |
| Additional Features | Digi Power, Premium Power Choke Sapphire Black PCB, Full Spike Protection High Density Glass Fabric PCB HDMI 4K Support, Triple Graphics Output |
| Package Type | Retail |
| Package Weight | 0.900 kg |
| Warranty | 2 Year Replacement Warranty |
