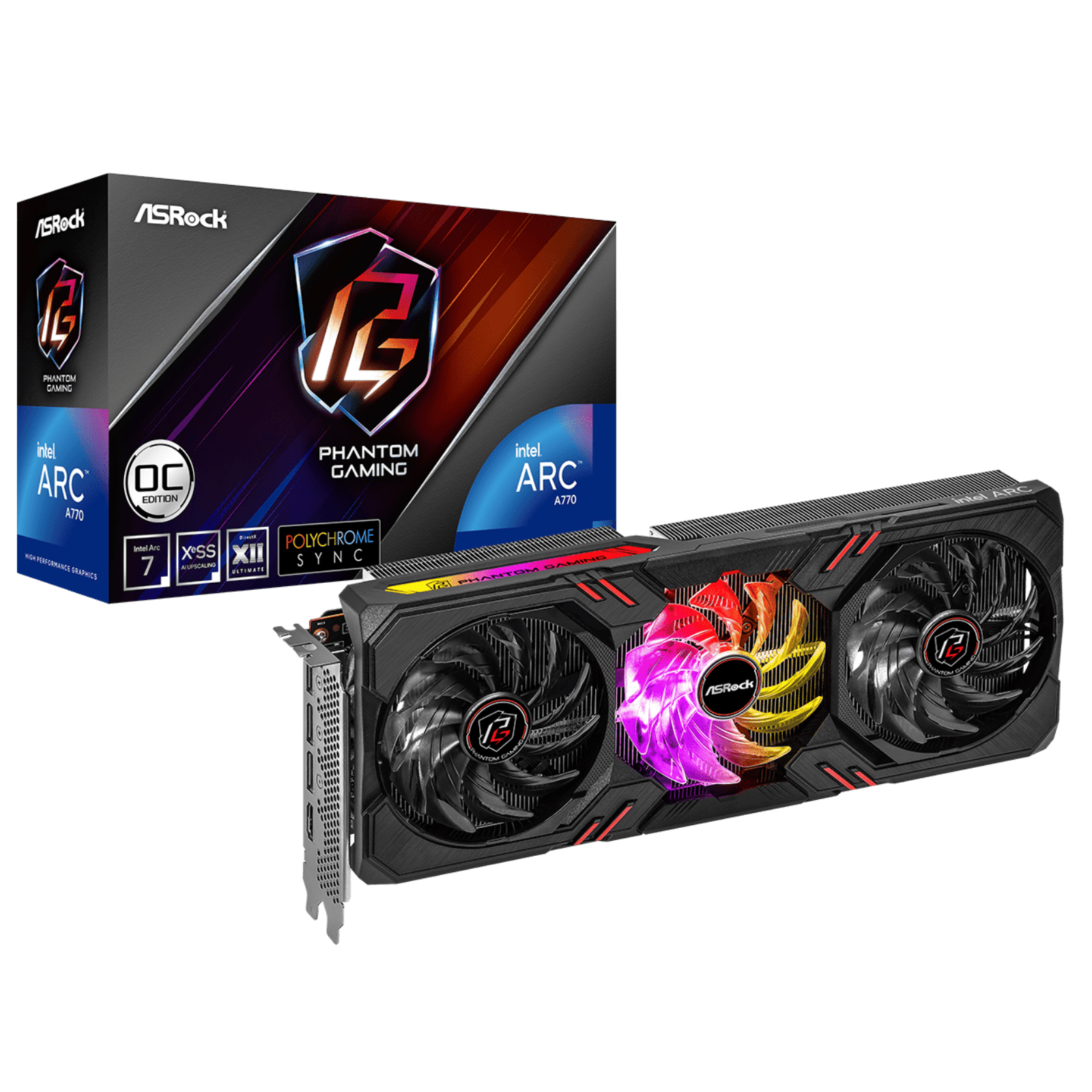

Intel Arc A770 Phantom Gaming 16GB OC
- GPU Clock: 2200 MHz
- Memory Clock: 17.5 Gbps
- Intel® Arc™ A770 Graphics
- 16GB 256-bit GDDR6
- Intel® Xe HPG Microarchitecture
- Intel® Xe Super Sampling (XeSS)
- DirectX® 12 Ultimate
- 2 x 8-pin Power Connectors
- 3 x DisplayPort™ 2.0 / 1 x HDMI™ 2.1
- Polychrome SYNC
- Phantom Gaming 3X Cooling System
- Stylish Metal Backplate
- Striped Axial Fan
- Ultra-fit Heatpipe
- 0dB Silent Cooling
- Super Alloy Graphics Card
OC Edition
Great Performance.
Delivers great performance which is higher than reference cards based on the solid hardware design.
Phantom Gaming 3X Cooling System
For Cool and Silent.
Crafted for the best balance between the thermal efficiency and silence by all the details.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each other and the GPU baseplate for optimized heat dissipation.
Copper Base
Maximize GPU Contact Area.
With a premium copper base heatsink design, the direct contact area to the GPU is maximized for effective thermal transfer.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolates the gap between the pipe and stacked fins, enhancing heat dissipation.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminates gaps in the contact area to maximize heat transfer and efficiency.
Premium Thermal Pad
Better Heat Transfer.
Helps to transfer heat from components to the heatsink, improving thermal dissipation.
Precise Screw Torque
Optimized Mounting Pressure.
Ensures optimal cooler mounting pressure, improving thermal efficiency while preventing GPU die damage.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when temperatures rise and stops when temperatures drop, ensuring complete silence.
Polychrome SYNC
Create Your Own Unique Colorful Light Effects.
With ARGB LEDs, create colorful light effects that can be synchronized with ASRock motherboards supporting Polychrome SYNC.
Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending, it also helps enhance cooling with premium thermal pads equipped at the backside.
Super Alloy Graphics Card
SPS (Smart Power Stage)
Features the latest SPS (Smart Power Stage) technology for smoother and neater power delivery, enhancing performance and OC capability.
Premium 100A Power Choke
Enhances Vcore voltage with up to three times better saturation current compared to traditional chokes.
2oz Copper PCB
Delivers lower temperature and higher energy efficiency for overclocking, using high-quality copper PCB materials.
Matte Black PCB
Features a new matte black and copper color scheme for a prestigious and sleek look.
High Density Glass Fabric PCB
Reduces gaps between PCB layers, protecting the graphics card from electrical shorts due to humidity.
8K Resolution Support
Supports 8K video output for the ultimate visual experience.
Supercharge Your Gaming
Enhances gaming with AI-powered XeSS upscaling and full support for DirectX 12 Ultimate.
Experience Immersive High-Performance Gaming
Intel® Arc™ Control offers refined gaming controls, game optimizations, and seamless driver updates.
Xe Super Sampling (XeSS)
Enhances gaming performance with AI-driven upscaling technology, delivering high image fidelity.
DirectX* 12 Ultimate Support
Fully compatible with cutting-edge graphics technologies like ray tracing, mesh shading, and sampler feedback for next-gen gaming.
Unleash Your Creativity
Industry-first AV1 hardware encoding and Intel® Xe Media Engine provide advanced content creation capabilities.
Take Center Stage
Broadcast with ease, using Intel® Arc™ Control’s advanced streaming technologies.
Elevate Your Gaming Experience
Refine gaming with intuitive Intel® Arc™ Control software, ensuring smoother experiences and optimized games.
Maximize Your Intel® Platform
Enhance gaming, streaming, and creative experiences with Intel® Deep Link Technology by pairing Intel® Core™ processors with Intel® Arc™ graphics.
Specifications
| Chipset Manufacturer | Intel |
|---|---|
| Interface | PCI Express 4.0 |
| Graphics Chipset | Intel Arc A770 |
| Memory Size | 16GB |
| Memory Type | DDR6 |
| Memory Interface | 256-bit |
| Core Clock | 2200 MHz |
| Memory Clock | 17.5 Gbps |
| Intel XMX Engines | 512 |
| Outputs | 1 x HDMI 2.1, 3 x DisplayPort 2.0 up to UHBR 10 |
| HDCP Support | Yes |
| Resolution | Digital Max Resolution: 7680 x 4320 |
| DirectX Support | DirectX 12 Ultimate |
| Max Display Support | 4 |
| Cooling | Striped Axial Fan, Ultra-fit Heatpipe, 0dB Silent Cooling, Copper Base, High-density Metal Welding |
| PSU Requirements | 700W or greater recommended |
| Connectors Required | 2 x 8-pin power |
| Software | Intel Arc Control software |
| Additional Features | See Overview |
| Dimensions | 305 x 131 x 56 mm |
| Slot Size | 2.8 Slot |
| Accessories | 1 x Quick Installation Guide |
| Package Type | Retail |
| Lighting Effects | Yes |
| HDMI | Yes (HDMI) |
| DisplayPort | Yes (DisplayPort) |
| Package Weight | 1.7800 kg |
| Warranty | 2 Year Replacement Warranty |
