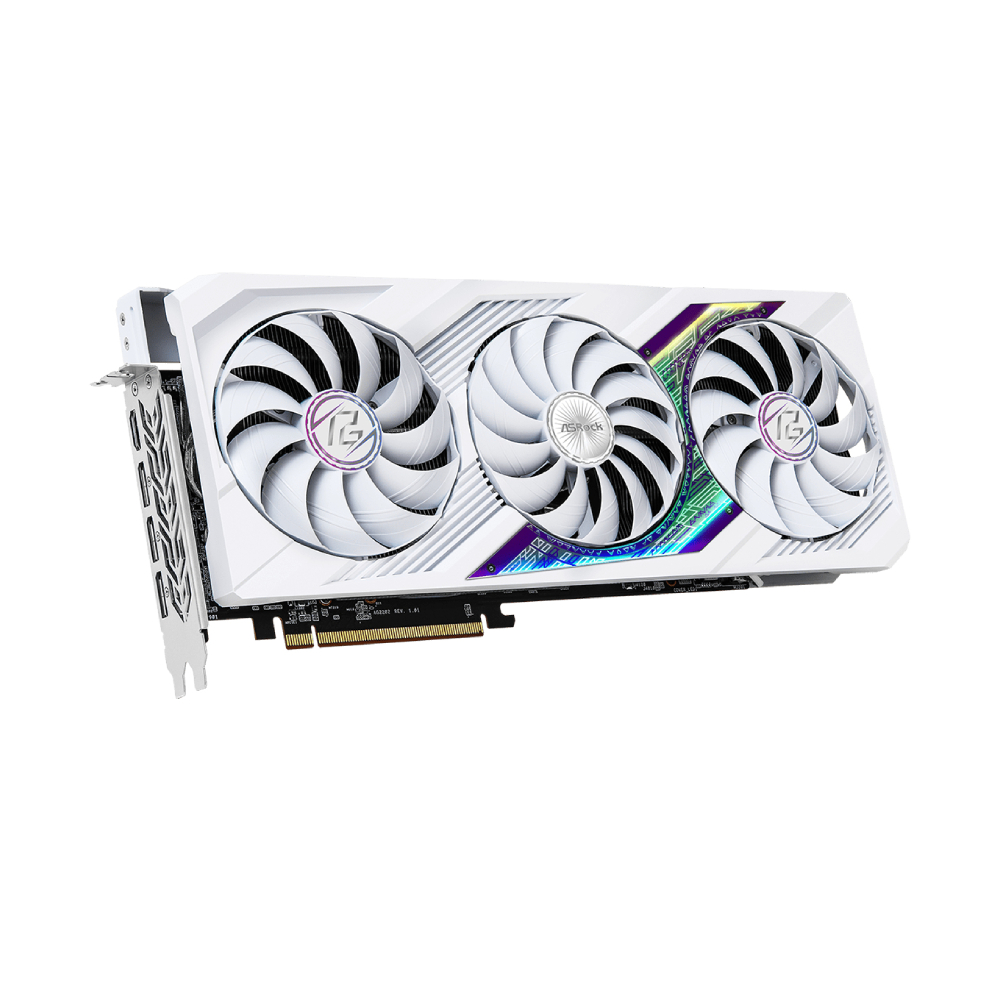

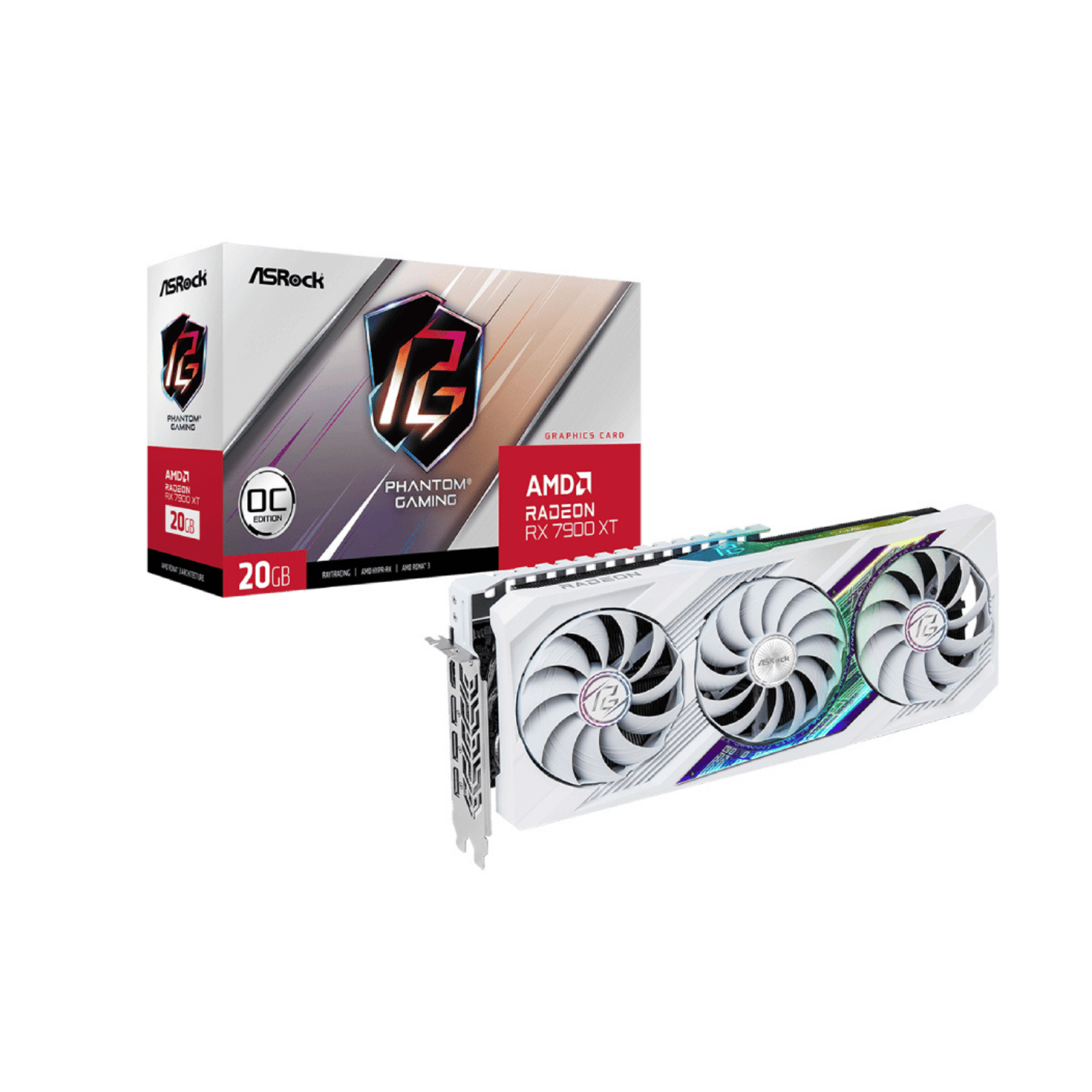

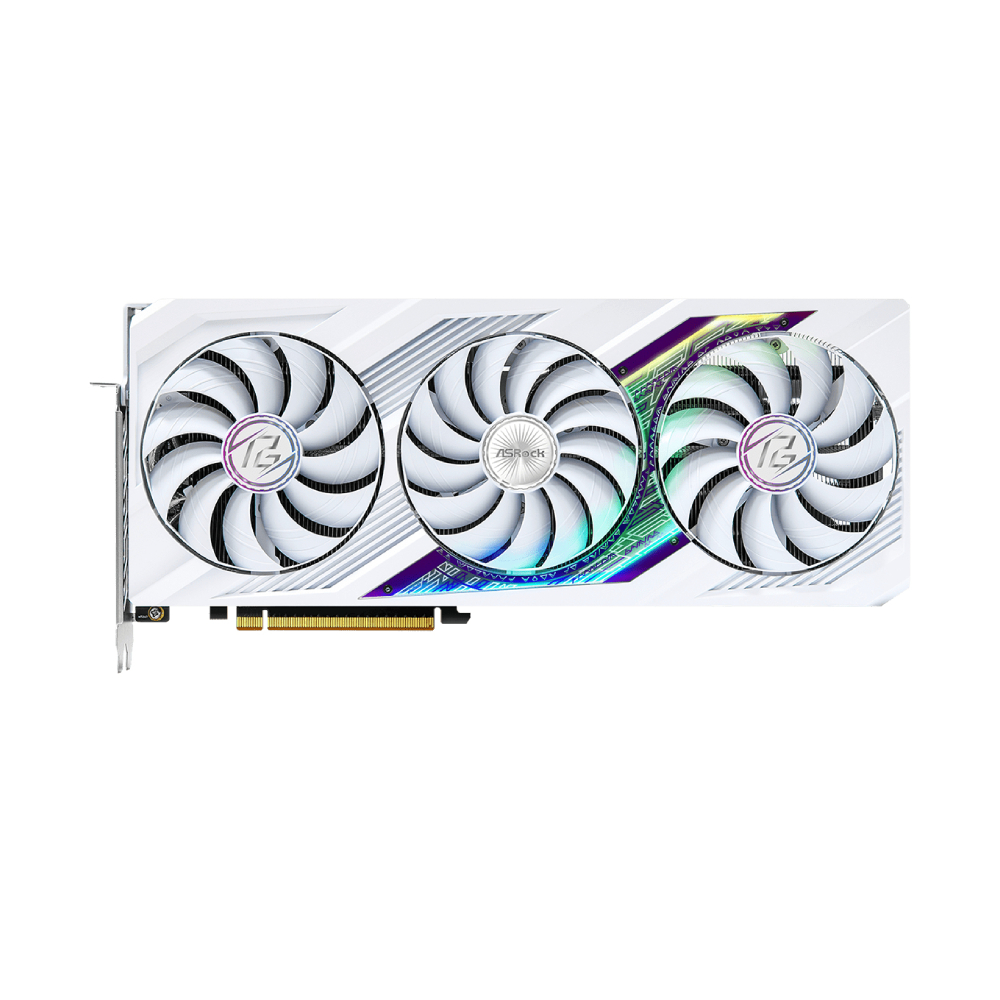

Asrock RX 7900 XT Phantom Gaming 20GB DDR6 OC RGB Graphics Card

ASRock RX 7900 XT Phantom Gaming 20GB OC Graphics Card

Specifications:

• GPU: AMD Radeon™ RX 7900 XT

• Memory: 20GB GDDR6 on 320-bit Memory Bus

• Compute Units: 84 AMD RDNA™ 3 (with RT & AI Accelerators)

• AMD Infinity Cache™: 80MB

• Core Clock:

  • Boost Clock: Up to 2450 MHz / 20 Gbps

  • Game Clock: 2075 MHz / 20 Gbps

• Interface: PCI® Express 4.0

• Power Connectors: 2 x 8-pin

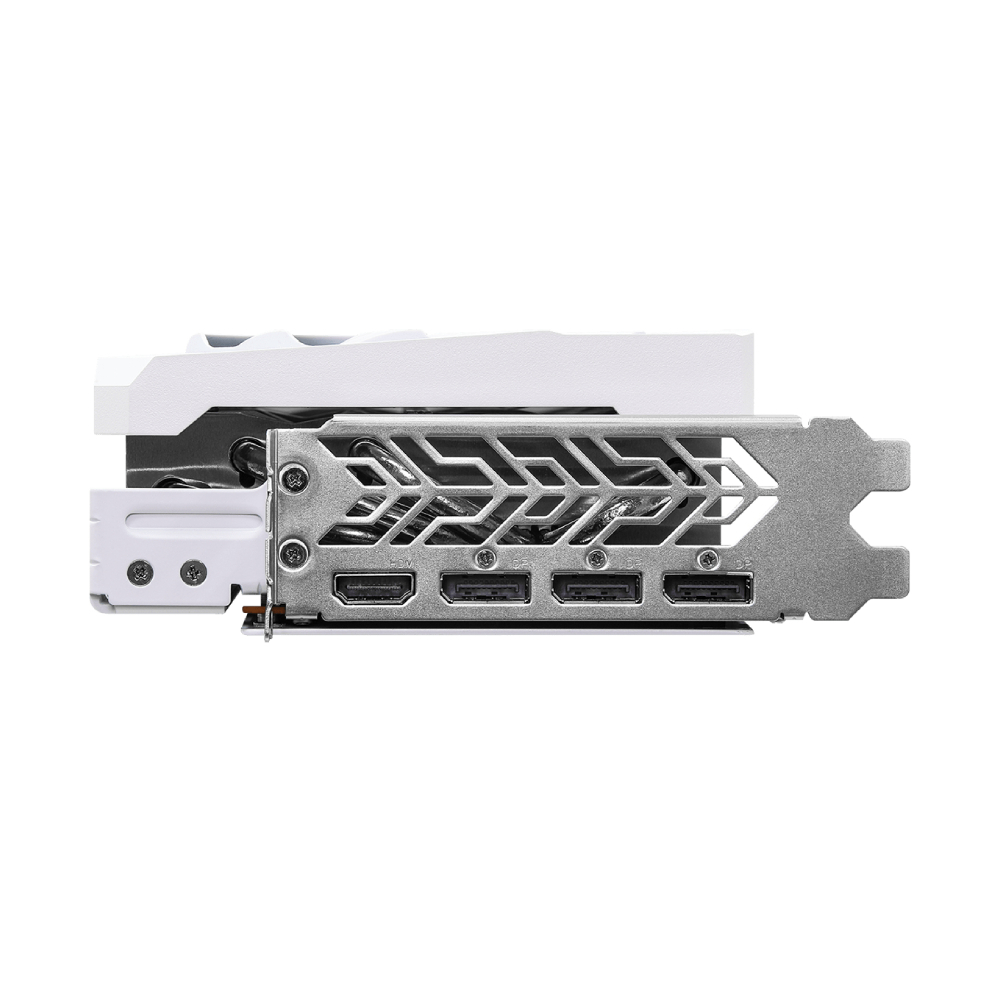

• Display Outputs: 3 x DisplayPort™ 2.1 / 1 x HDMI™ 2.1

• Lighting: Polychrome SYNC ARGB

• Cooling: Phantom Gaming 3X Cooling System

• Fans: Striped Ring Fan with Reverse Spin

• Features: Reinforced Metal Frame, Stylish Metal Backplate, 0dB Silent Cooling

• Build Quality: Super Alloy Graphics Components

Advanced Cooling System

Reverse Spin Technology
The central fan spins in the opposite direction to minimize turbulence and improve airflow across the heatsink.

Phantom Gaming 3X Cooling
Engineered for optimal thermal efficiency with minimal noise output.

Striped Ring Fan
Specially designed fan blades for enhanced lateral intake and superior airflow.

Air Deflecting Fin
V-shaped cutting fins and vents streamline airflow for faster, more effective cooling.

Ultra-Fit Heatpipes
Consolidated heatpipes maximize contact with the GPU baseplate for improved heat dissipation.

Nickel-Plated Copper Base
Premium copper heatsink maximizes GPU contact area for more efficient thermal transfer.

High-Density Metal Welding
Seals gaps between fins and heatpipes to further improve thermal efficiency.

Nano Thermal Paste & Premium Thermal Pads
Optimized for superior thermal conductivity, ensuring the best possible cooling performance.

Precise Screw Torque
Meticulous assembly with optimized screw tension for perfect mounting pressure.

0dB Silent Cooling
Fans only activate when temperatures rise, ensuring silent operation during lighter tasks.

Design & Durability

Polychrome SYNC Lighting
Customize your lighting effects and synchronize them with compatible ASRock motherboards.

LED On/Off Switch
Toggle the ARGB lighting at your convenience.

Reinforced Metal Frame
Strengthens structural integrity, preventing PCB bending.

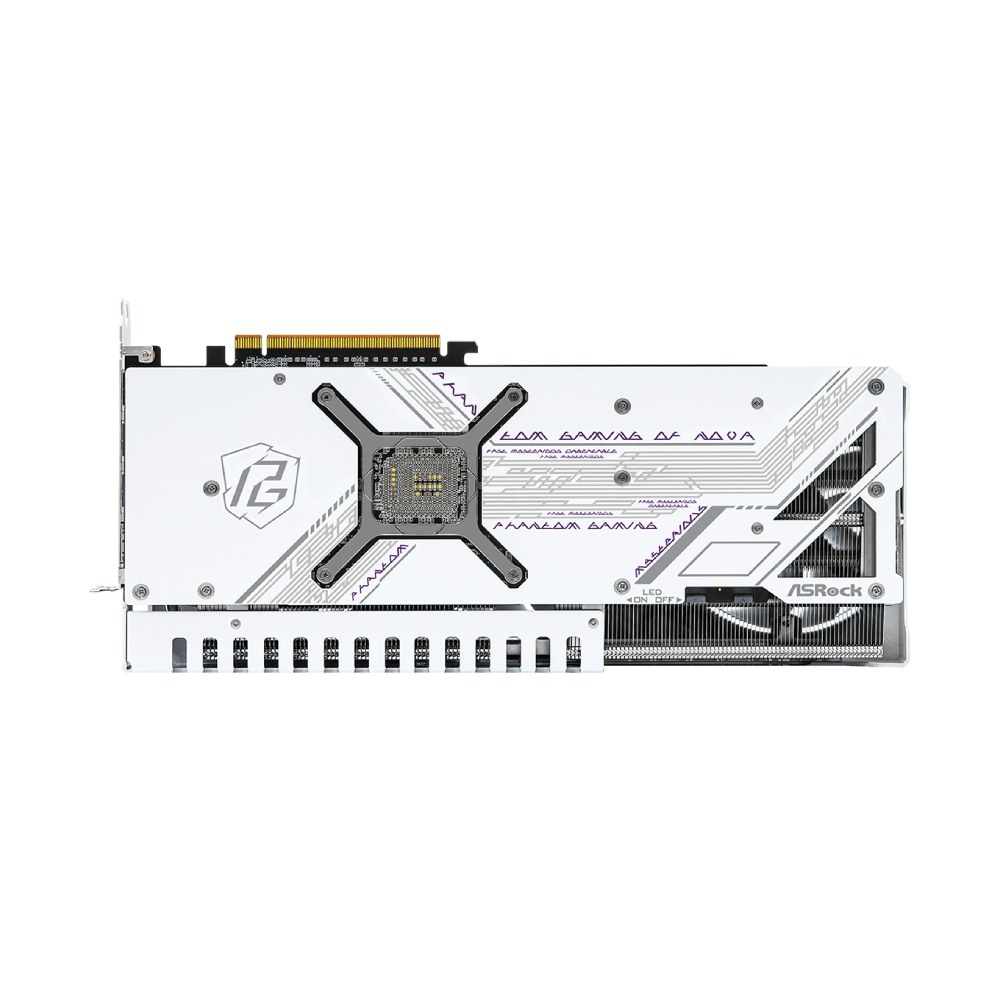

Stylish Metal Backplate
Provides rigidity and contributes to cooling with thermal pads, complemented by a premium visual finish.

Premium Components

• Japanese SP-Caps: High-conductivity capacitors with low ESR for better stability, reliability, and heat resistance.

• Smart Power Stage (SPS): Monitors current and temperature of each power phase for enhanced overclocking stability.

• Premium 100A Power Choke: Supports higher saturation currents, improving voltage stability for the GPU.

• 2oz Copper PCB: Ensures improved energy efficiency and lower temperatures.

• Matte Black PCB: Elegant black design with premium component integration.

• High-Density Glass Fabric PCB: Reduces internal gaps to protect against short circuits caused by humidity.

Software & Features

ASRock Tweak 2.0
Intuitive utility for performance tuning and intelligent fan control.

8K Resolution Support
Supports both 4K and next-generation 8K visuals for the ultimate gaming experience.

PCI® Express 4.0 Ready
Delivers up to twice the bandwidth of PCIe® 3.0, future-proofing your setup for next-gen gaming.
