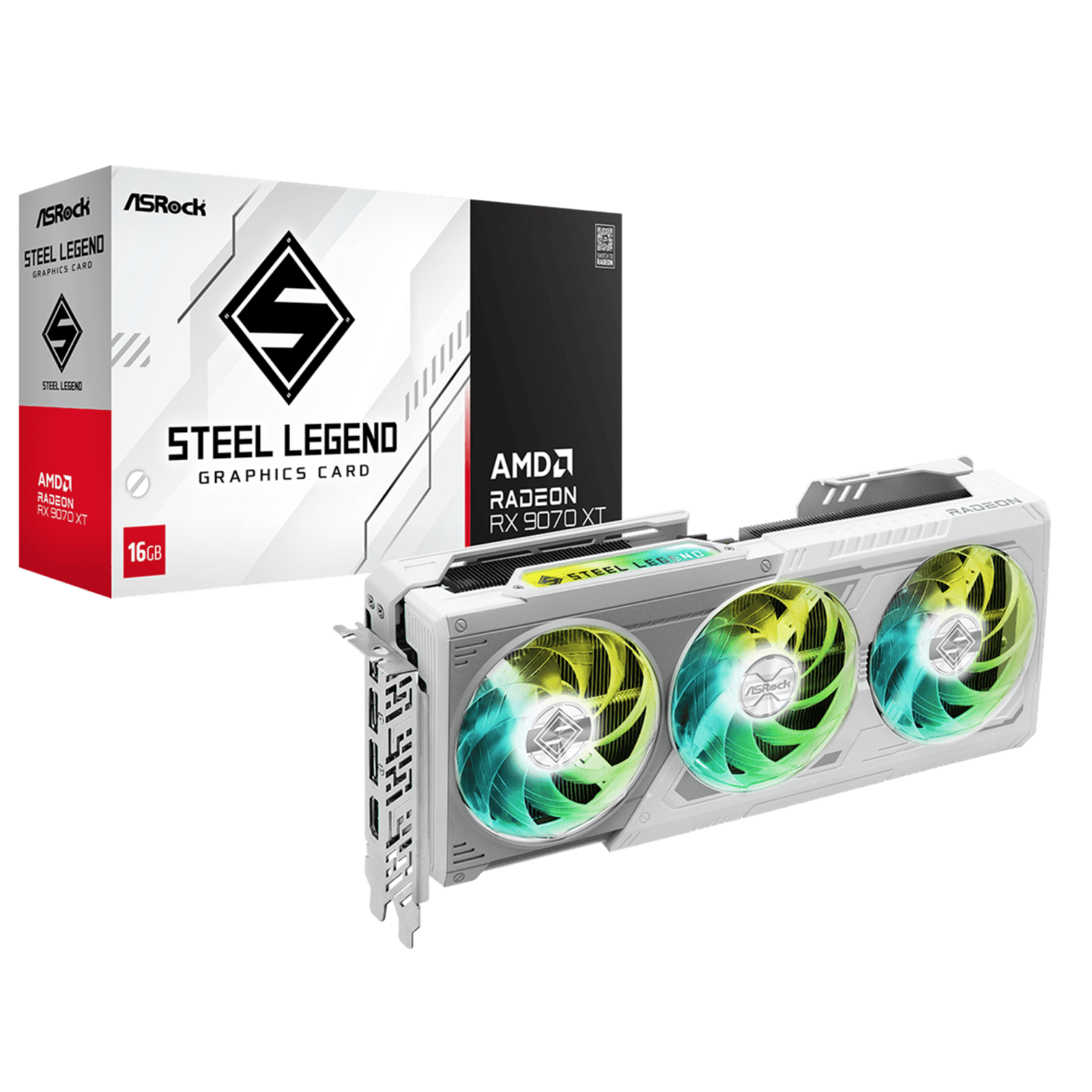

Asrock RX9070 XT Steel Legend 16GB Gaming Graphics Card White

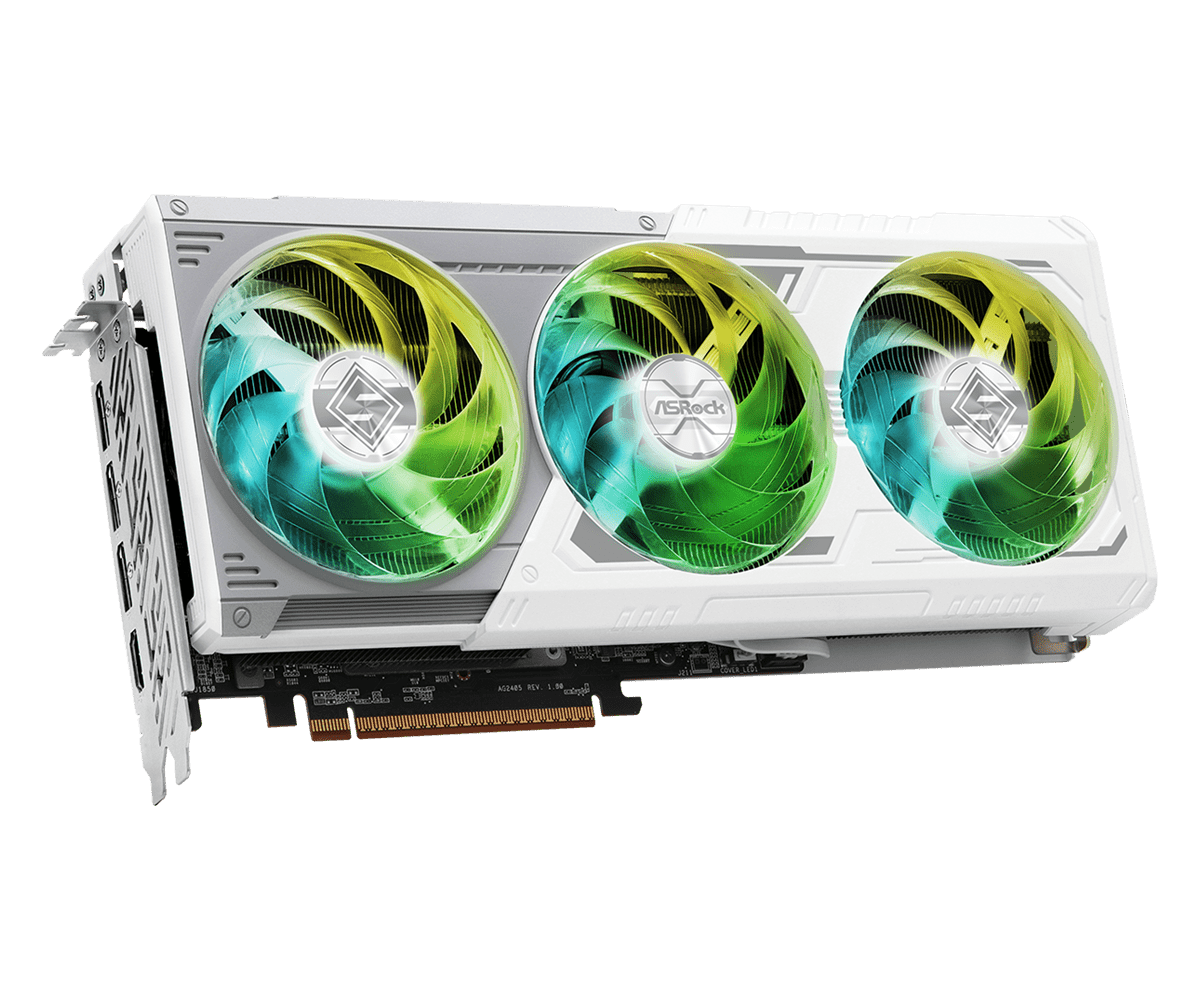

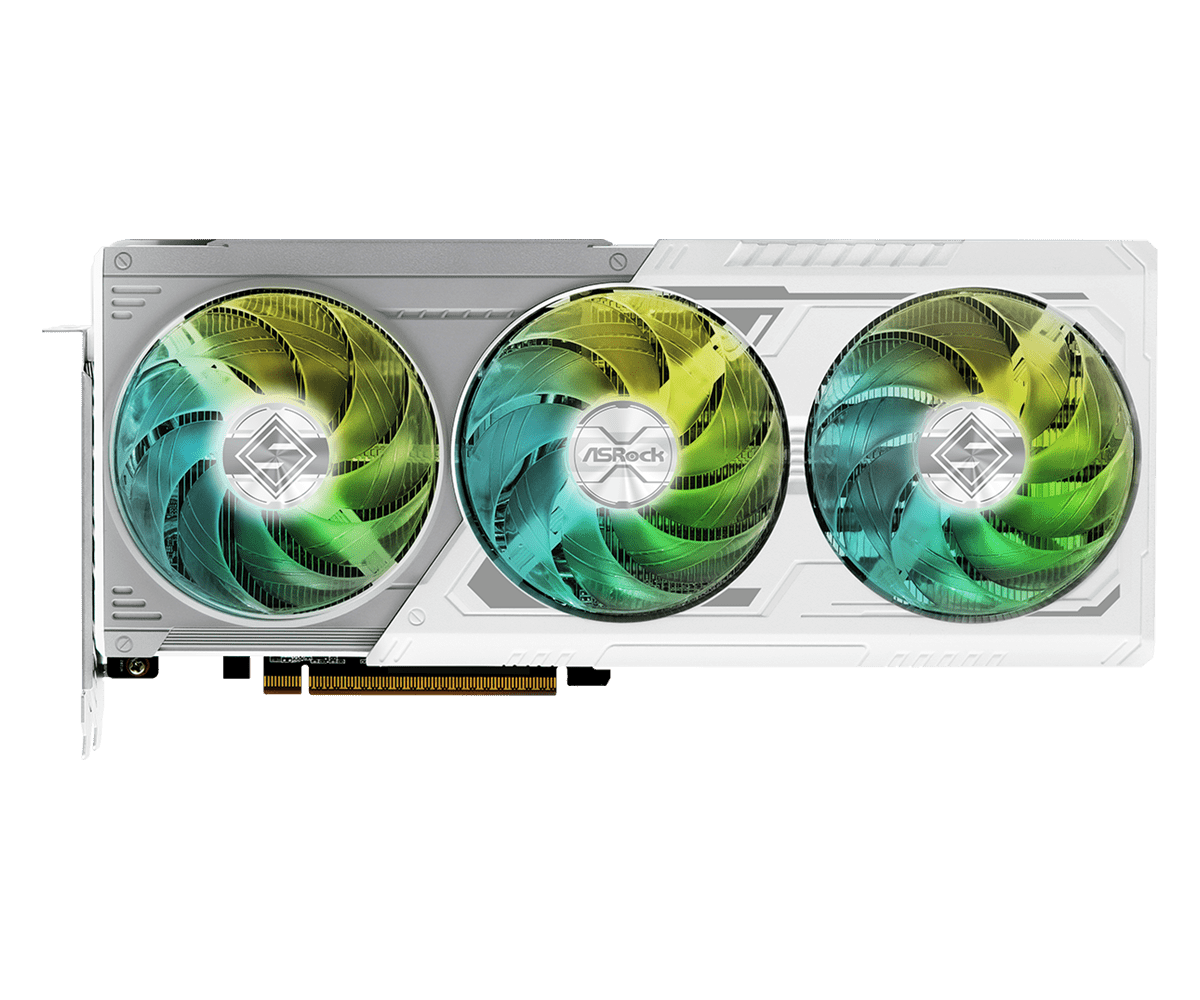

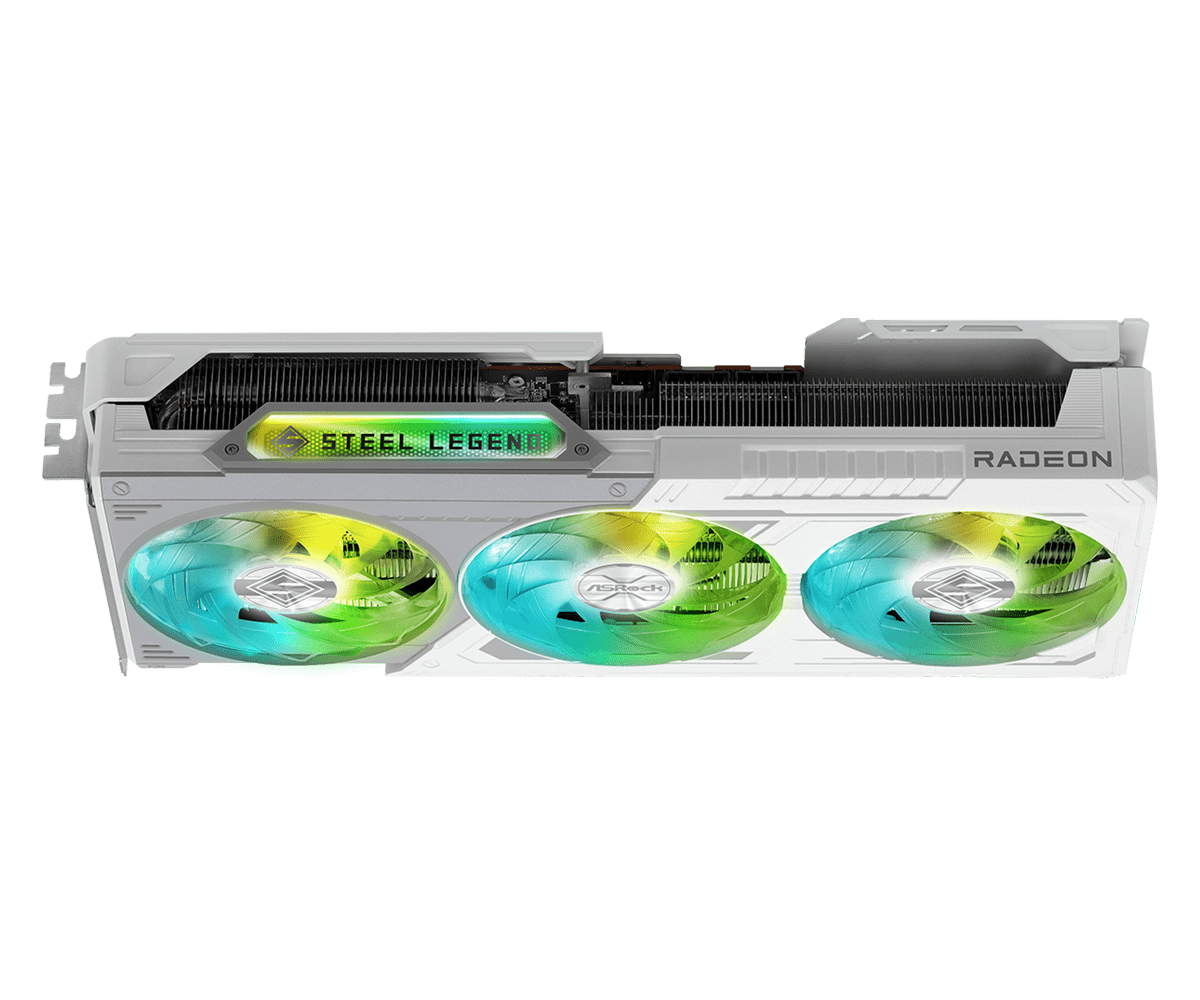

ASRock AMD Radeon™ RX 9070 XT Steel Legend 16GB

Key Specifications

• GPU: AMD Radeon™ RX 9070 XT

• Architecture: RDNA™ 4

• Compute Units: 64 (3rd Gen Ray Accelerators + 2nd Gen AI Accelerators)

• Memory: 16GB GDDR6

• Memory Bus: 256-bit

• Boost Clock: Up to 2970 MHz

• Game Clock: 2400 MHz

• Memory Speed: 20 Gbps

• Interface: PCI Express® 5.0

• Power Connectors: 2 x 8-pin

• Display Outputs: 3 x DisplayPort™ 2.1a, 1 x HDMI™ 2.1b

• DirectX® Support: Microsoft® DirectX® 12 Ultimate

Advanced Cooling & Build Features

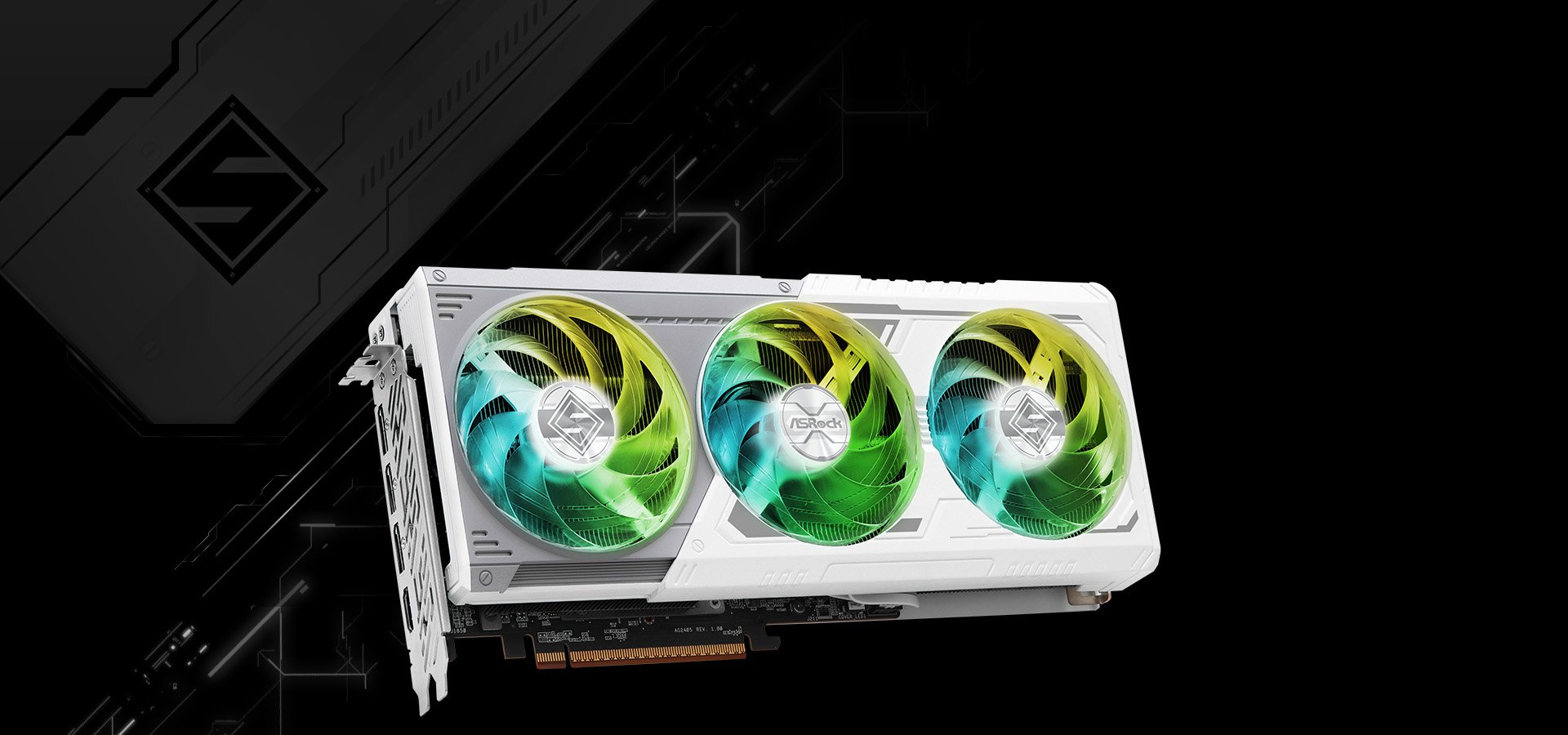

• Triple Fan Design: Includes Striped Ring Fans for increased airflow

• 0dB Silent Cooling: Fans stop during low-load for silent operation

• Air Deflecting Fin: V-shaped fins enhance airflow direction and cooling efficiency

• Ultra-fit Heatpipes: Improved contact for optimal heat dissipation

• Nickel-plated Copper Base: Maximized GPU contact for effective heat transfer

• High-density Metal Welding: Improved heat dissipation through tighter assembly

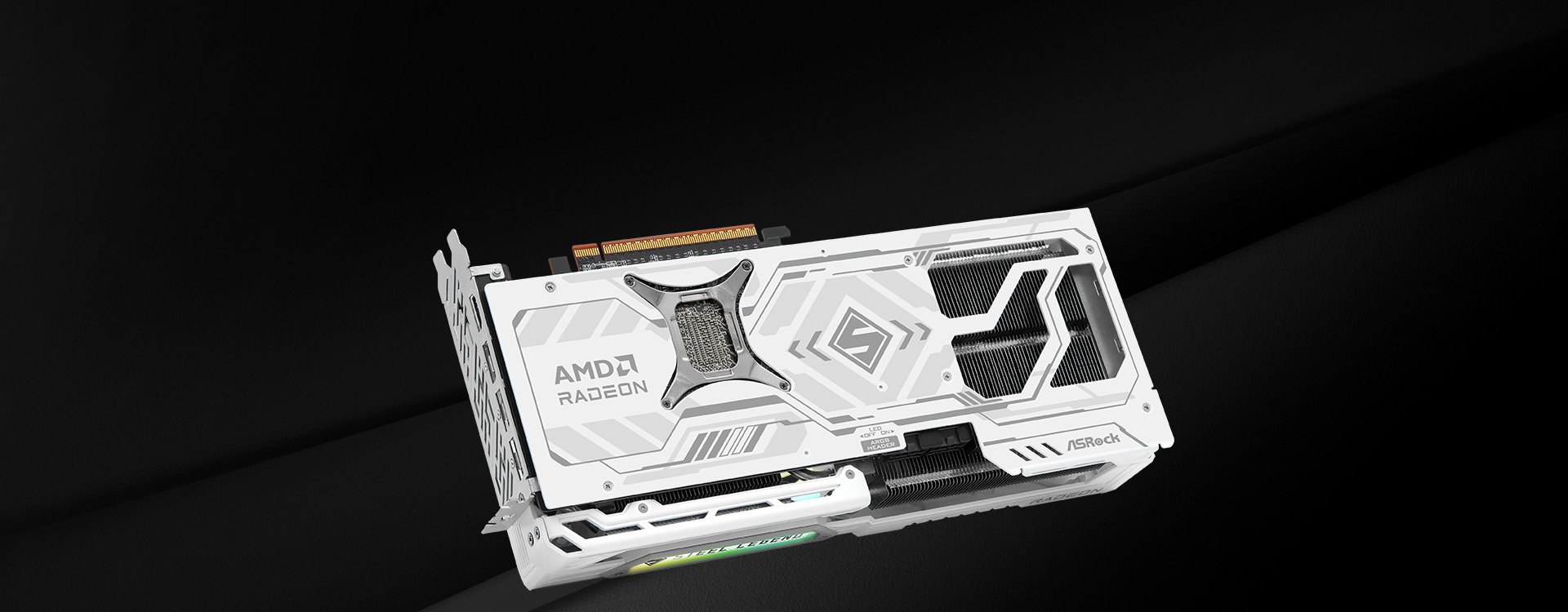

• Stylish Metal Backplate: Prevents PCB bending and assists with cooling

• Reinforced Metal Frame: Added structural strength and premium feel

Lighting and Aesthetics

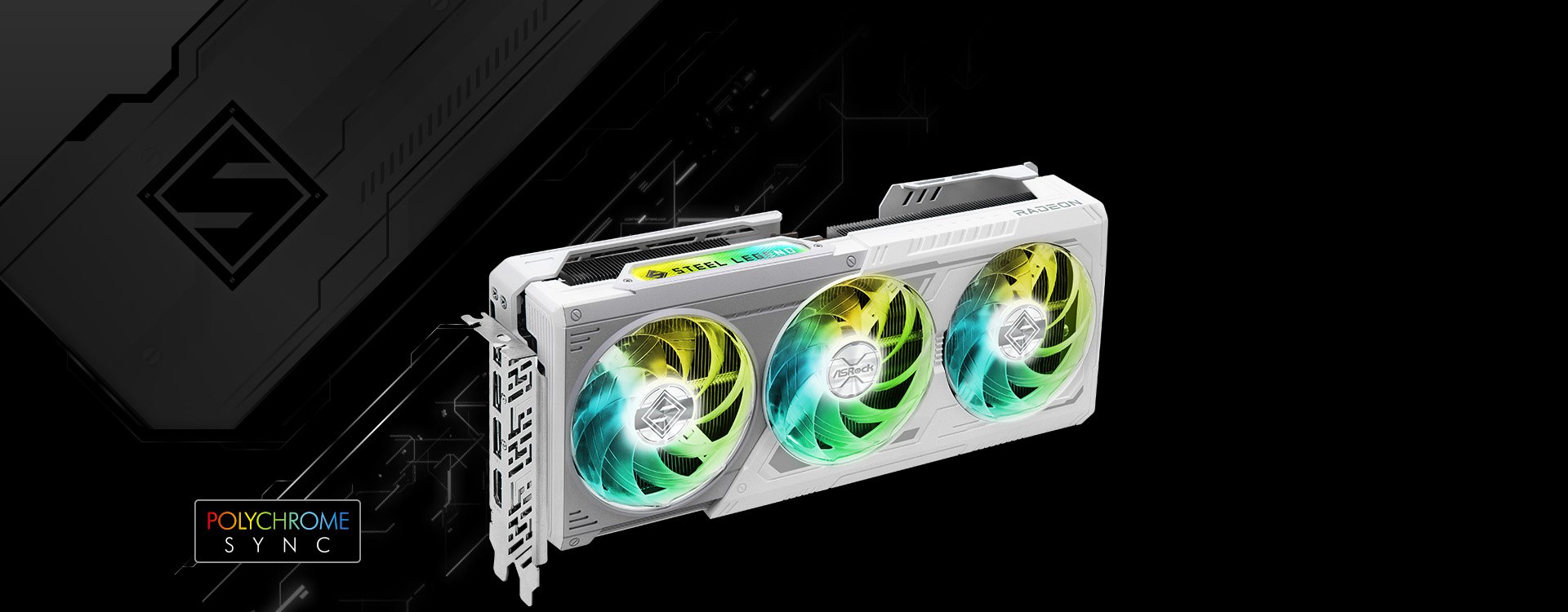

• Polychrome SYNC Support: Customize ARGB lighting effects

• ARGB Header: Connect additional ARGB devices for expanded lighting

• LED On/Off Switch: Control lighting quickly without software

Premium Componentry

• Japanese SP-Caps: Low ESR for better conductivity and durability

• Dr. MOS: Integrated power stage delivering higher current and improved thermal performance

• Premium Power Chokes: Better saturation current and Vcore voltage stability

• 2oz Copper PCB: Lower temperatures and higher efficiency

• Matte Black PCB: Sleek design with better electrical performance

• High Density Glass Fabric PCB: Reduces risk of short-circuits from humidity

• Premium Thermal Pads: Enhance thermal conductivity from components to heatsink

• Precise Screw Torque: Ensures optimal cooler mounting pressure

Software and AI Features

• AMD HYPR-RX6: One-click boost with Radeon Super Resolution, Anti-Lag, Boost, and Fluid Motion Frames

• FidelityFX™ Super Resolution 4.1: AI-powered image upscaling with advanced frame generation

• Radiance Display™ Engine: Enhanced multimedia and streaming support

• Day-Zero Driver Support: Optimized performance for new game releases

Future-Ready Technology

• PCIe 5.0 Compatibility: Maximum bandwidth for next-gen CPUs and motherboards

• Smart Access Memory: Enhanced performance when paired with AMD Ryzen™ 9000 Series CPUs

• DisplayPort 2.1 & HDMI 2.1b: Cutting-edge display support for high refresh and 4K gaming

• Built for AAA Gaming: Smooth gameplay across 1440p, 4K, and high refresh rate monitors

Delivering speed, cooling, power, and visual brilliance—
the ASRock RX 9070 XT Steel Legend is ready for modern gaming and future upgrades.
