Asrock WRX90 WS EVO EEB Motherboard for AMD sTR5 CPUs
Original price was: £863.39.£799.44Current price is: £799.44. INC VAT
Out of stock
Out of stock
You Save: £63.95 (7%)
Key Features
- EEB Form Factor
- AMD WRX90 Chipset
- Socket sTR5
- DDR5 (Max: 256GB / 8 slots)
- 2 x M.2 & 15 x USB & 4 x SATA
- HDMI
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description

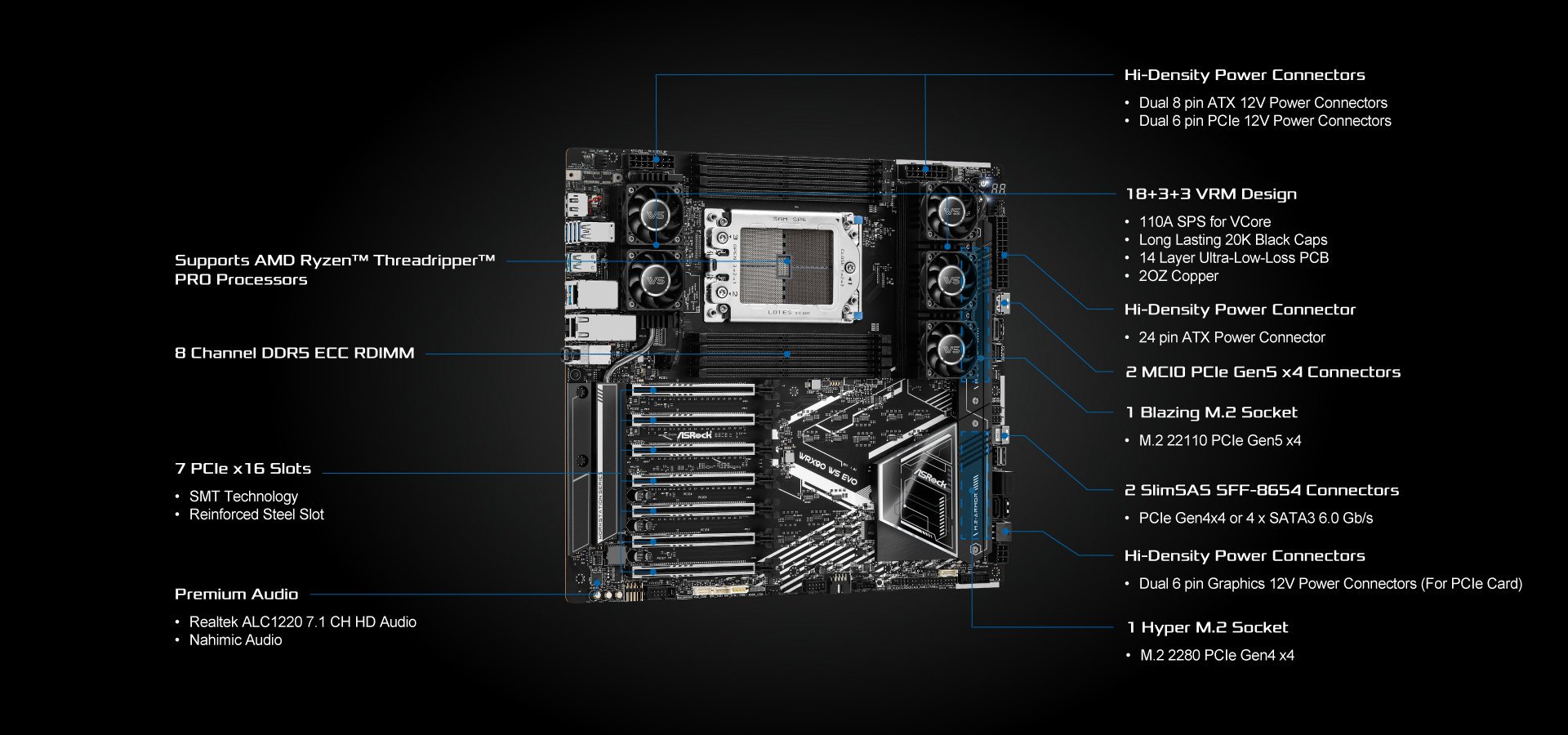

ASRock WRX90 WS EVO Workstation Powerhouse for Professionals
High-End Performance for Demanding Workloads
The ASRock WRX90 WS EVO motherboard is engineered for the most demanding workstation tasks, featuring support for AMD Ryzen™ Threadripper™ PRO processors. With its 18+3+3 power phase design and 110A SPS, it ensures stable power delivery even under heavy computational loads. Equipped with 7 PCIe 5.0 x16 slots, dual 10G LAN, and support for 8 DIMMs of DDR5 ECC RDIMM memory up to 2TB, this board is ready to tackle rendering, simulation, and AI workloads with ease.
Enterprise-Grade Features for Stability and Expansion
Designed with server-grade components including a 14-layer PCB and 2oz copper inner layers, the WRX90 WS EVO offers exceptional durability, thermal efficiency, and signal integrity. It features versatile connectivity options such as SlimSAS, MCIO, dual USB4 Type-C, and advanced storage capabilities including PCIe Gen5 Blazing M.2. The Aspeed® AST2600 BMC controller and IPMI LAN port enable remote management, making it ideal for professional studios and enterprise environments.
Enhanced User Experience with Smart Technologies
This motherboard includes Nahimic Audio for immersive 360° sound, a Multi PSU Adaptor for high-wattage configurations, and integrated Polychrome RGB lighting for personalized setups. USB4 ensures blazing-fast data transfers and device compatibility, while Intel’s 10GbE LAN delivers ultra-low latency networking. Whether you’re building a powerhouse for design, simulation, or multimedia production, the WRX90 WS EVO delivers unmatched reliability and functionality.
| Motherboard Type | Server / Workstation |
|---|---|
| Form Factor | EEB |
| Socket | AMD sTR5 |
| Chipset | AMD WRX90 |
| DDR Type | DDR5 |
| CPU Support | Click here for CPU support |
| RAM Technology | Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) |
| RAM Slots | 8 x DIMM |
| RAM Speeds | Up to 7600+ (OC) |
| Maximum Memory | 2048GB |
| Graphics | Aspeed AST2600 BMC Controller |
| Graphics Ports | 1 x Display Port 1.1a with max. resolution up to 1920×1200 @ 60Hz – does not support audio function |
| PCI/PCI Express | 7 x PCIe 5.0 x16 (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE7 at x16; PCIE6 at x8) |
| Storage | 4 x SATA III 1 x M.2 (2260/2280/22110) – PCIe 5.0 x4 1 x M.2 (2260/2280) – PCIe 4.0 x4 2 x MCIO (PCIe Gen5x4 or 4 x SATA3 6.0 Gb/s) 1 x SlimSAS SFF-8654 (SLIM1) (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s) 1 x SlimSAS SFF-8654 (SLIM2) (PCIe Gen4x4) |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Wireless | – |
| LAN | Dual 10G LAN & Dedicated IPMI LAN port |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
| USB Ports Supported | Rear: 2 x USB4 Type-C 4 x USB 3.2 Gen2 Type-A 2 x USB 3.2 Gen1 Type-A Front: 1 x USB 3.2 Gen2x2 Type-C 2 x USB 3.2 Gen1 Type-A 4 x USB 2.0 |
| Back Panel I/O Ports | 1 x Display Port 1.1a 1 x Optical SPDIF Out 2 x USB4 Type-C (40 Gb/s) 4 x USB 3.2 Gen2 Type-A (10 Gb/s) 2 x USB 3.2 Gen1 Type-A 2 x RJ-45 LAN 1 x RJ45 Dedicated IPMI LAN Port 1 x Line Out Jack 1 x Microphone Input Jack |
| Internal I/O Connectors | 2 x Thermistor Cable 1 x Front VGA 1 x COM Port 1 x Power LED and Speaker 1 x Intelligent Platform Management Bus 1 x PSU SMBus 1 x BMC SMBus 1 x Auxiliary Panel 2 x Addressable LED 1 x CPU Fan 1 x CPU/Water Pump Fan 3 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 3 pin ATX 2 x 8 pin ATX 12V 2 x 6 pin PCIe 12V 2 x 6 pin Graphics 12V 1 x Right Angle Front Audio 2 x USB 2.0 1 x USB 3.2 Gen1 1 x Front Panel Type-C USB 3.2 Gen2x2 2 x SGPIO 1 x CPU HP-SMBus 1 x Non Maskable Interrupt Button 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED 1 x Clear CMOS Button |
| Accessories | 1 x User Manual 1 x I/O Shield 4 x SATA Data Cables 2 x Thermistor Cables 1 x Multi PSU Adaptor Cable 2 x Screws for M.2 Sockets 2 x Standoffs for M.2 Sockets |
| Package Type | Retail |
| Package Weight | 3.6200 kg |
| Warranty | 3 Year Replacement Warranty |
| M.2 Slot(s) | Yes (M.2) |
| No. LAN Ports | 2 x LAN |
| Max LAN Speed | 10GB LAN |
