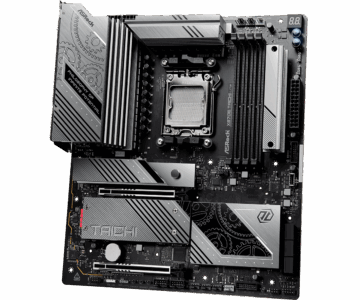

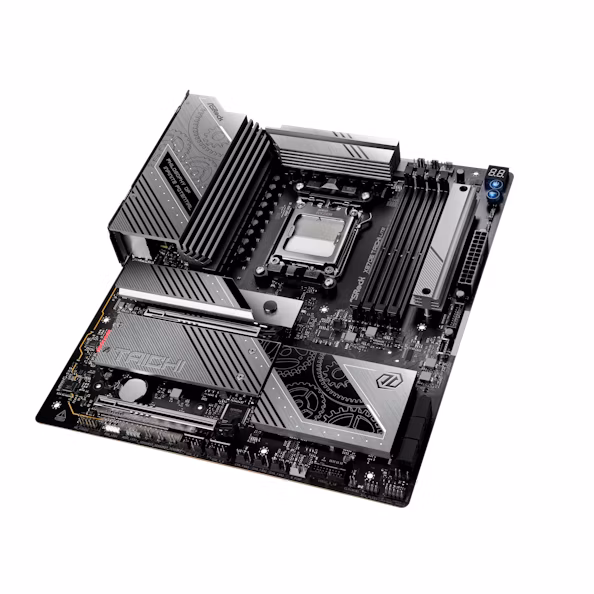

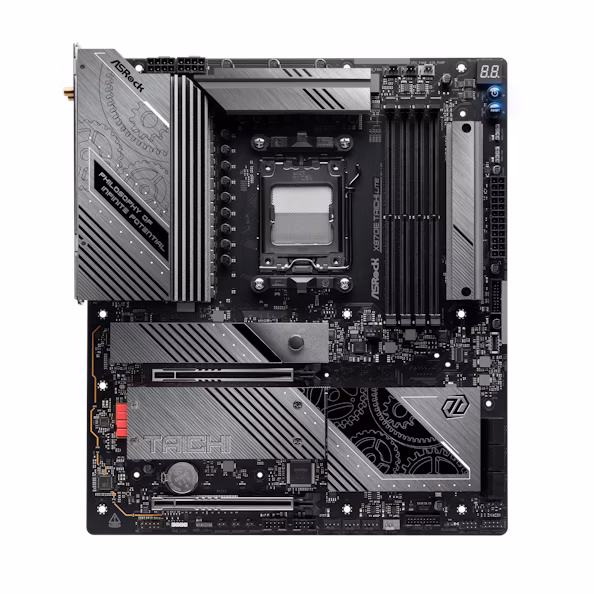

ASRock X870E TAICHI LITE EATX Motherboard for AMD AM5 CPUs
£367.25 Original price was: £367.25.£340.05Current price is: £340.05. INC VAT
In stock
In stock
You Save: £27.20 (7%)
Key Features
- EATX Form Factor
- AMD X870E Chipset
- Socket AM5
- DDR5 (Max: 256GB / 4 slots)
- 4 x M.2 & 12 x USB & 6 x SATA
- HDMI
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description

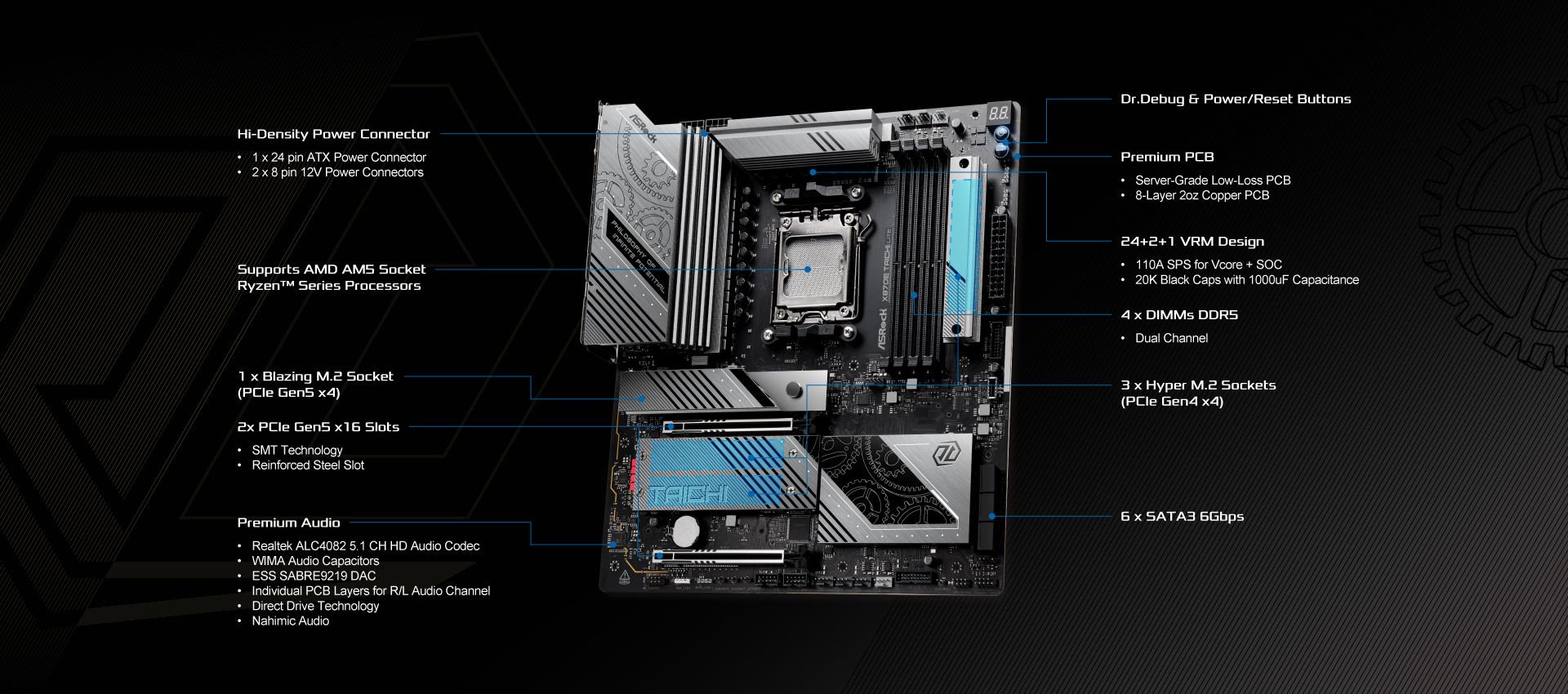

ASRock X870E Taichi Lite Power Refined with USB4, Wi-Fi 7 & Blazing AM5 Performance
Streamlined Design, Premium Power
The ASRock X870E Taichi Lite is a high-end AM5 motherboard purpose-built for performance enthusiasts who want flagship features without flashy extras. With its robust 24+2+1 phase power delivery and support for the latest AMD Ryzen 9000, 8000, and 7000 Series CPUs, the X870E Taichi Lite empowers you to overclock with confidence. The high-frequency DDR5 RAM support and dual PCIe 5.0 slots ensure ultra-fast bandwidth for gaming and workstation applications.
Connectivity Without Compromise
Despite its minimalist branding, the X870E Taichi Lite offers full-fledged connectivity, including dual USB4 Type-C ports with video output, HDMI, and high-speed I/O across rear and front panels. It supports 4 x M.2 drives, including one PCIe 5.0 Blazing M.2 slot for top-tier storage speeds, plus 6 x SATA III for legacy support. Networking is lightning-fast with onboard 5G LAN and cutting-edge Wi-Fi 7, ensuring uninterrupted data transfers and ultra-low latency.
Solid Build, Smart Features
Engineered for reliable builds, the Taichi Lite comes equipped with toolless M.2 heatsinks, reinforced PCIe 5.0 steel slots, and a premium 8-layer PCB with 2oz copper for thermal and signal integrity. The refined layout eliminates RGB lighting but maintains BIOS Flashback, Graphics Card EZ Release, and other core DIY-friendly features. Whether you’re building a stealthy workstation or a powerhouse gaming rig, this board delivers premium performance where it matters most.
| Motherboard Type | Desktop |
|---|---|
| Form Factor | Extended ATX |
| Socket | AMD AM5 |
| Chipset | AMD X870E |
| Memory Type | DDR5 (Dual Channel, ECC/Non-ECC, Un-buffered) |
| Memory Slots | 4 x DIMM |
| Max Memory | 256GB |
| Memory Speed | Up to 8000+ MHz (OC) |
| Integrated Graphics | Yes (Depends on CPU) |
| Graphics Ports | 1 x HDMI, 2 x USB4 Type-C (Display Output) |
| Multi-GPU | AMD CrossFire |
| Expansion Slots | 2 x PCIe 5.0 x16, 1 x M.2 Key E (Wi-Fi/BT) |
| Storage | 6 x SATA III, 4 x M.2 (1 x PCIe 5.0, 3 x PCIe 4.0) |
| RAID Support | RAID 0, 1, 10 (SATA and NVMe) |
| LAN | 5G LAN |
| Wireless | Wi-Fi 7 (802.11be), Bluetooth 5.4 |
| Audio | Realtek ALC4082 5.1CH HD, Nahimic Audio |
| USB (Rear) | 2 x USB4 Type-C, 5 x USB 3.2 Gen2 Type-A, 3 x USB 3.2 Gen1 Type-A |
| USB (Front) | 1 x USB 3.2 Gen2x2 Type-C, 4 x USB 3.2 Gen1 |
| Power Delivery | 24+2+1 Phase, Hi-Density Power Connectors, Smart Power Stage |
| Cooling | VRM Heatsink, Fan-Tastic Tuning, Thermistor Header |
| Lighting | None |
| Accessories | Thermistor Cable |
| Reinforcements | PCIe 5.0 Steel Slot |
| CPU Support List | Click here |
