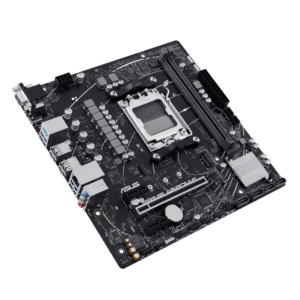

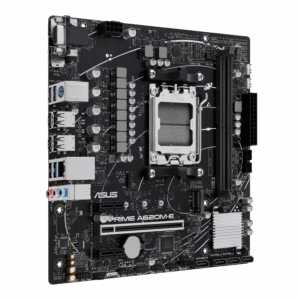

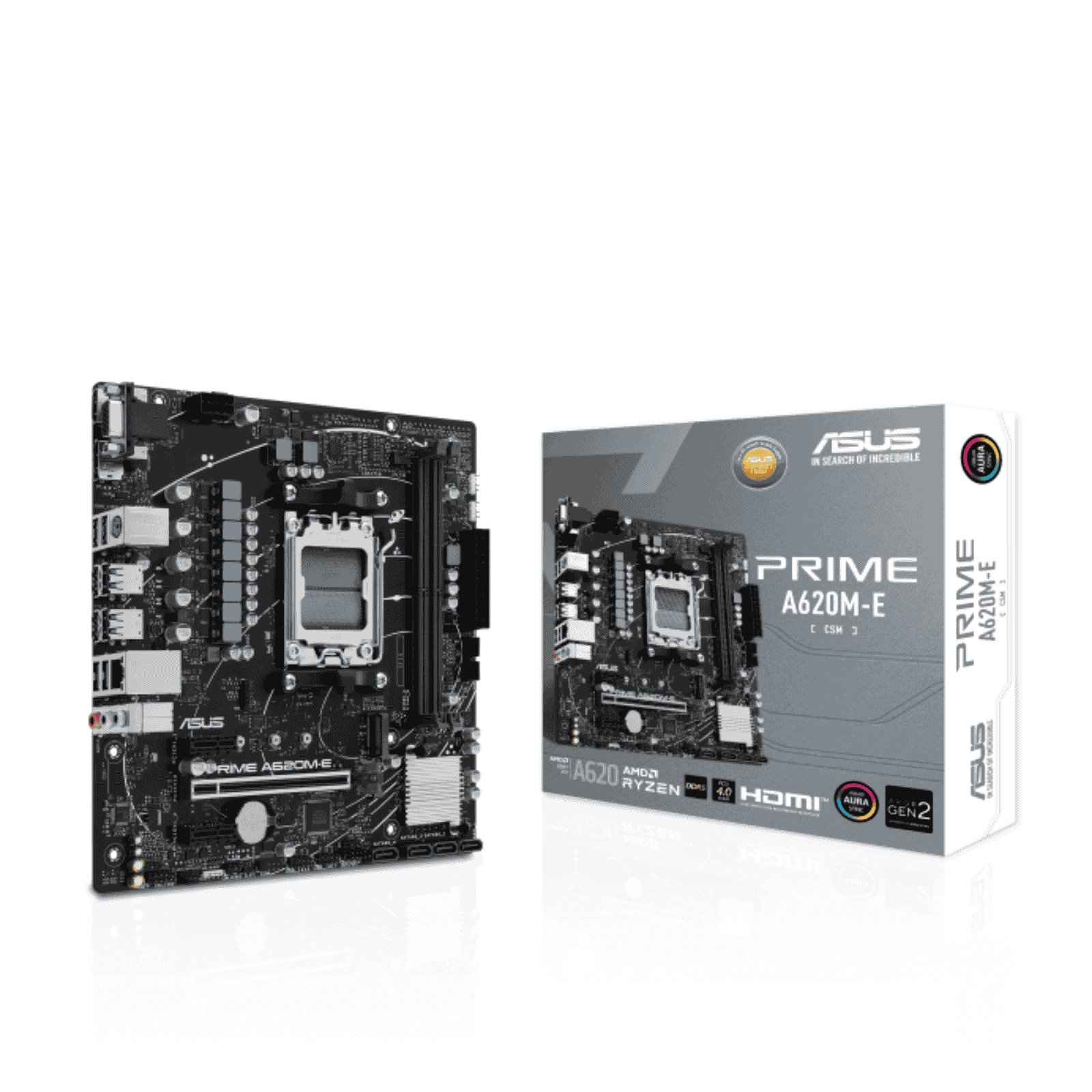

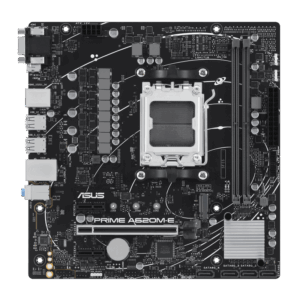

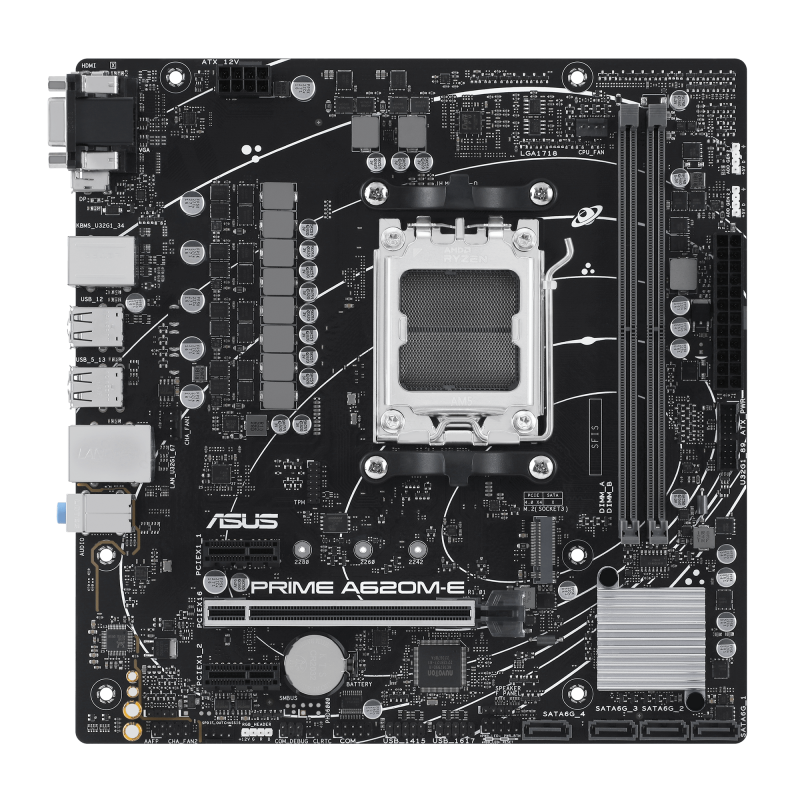

ASUS Prime A620M-E-CSM Micro ATX Motherboard for AMD AM5 CPUs
Original price was: £105.11.£97.33Current price is: £97.33. INC VAT
In stock
In stock
You Save: £7.78 (7%)
Key Features
- Micro ATX Form Factor
- AMD A620 Chipset
- Socket AM5
- DDR5 (Max: 96GB / 2 slots)
- 1 x M.2 & 8 x USB & 4 x SATA
- HDMI, Display Port and VGA
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description
ASUS PRIME A620M-E-CSM Reliable Performance Micro-ATX Motherboard with DDR5 and PCIe 4.0
Powerful AMD AM5 Platform Support
The ASUS PRIME A620M-E-CSM motherboard is designed for the latest AMD Ryzen™ 7000 Series processors with the AM5 socket. It delivers reliable and efficient performance, equipped with DDR5 memory support, PCIe 4.0 bandwidth, and a high-speed 64Gbps M.2 slot. This motherboard is the ideal choice for users seeking a stable foundation for professional or home builds with future-ready features.
Advanced Cooling and Connectivity Features
This board includes efficient thermal solutions like the PCH heatsink and hybrid fan headers controlled by Fan Xpert 2+, keeping your system cool under heavy workloads. Connectivity is comprehensive, including Realtek 1Gb Ethernet, USB 3.2 Gen 1 ports, multiple display outputs with VGA, HDMI™, and DisplayPort, and flexible storage options through SATA III and M.2 slots for fast data transfers.
Enhanced User Experience and IT Management
Customization is seamless with Aura Sync RGB headers and addressable Gen 2 lighting support. AI Noise Cancelation technology ensures crystal-clear audio by filtering background sounds from microphones and speakers. The ASUS Control Center Express software supports streamlined IT management, providing real-time monitoring and control, ideal for corporate environments under the Corporate Stable Model (CSM) with long-term reliability.
| Motherboard Type | Desktop |
|---|---|
| Form Factor | Micro ATX |
| Socket | AMD AM5 |
| Chipset | AMD A620 |
| DDR Type | DDR5 |
| CPU Support | View Supported CPUs |
| RAM Technology | DDR5 (Dual Channel), AMD EXPO Support |
| RAM Slots | 2 x DIMM |
| RAM Speeds | Up to 7200+ (OC) |
| Max Memory | 96GB |
| Graphics | Integrated (CPU-dependent) |
| Graphics Ports | 1 x VGA, 1 x HDMI, 1 x Display Port |
| PCIe Slots | 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 |
| Storage | 4 x SATA III, 1 x M.2 PCIe 4.0 x4 |
| RAID | RAIDXpert2 (PCIe/SATA RAID 0/1/10) |
| LAN | 1 x Realtek 1Gb Ethernet |
| Audio | Realtek 7.1 Surround HD Audio CODEC |
| USB (Rear) | 4 x USB 3.2 Gen 1, 4 x USB 2.0 |
| USB (Front) | 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Back I/O Ports | Display Port, VGA, HDMI, 1Gb LAN, 3 x Audio Jacks, PS/2 Combo |
| Internal I/O | CPU / Chassis Fan Headers, USB headers, M.2 slot, SATA, RGB headers |
| Internal Connectors | Front Audio, S / PDIF Out, TPM, System Panel, Clear CMOS |
| Accessories | 2 x SATA Cables, I / O Shield, M.2 Screw Kit, ACC Key Card, User Guide |
| Package Type | Retail |
| Weight | 1.0600 kg |
| Warranty | 3 Years |
