Key Features
- Micro ATX Form Factor
- Intel B760 Chipset
- Socket 1700
- DDR4 (Max: 128GB / 4 slots)
- 2 x M.2 & 6 x USB & 4 x SATA
- HDMI and Display Port
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns

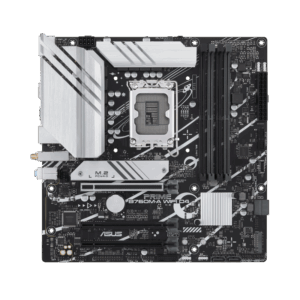

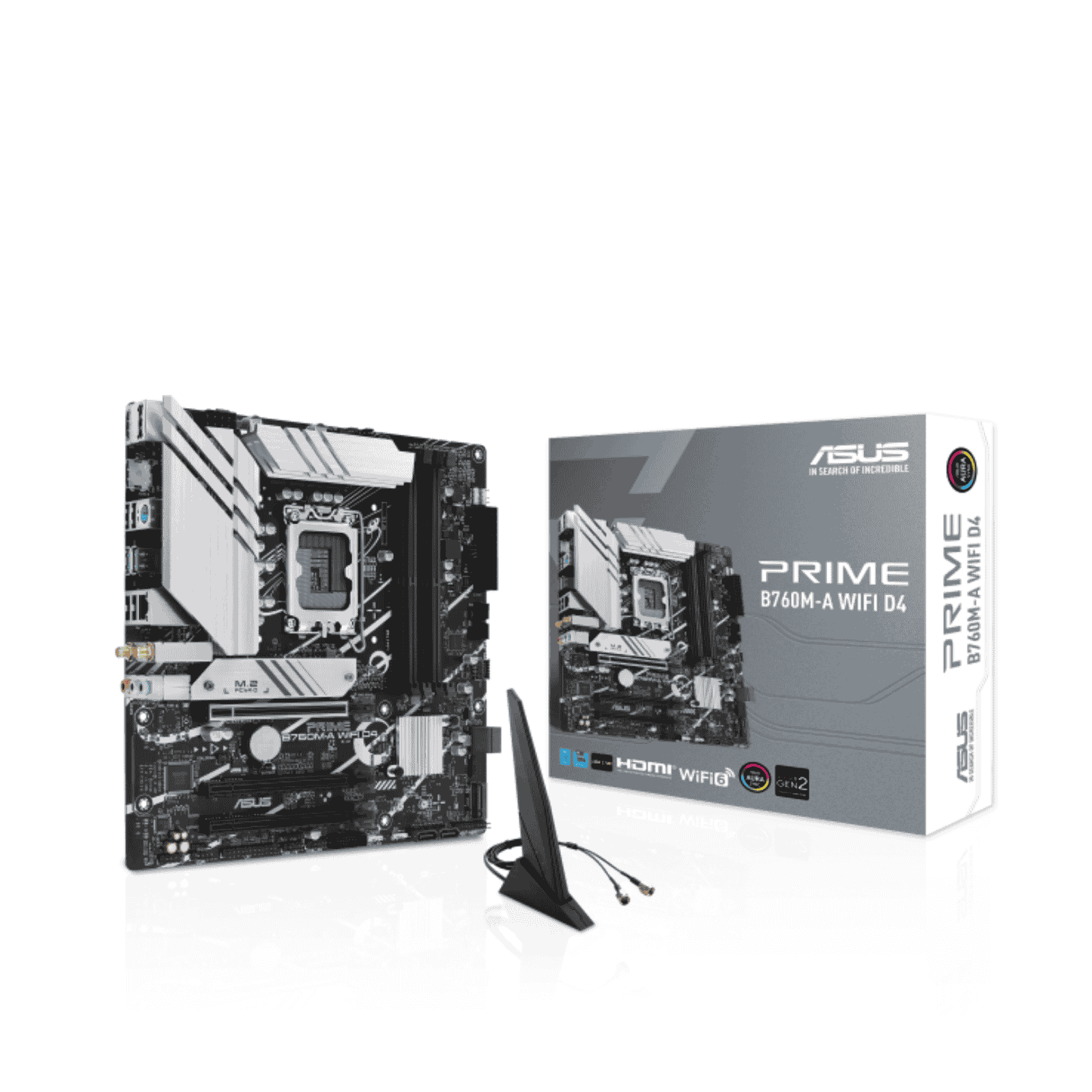

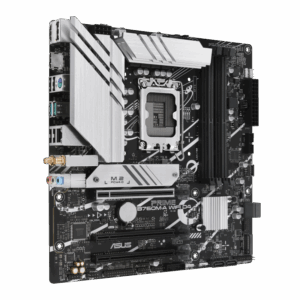

ASUS Prime B760M-A WiFi D4 Micro ATX Motherboard for Intel LGA1700 CPUs
Original price was: £126.60.£117.23Current price is: £117.23. INC VAT
Out of stock
Out of stock
You Save: £9.37 (7%)
Key Features
- Micro ATX Form Factor
- Intel B760 Chipset
- Socket 1700
- DDR4 (Max: 128GB / 4 slots)
- 2 x M.2 & 6 x USB & 4 x SATA
- HDMI and Display Port
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description
ASUS PRIME B760M-A WIFI D4 Powerful Precision for Next-Gen Productivity
Optimized for Intel’s Latest Processors
The ASUS PRIME B760M-A WIFI D4 is designed to harness the full potential of 13th and 12th Gen Intel® Core™ processors through its LGA 1700 socket and Intel® B760 chipset. Built with PCIe 4.0 support and dual M.2 slots, it ensures high-speed data transfer and faster storage performance. Enhanced power delivery through quality components keeps your system stable even under intense tasks, while Realtek 2.5Gb Ethernet and Wi-Fi 6 deliver lightning-fast networking for work and entertainment.
Advanced Cooling and Connectivity
Efficient cooling is a key feature of the PRIME B760M-A, with multiple heatsinks and hybrid fan headers designed to manage system temperature intelligently. Fan Xpert 2+ and a robust VRM ensure your components stay cool, even during overclocking. Connectivity is future-ready with USB 3.2 Gen 2 ports, front-panel USB-C, and integrated DisplayPort and dual HDMI outputs, making it an ideal motherboard for productivity and media workflows.
Customizable Performance and Aesthetics
Users looking to personalize their build will appreciate ASUS Aura Sync RGB support, addressable Gen 2 headers, and flexible expansion options. The board supports up to 128GB of DDR4 RAM with speeds up to 5333MHz (OC), and the acclaimed ASUS UEFI BIOS makes tuning effortless. Whether you’re a builder, gamer, or professional, the B760M-A WIFI D4 blends performance, stability, and personalization in one refined Micro ATX platform.
| Motherboard Type | Desktop |
|---|---|
| Form Factor | Micro ATX |
| Socket | Intel 1700 |
| Chipset | Intel B760 |
| RAM Type | DDR4 (Dual Channel) |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Up to 5333MHz (OC) |
| Maximum Memory | 128GB |
| Graphics | Integrated (depends on CPU) |
| Graphics Ports | 2 x HDMI, 1 x Display Port |
| Expansion Slots | 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x16 (x1 mode) |
| Storage | 4 x SATA III 2 x M.2 (2242/2260/2280) – PCIe |
| RAID Support | SATA RAID 0/1/5/10 (Intel RST) |
| Wireless | Wi-Fi 6 (2×2), Bluetooth v5.2 |
| LAN | Realtek 2.5Gb Ethernet |
| Audio | Realtek 7.1 Surround HD Audio CODEC |
| USB Ports | 2 x USB 3.2 Gen2 Type-A (rear) 4 x USB 3.2 Gen1 (internal) 9 x USB 2.0 (4 rear, 5 internal) 1 x USB 3.2 Gen1 Type-C (front header) |
| Rear I/O | 2 x USB 3.2 Gen2 Type-A 4 x USB 2.0 1 x Display Port 2 x HDMI 1 x Wi-Fi Module 1 x 2.5Gb LAN 3 x Audio jacks 1 x PS/2 Combo |
| Internal Connectors | 1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 2 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 2 x M.2 (Key M) 4 x SATA 2 x USB 3.2 Gen1 1 x USB 3.2 Gen1 Type-C 3 x Addressable Gen2 |
| Additional I/O | 1 x Aura RGB 1 x Clear CMOS 1 x COM Port 1 x Front Panel Audio 1 x LPT 1 x S/PDIF Out 1 x SPI TPM (14-1pin) 1 x 20-3 pin System Panel |

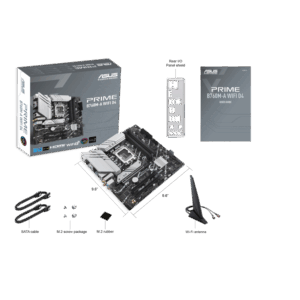

| Accessories | 2 x SATA Cables 1 x Wi-Fi Antenna 1 x I/O Shield 1 x M.2 Rubber Package 1 x M.2 Screw Package 1 x User Guide |
| Package Type | Retail |
| Package Weight | 1.6000 kg |
| Warranty | 3 Years |
