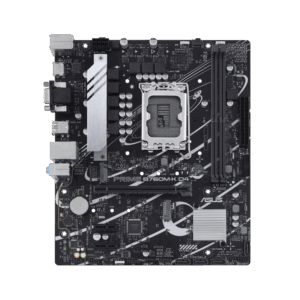

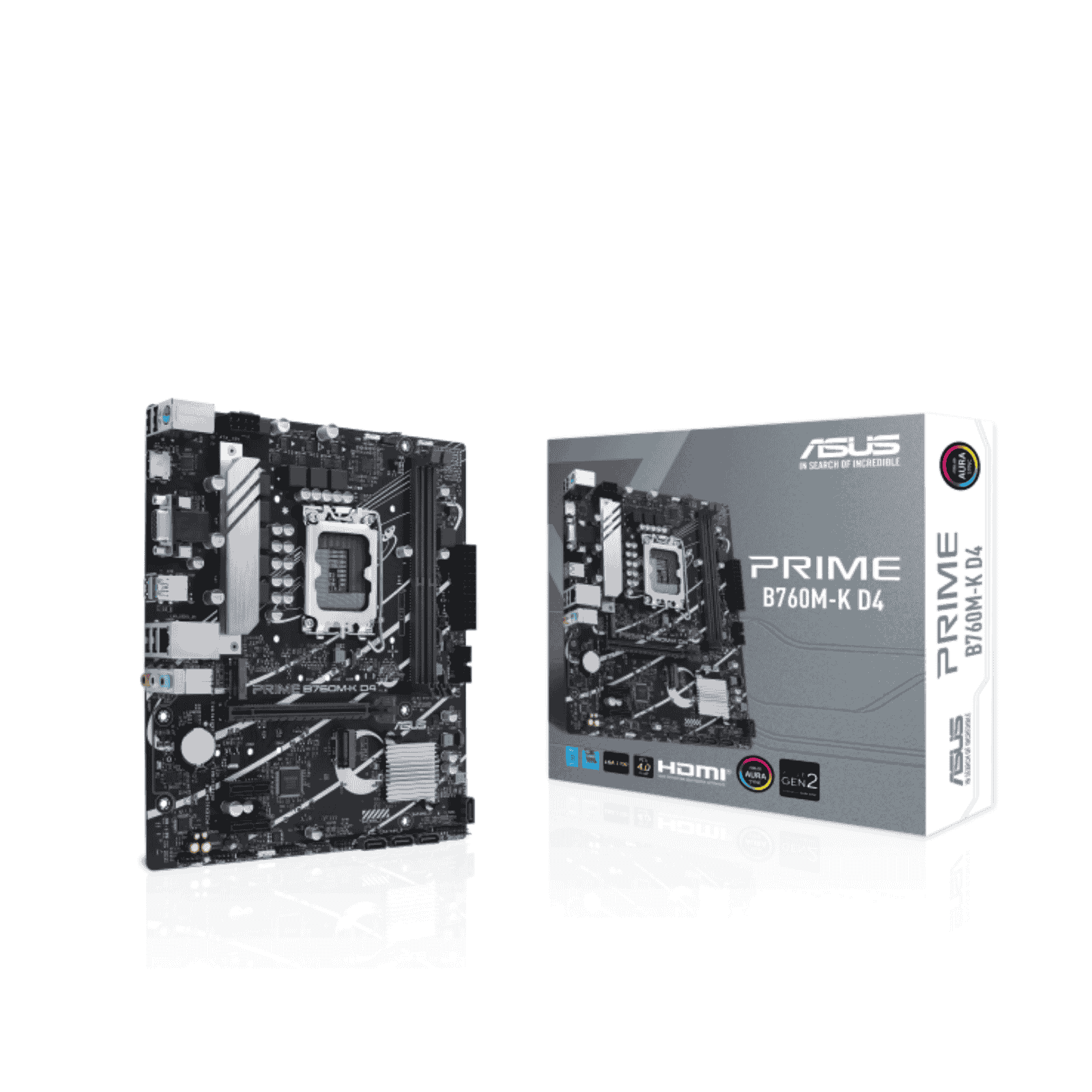

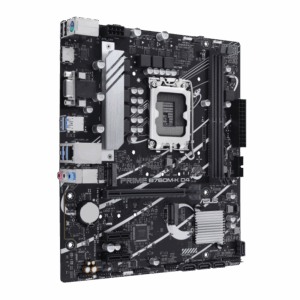

ASUS Prime B760M-K D4 Micro ATX Motherboard for Intel LGA1700 CPUs
Original price was: £92.07.£85.25Current price is: £85.25. INC VAT
Out of stock
Out of stock
You Save: £6.82 (7%)
Key Features
- Micro ATX Form Factor
- Intel B760 Chipset
- Socket 1700
- DDR4 (Max: 64GB / 2 slots)
- 2 x M.2 & 6 x USB & 4 x SATA
- HDMI and VGA
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description
ASUS Prime B760M-K D4 Built for Reliable Power, Fast Connectivity, and Compact Versatility
Optimized for Modern Intel Power
The ASUS Prime B760M-K D4 is crafted to harness the full potential of Intel’s 13th and 12th Gen Core processors, offering a dependable foundation for both work and play. Its LGA 1700 socket, DDR4 memory support, and robust power delivery ensure responsive multitasking, stable performance, and energy efficiency. Designed for microATX builds, this board delivers big capabilities in a space-saving form factor.
Smart Features and Enhanced Connectivity
Connectivity is a strong suit of the B760M-K D4, featuring dual PCIe 4.0 M.2 slots for ultra-fast storage, Realtek 2.5Gb LAN for high-speed networking, and front-panel USB 3.2 Gen 1 support. Built-in HDMI and VGA ports offer flexible display output options, while the Aura Sync RGB headers let you match lighting with the rest of your rig for a unified look.
Efficient Cooling and DIY Flexibility
ASUS ensures long-term reliability through carefully engineered cooling, including VRM and PCH heatsinks and hybrid fan headers managed via Fan Xpert. DIY builders will appreciate the clear layout, solid component quality, and customization options like addressable Gen 2 RGB and extensive I/O headers, making it a practical and stylish choice for modern PC builds.
| Motherboard Type | Desktop |
|---|---|
| Form Factor | Micro ATX |
| Socket | Intel LGA 1700 |
| Chipset | Intel B760 |
| Memory Type | DDR4 (Dual Channel) |
| RAM Slots | 2 x DIMM |
| Max RAM Speed | Up to 5333(OC) |
| Max Memory | 64GB |
| Integrated Graphics | Yes (Depends on CPU) |
| Graphics Outputs | 1 x VGA, 1 x HDMI |
| PCIe Slots | 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1 |
| Storage Options | 4 x SATA III, 2 x M.2 (PCIe) |
| RAID Support | SATA RAID 0/1/5/10 |
| Wireless | None |
| LAN | Realtek 2.5Gb Ethernet |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC |
| USB Ports | Rear: 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 Internal: 2 x USB 3.2 Gen1, 2 x USB 2.0 |
| Back Panel I/O | 4 x USB 3.2 Gen1 Type-A 2 x USB 2.0 1 x VGA 1 x HDMI 1 x Realtek 2.5Gb Ethernet 3 x Audio Jacks 1 x PS/2 Keyboard/Mouse Combo |
| Internal Connectors | 1 x 4-pin CPU Fan 1 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 2 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen1 2 x USB 2.0 2 x Addressable Gen2 1 x Aura RGB 1 x Clear CMOS 1 x COM Port 1 x Front Panel Audio 1 x S/PDIF Out 1 x Speaker 1 x SPI TPM (14-1 pin) 1 x 10-1 pin System Panel |

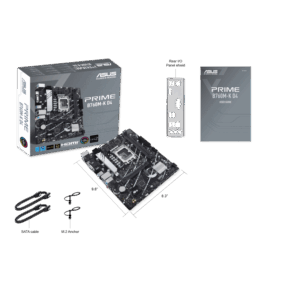

| Accessories | 2 x SATA 6Gb/s Cables 1 x I/O Shield 2 x M.2 Anchors 1 x User Guide |
| Package Type | Retail |
| Package Weight | 0.9300 kg |
| Warranty | 3 Years |
