ASUS Prime B760M-K Micro ATX Motherboard for Intel LGA1700 CPUs
£111.24 Original price was: £111.24.£103.00Current price is: £103.00. INC VAT
In stock
In stock
You Save: £8.24 (7%)
Key Features
- Micro ATX Form Factor
- Intel B760 Chipset
- Socket 1700
- DDR5 (Max: 96GB / 2 slots)
- 2 x M.2 & 6 x USB & 4 x SATA
- HDMI and VGA
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description

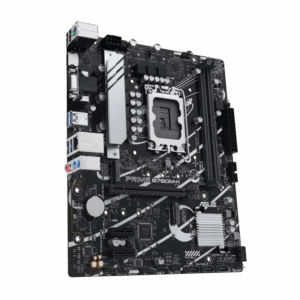

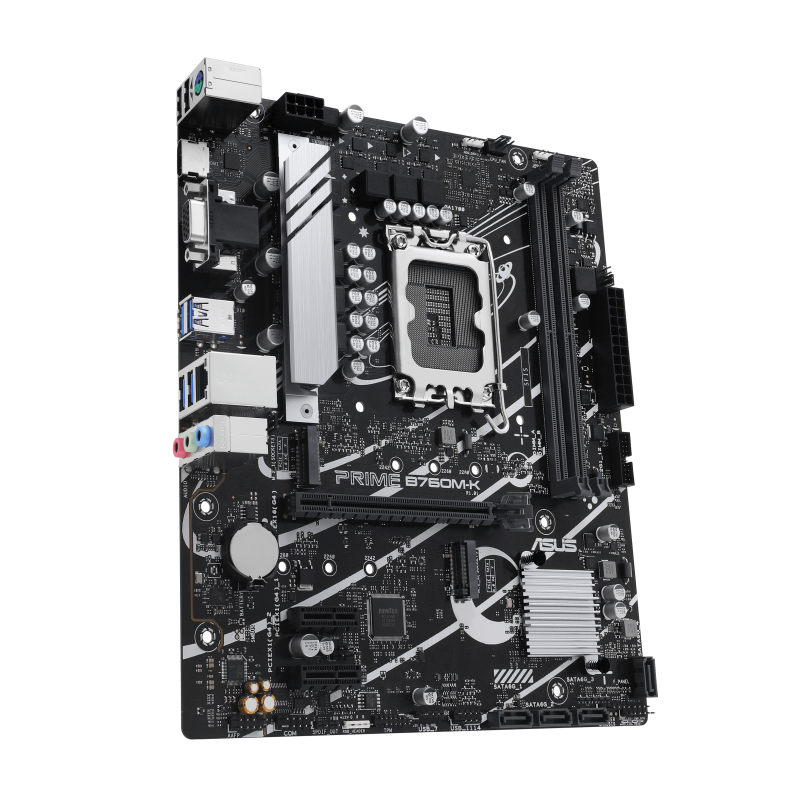

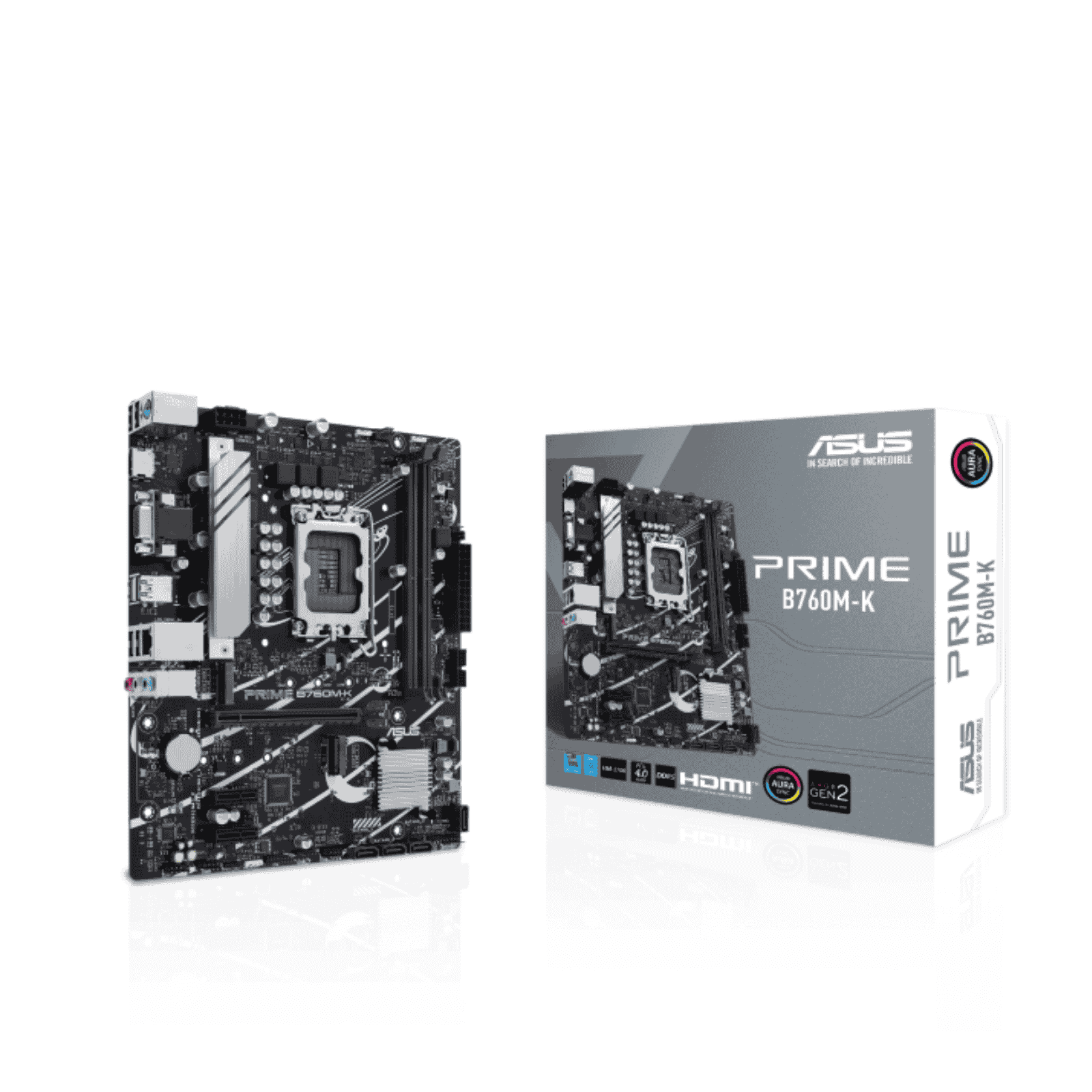

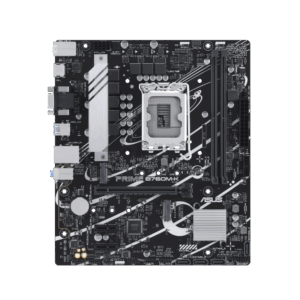

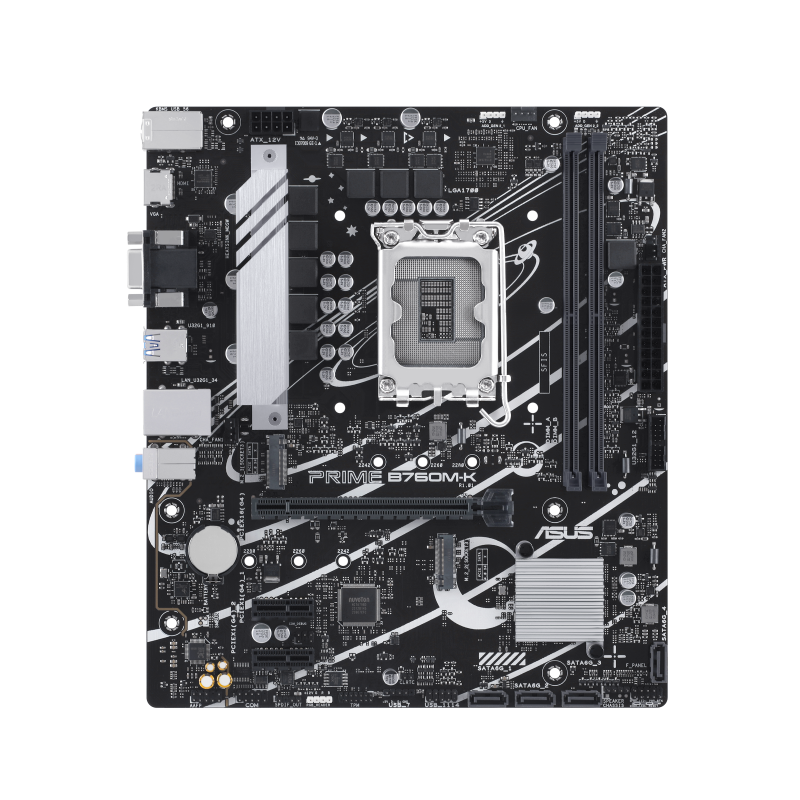

ASUS Prime B760M-K Power-Packed Performance in a Compact Form

Built for Intel Power and Daily Versatility
The ASUS Prime B760M-K motherboard is designed to support 13th and 12th Gen Intel® Core™ processors, delivering high performance in a compact micro ATX form factor. It features dual M.2 PCIe 4.0 slots for high-speed storage, DDR5 memory support up to 8000MHz (OC), and 2.5Gb Ethernet for ultra-fast networking. With VGA and HDMI outputs, this board ensures legacy and modern display support, making it ideal for both productivity workstations and daily home systems.

Smart Cooling and Expansion Flexibility
ASUS ensures this motherboard stays cool under pressure with multiple onboard heatsinks, hybrid fan headers, and Fan Xpert 2+ support. Whether you’re building a compact performance rig or a stable workhorse PC, the board’s two PCIe 4.0 x1 slots and one full-size PCIe 4.0 x16 provide enough flexibility for graphics, sound, or expansion cards, all while maintaining stable power delivery thanks to its enhanced VRM design.

Tailored Experience with Aura Sync and Premium Audio
Beyond raw performance, the Prime B760M-K focuses on personalization and user experience. With addressable Gen 2 RGB headers and Aura Sync compatibility, users can coordinate lighting effects across all supported devices. Audio is powered by Realtek 7.1 Surround Sound CODEC, delivering immersive sound for entertainment or creative work. Backed by durable components and a 3-year warranty, this board delivers reliability, style, and substance in equal measure.
| Specification | Details |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | Micro ATX |
| Socket | Intel 1700 |
| Chipset | Intel B760 |
| DDR Type | DDR5 |
| RAM Slots | 2 x DIMM |
| RAM Speeds | Up to 8000 (OC) |
| Maximum Memory | 96GB |
| Graphics Ports | 1 x VGA, 1 x HDMI |
| PCI / PCI Express | 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1 |
| Storage | 4 x SATA III, 2 x M.2 (PCIe 4.0 x4) |
| LAN | 2.5Gb LAN |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Rear USB | 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 |
| Front USB | 2 x USB 3.2 Gen1, 3 x USB 2.0 |
| Back Panel I/O | 4 x USB 3.2 Gen1, 2 x USB 2.0, 1 x VGA, 1 x HDMI, 1 x LAN, 3 x Audio Jacks, 1 x PS/2 Combo |
| Internal I/O | 2 x M.2, 4 x SATA, 2 x USB 3.2 Gen1, 2 x USB 2.0, 2 x Addressable Gen2, 1 x Aura RGB, Fan Headers, Clear CMOS, TPM, COM, S/PDIF, Audio, Power Connectors |
| Accessories | 2 x SATA Cables, 1 x I/O Shield, 2 x M.2 Anchors, 1 x User Guide |
| Package Type | Retail |
| Package Weight | 0.5510 kg |
| Warranty | 3 Years |
