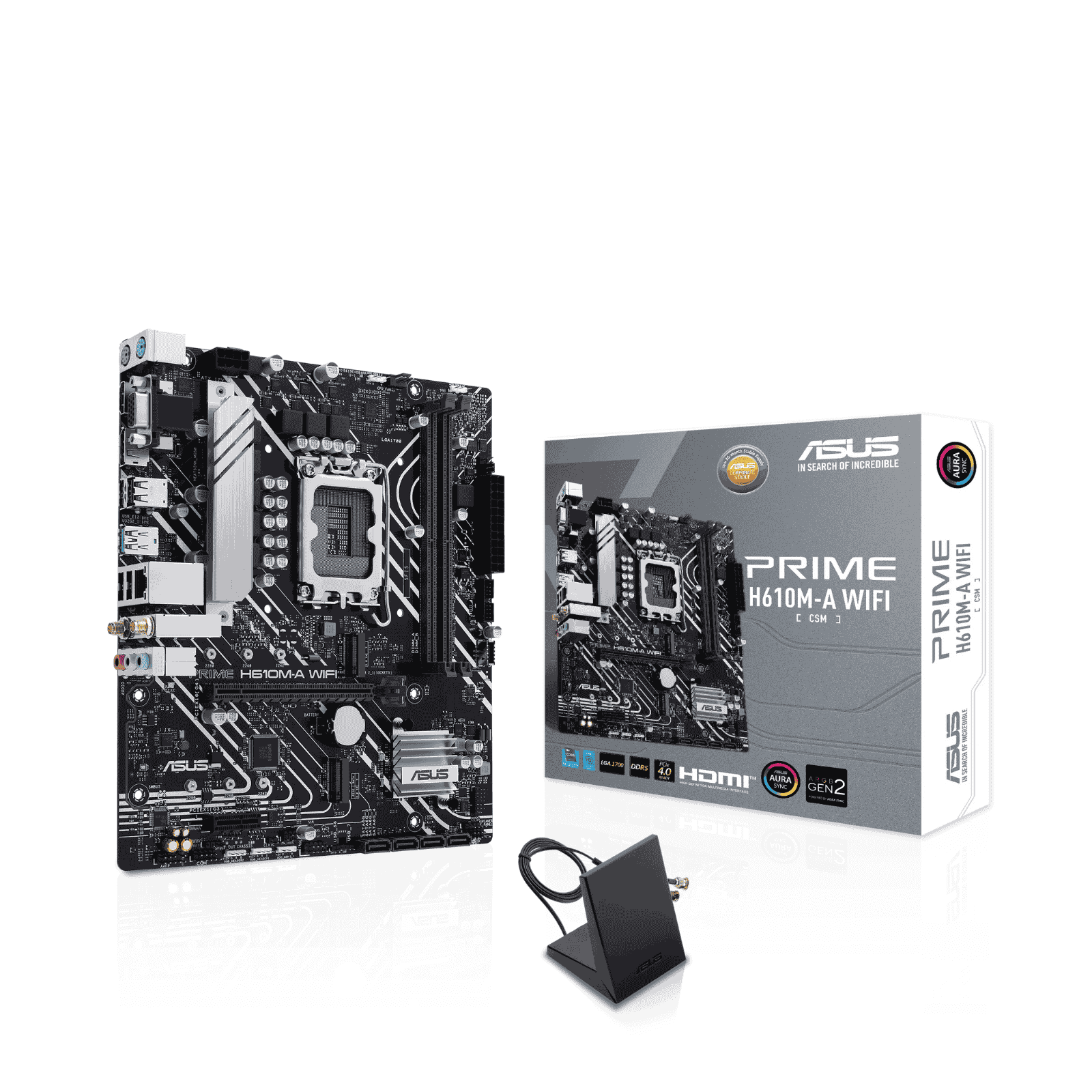

ASUS Prime H610M-A WIFI Micro ATX Motherboard for Intel LGA1700 CPUs
Original price was: £92.95.£86.06Current price is: £86.06. INC VAT
In stock
In stock
You Save: £6.89 (7%)
Key Features
- Micro ATX Form Factor
- Intel H610 Chipset
- Socket 1700
- DDR5 (Max: 96GB / 2 slots)
- 2 x M.2 & 5 x USB & 4 x SATA
- HDMI, Display Port and VGA
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description
ASUS Prime H610M-A-CSM Performance Redefined for Next-Gen Intel Builds
Powerful Foundation for Modern Workloads
The ASUS Prime H610M-A-CSM is engineered to deliver performance and stability for both professional and personal PC builds. Designed for the latest 14th, 13th, and 12th Gen Intel® Core™ processors, this Micro ATX motherboard is packed with modern standards including DDR5 memory support, PCIe 4.0, and dual M.2 slots. Whether you’re assembling a high-speed workstation or a compact multitasking system, this board provides the backbone for reliable computing with room to grow.
Smarter Connectivity and Cooling Capabilities
Outfitted with USB 3.2 Gen 2 ports, Intel® 1Gb Ethernet, and full support for PCIe 4.0, the H610M-A-CSM ensures faster data transfers and smoother networking. The inclusion of a VRM heatsink, hybrid fan headers, and Fan Xpert 2+ software keeps thermals in check even under demanding workloads. HDMI, DisplayPort, and VGA outputs provide display flexibility, while enhanced audio delivers immersive clarity for entertainment and conferencing.
Customization Meets Business-Class Control
With Aura Sync RGB lighting, addressable Gen 2 headers, and dual AURA RGB headers, users can tailor their setups with synchronized lighting effects. Built for longevity and IT management, the motherboard includes ASUS Control Center Express for centralized business-grade monitoring and system control. Whether you’re crafting a visually stunning home setup or managing multiple systems at scale, the H610M-A-CSM is built to meet diverse user needs.
| Motherboard Type | Desktop |
|---|---|
| Form Factor | Micro ATX |
| Socket | Intel LGA 1700 |
| Chipset | Intel H610 |
| DDR Type | DDR5 |
| CPU Support | Supported CPUs |
| RAM Technology | DDR5 (Dual Channel), Non-ECC, Un-buffered, XMP Support |
| RAM Slots | 2 x DIMM |
| RAM Speeds | Up to 4800 MHz |
| Maximum Memory | 96GB |
| Graphics | Integrated (depends on CPU) |
| Graphics Ports | 1 x VGA, 1 x HDMI, 1 x Display Port |
| PCI/PCI Express | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| Storage | 4 x SATA III, 2 x M.2: M.2_1 (PCIe 3.0 x4), M.2_2 (PCIe 3.0 x2) |
| LAN | Intel 1Gb Ethernet |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| USB Ports Supported | Rear: 2 x USB 10Gbps Type-A, 4 x USB 2.0 | Front: 2 x USB 5Gbps, 3 x USB 2.0 |
| Back Panel I/O Ports | 2 x USB 3.2 Gen2 Type-A, 4 x USB 2.0, 1 x Display Port, 1 x VGA, 1 x HDMI, 1 x Vertical M.2 (Key E), 1 x Intel 1Gb Ethernet, 3 x Audio jacks, 1 x PS/2 Keyboard, 1 x PS/2 Mouse |
| Internal I/O Connectors | 1 x 4-pin CPU Fan, 2 x 4-pin Chassis Fan, 1 x 24-pin Main, 1 x 8-pin +12V, 2 x M.2 (Key M), 4 x SATA 6Gb/s, 1 x USB 3.2 Gen1, 3 x USB 2.0 headers, 3 x Addressable Gen2, 2 x AURA RGB, 1 x Clear CMOS, 1 x Front Panel Audio, 1 x COM Port, 1 x S/PDIF Out, 1 x Speaker, 1 x SPI TPM (14-1 pin), 1 x System Panel (10-1 pin) |

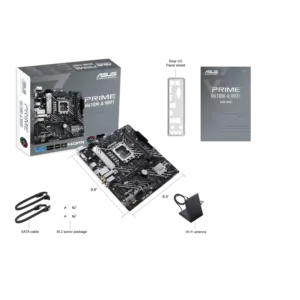

| Accessories | 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x M.2 SSD Screw Package, 1 x ACC Express Activation Key Card, 1 x User Guide |
| Package Type | Retail |
| Package Weight | 1.07 kg |
| Warranty | 3 Years |
