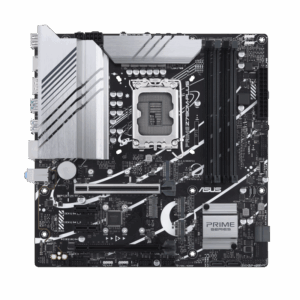

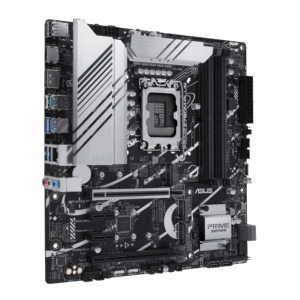

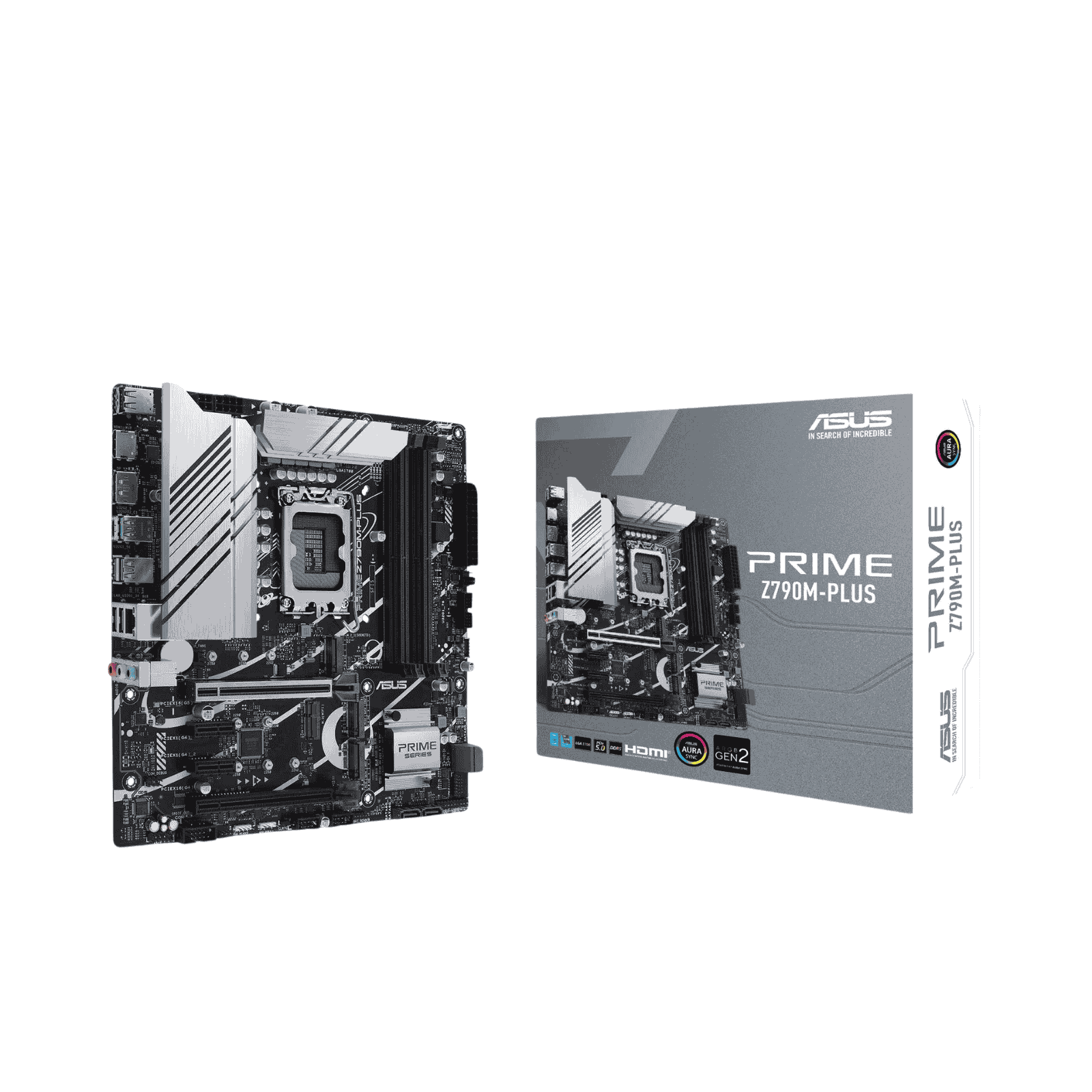

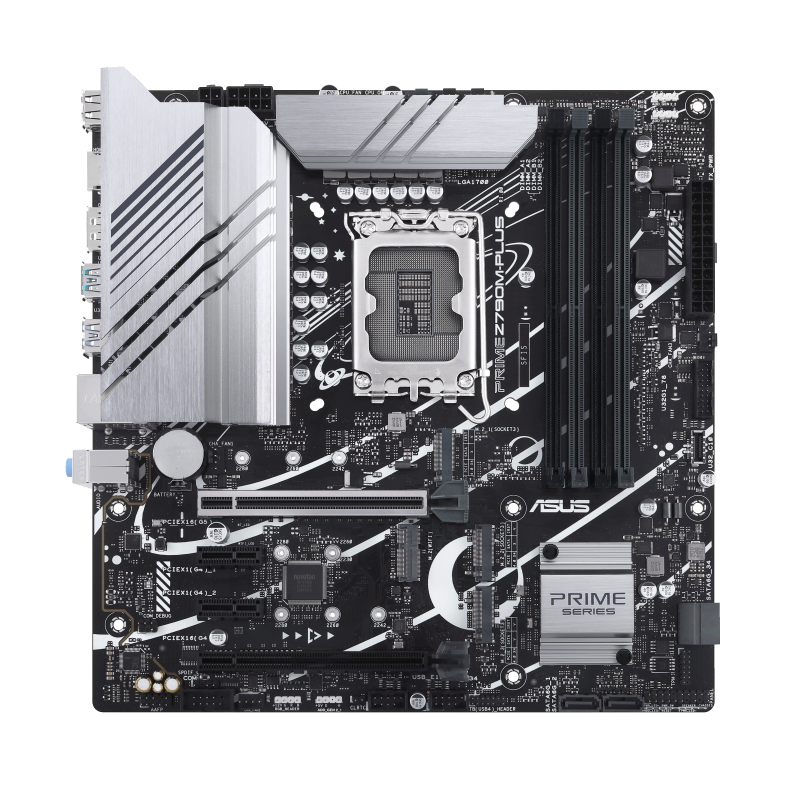

ASUS Prime Z790M-PLUS Micro ATX Motherboard for Intel LGA1700 CPUs
Original price was: £196.53.£181.98Current price is: £181.98. INC VAT
Out of stock
Out of stock
You Save: £14.55 (7%)
Key Features
- Micro ATX Form Factor
- Intel Z790 Chipset
- Socket 1700
- DDR5 (Max: 128GB / 4 slots)
- 3 x M.2 & 8 x USB & 4 x SATA
- HDMI and Display Port
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description
ASUS PRIME Z790M-PLUS Precision Micro-ATX Powerhouse for Future-Ready Performance
Designed for Modern Power Users
The ASUS PRIME Z790M-PLUS is a Micro-ATX motherboard built to empower your next-gen build with the performance and reliability of the Intel Z790 chipset. Supporting 12th and 13th Gen Intel® Core™ processors on the LGA 1700 socket, it delivers stable power with a robust 10+1 DrMOS phase design and premium-grade components. This board is equipped to handle demanding computing tasks and multitasking with up to 192GB of ultra-fast DDR5 RAM, enabling a smooth experience for creators, gamers, and power users.
Rich Connectivity and Expansion Options
Engineered with versatility in mind, the Z790M-PLUS features support for PCIe 5.0, three high-speed M.2 slots, and Intel 1Gb LAN to ensure fast and stable data access. USB 3.2 Gen 2×2 Type-C and front-panel Type-C provide enhanced connectivity, while onboard HDMI and Display Port outputs give flexible display support. Thunderbolt™ (USB4®) header support expands external connectivity, making it an excellent choice for content creators and professionals seeking high-speed data and display solutions.
Optimized Cooling and DIY Flexibility
ASUS packs this board with comprehensive cooling options including large VRM heatsinks, multiple fan headers, and AI-enhanced cooling via Fan Xpert 4. It’s equally friendly to PC builders with features like M.2 Q-Latch, Aura Sync RGB headers, and intuitive BIOS options for performance tuning. Whether you’re assembling a powerful workstation or a compact gaming rig, the PRIME Z790M-PLUS is engineered to deliver refined control, customization, and enduring performance.
| Description | Specification |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | Micro ATX |
| Socket | Intel 1700 |
| Chipset | Intel Z790 |
| DDR Type | DDR5 |
| CPU Support | Click here for CPU support |
| RAM Technology | DDR5 (Dual Channel) Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP), OptiMem II |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Up to 7200+(OC) |
| Maximum Memory | 192GB |
| Graphics | Integrated Graphics* |
| Graphics Ports | 1 x HDMI, 1 x Display Port |
| PCI/PCI Express | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (supports x4 mode), 2 x PCIe 4.0 x1 |
| Storage | 4 x SATA III, 1 x M.2 (2242/2260/2280) – PCIe 4.0 x4, 1 x M.2 (2260/2280) – PCIe 4.0 x4, 1 x M.2 (2242/2260/2280) – SATA & PCIe 4.0 x4 |
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| Wireless | – |
| LAN | GB LAN |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| USB Ports Supported | Rear: 1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 Front: 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1, 4 x USB 2.0 |
| Back Panel I/O Ports | 1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0, 1 x Display Port, 1 x HDMI, 1 x Intel 1Gb Ethernet, 3 x Audio jacks |
| Internal I/O Connectors | 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 3 x 4-pin Chassis Fan, 1 x 24-pin Main, 1 x 8-pin +12V, 1 x 4-pin +12V, 3 x M.2 (Key M), 4 x SATA 6Gb/s, 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1, 2 x USB 2.0, 3 x Addressable Gen2, 1 x Aura RGB, 1 x Clear CMOS, 1 x COM Port, 1 x Front Panel Audio, 1 x M.2 (Key E), 1 x S/PDIF Out, 1 x SPI TPM (14-1pin), 1 x 20-3 pin System Panel, 1 x Thunderbolt (USB4) |
| Accessories | 2 x SATA 6Gb/s cables, 1 x I/O Shield, 2 x Screw packages for M.2 SSD, 1 x User guide |
| Package Type | Retail |
| Package Weight | 1.5000 kg |
| Warranty | 3 Years |
