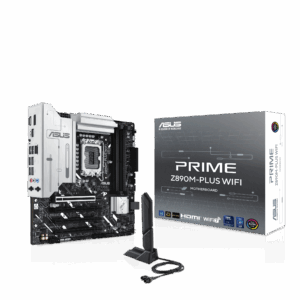

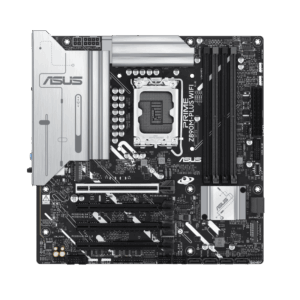

Asus PRIME Z890M-PLUS WIFI Micro ATX Motherboard for Intel Z890 CPUs
Original price was: £222.98.£206.46Current price is: £206.46. INC VAT
Out of stock
Out of stock
You Save: £16.52 (7%)
Key Features
- Form Factor: mATX
- Socket: LGA 1851
- Memory: DDR5
- Storage: 3 x M.2
- Wi-Fi: Built-in
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description
ASUS PRIME Z890M‑PLUS WIFI – Compact Powerhouse for AI‑Optimized Intel Rigs
Advanced AI PC‑Ready Platform
The ASUS PRIME Z890M-PLUS WIFI is built to unleash the full potential of Intel® Core™ Ultra Processors (Series 2) within a compact micro ATX form factor. Designed for advanced AI applications, it combines 10+1+2+1 80A DrMOS power stages with PCIe 5.0 support and blazing-fast DDR5 memory to deliver next-level performance. With ASUS-exclusive NPU Boost for enhanced AI workloads and AEMP III for maximizing memory efficiency, this board is ready for both workstations and gaming builds alike.
Next‑Gen Connectivity and DIY Friendly Features
Enjoy top-tier connectivity with WiFi 7, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 20Gbps with DisplayPort Alt Mode, and three lightning-fast M.2 slots (including PCIe 5.0 x4). The board’s pre-mounted I/O shield, BIOS FlashBack, SafeSlot PCIe 5.0, and addressable RGB headers make it a dream for PC DIY builders. With ASUS Fan Xpert 4 and a suite of personalization options, building a powerful, stable, and stylish system has never been easier.
| SPECIFICATIONS | |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | Micro ATX |
| Socket | Intel 1851 |
| Chipset | Intel Z890 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| RAM Technology | DDR5, Non-ECC, Un-buffered, CUDIMM, XMP, AEMP III, DIMM Fit |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Up to 7600+ MT/s (OC) |
| Max Memory | 256GB |
| Graphics Ports | HDMI, DisplayPort, USB 20Gbps Type-C (DP Alt Mode) |
| PCI Express | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 4.0 x16 (x1 mode) |
| Storage | 6 x SATA III, 3 x M.2 (PCIe 5.0/4.0 x4) |
| RAID Support | PCIe & SATA RAID 0/1/5/10 via Intel RST |
| LAN | Realtek 2.5Gb Ethernet |
| Wireless | Wi-Fi 7, Bluetooth v5.4 |
| USB Ports (Rear) | 1 x USB 20Gbps Type-C with DP Alt Mode, 1 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 2 x USB 2.0 |
| USB Ports (Front) | 1 x USB 5Gbps Type-C, 2 x USB 5Gbps, 4 x USB 2.0 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| RGB Lighting | Aura Sync, 3 x Addressable Gen2 RGB headers |
| DIY Features | Pre-mounted I/O Shield, BIOS FlashBack, SafeSlot PCIe, Q-Antenna, DIMM Fit |
| Accessories | 2 x SATA cables, WiFi Q-Antenna, 3 x M.2 screw packages, Quick Start Guide |
| Warranty | 3 Years |
