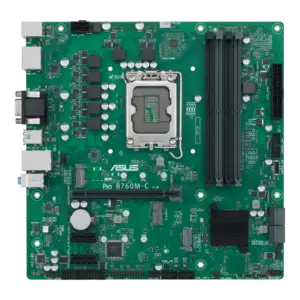

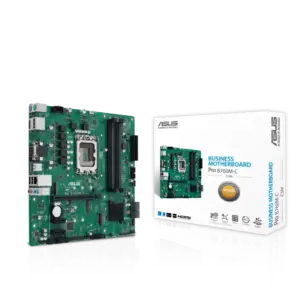

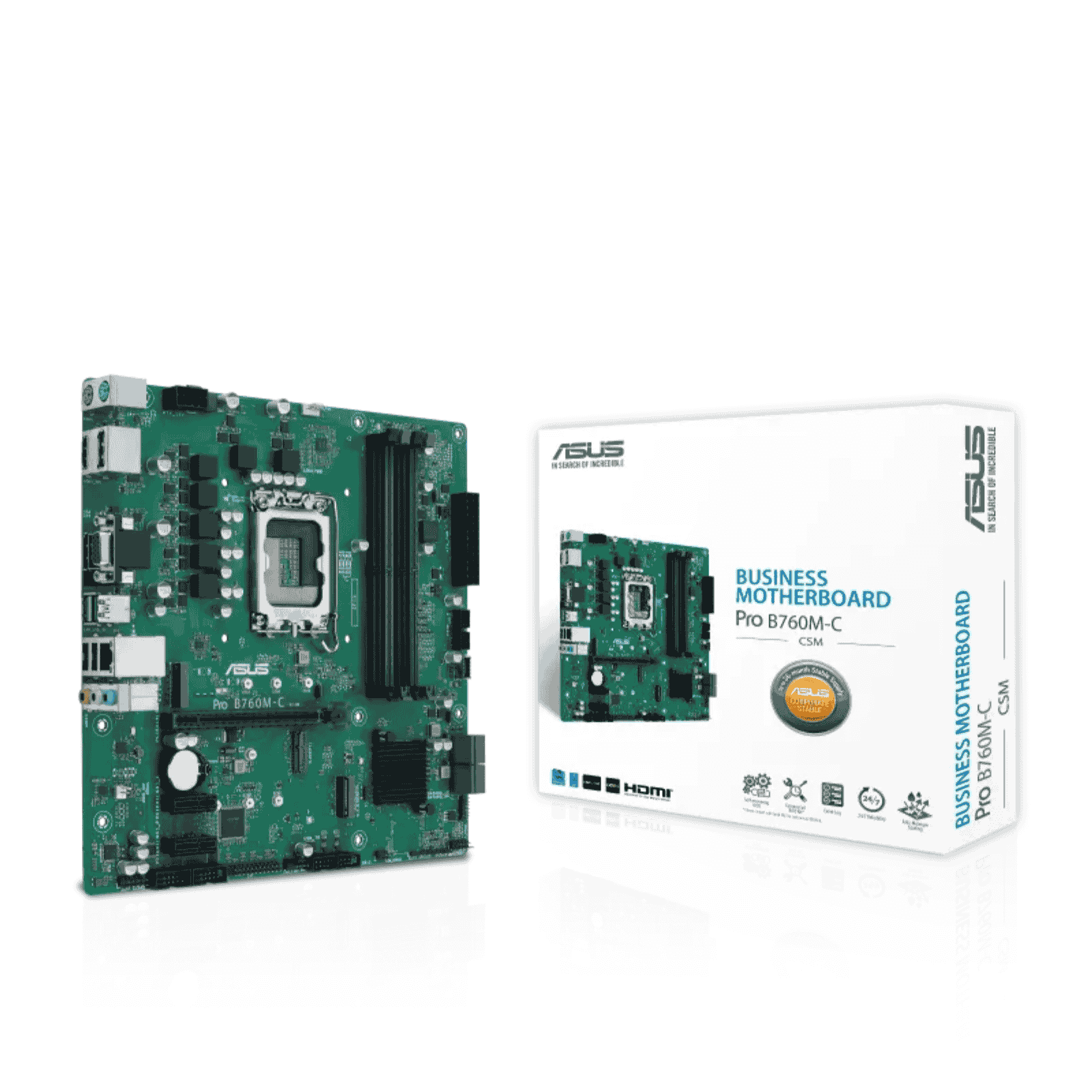

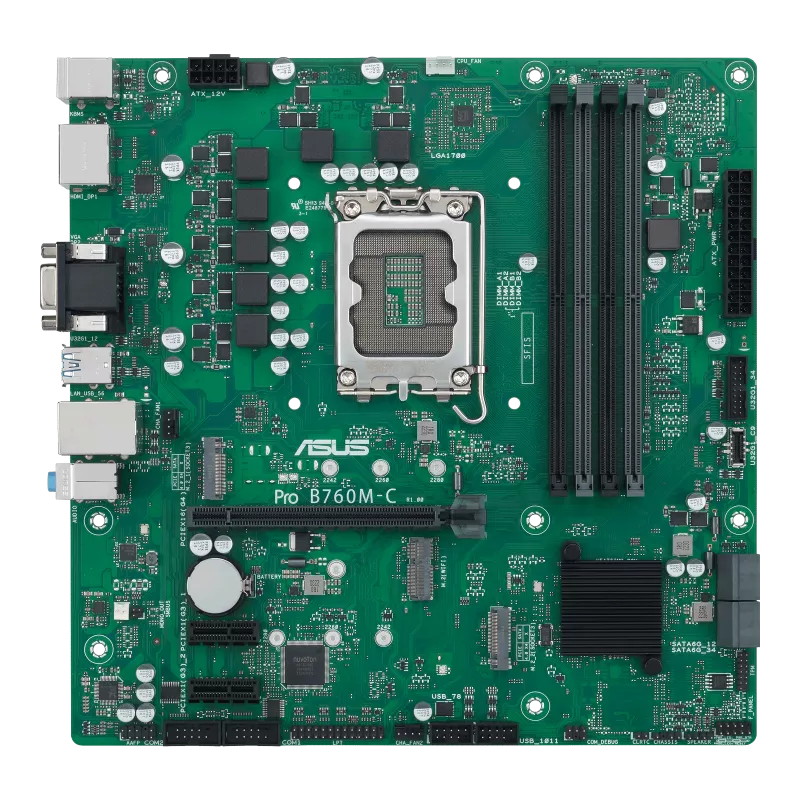

Asus PRO B760M-C-CSM – Corporate Stable Model Micro ATX Motheroard for Intel B760 CPUs
Original price was: £139.58.£129.24Current price is: £129.24. INC VAT
Out of stock
Out of stock
You Save: £10.34 (7%)
Key Features
- Form Factor: mATX
- Socket: LGA1700
- Memory: DDR5 (Max: 128GB)
- Storage: 2 x M.2, 4 x SATA
- USB: 4 port(s)
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description
ASUS PRO B760M-C-CSM – Enterprise-Grade Reliability for Corporate Efficiency
Optimized for Business Stability and Security
The ASUS PRO B760M-C-CSM motherboard is purpose-built for corporate environments that demand unmatched stability, security, and manageability. Featuring the ASUS Corporate Stable Model (CSM) program, it delivers long-term availability, end-of-life notifications, and access to ASUS Control Center Express – a $60 IT management software suite included at no additional cost. This board ensures smooth integration into IT infrastructures with features like self-recovering BIOS, secure boot, TPM, anti-moisture coating, and anti-sulfur resistors to protect against challenging environments.
Intelligent Connectivity and Serviceability Features
Designed for 13th Gen Intel® Core™ processors, this micro-ATX motherboard supports DDR5 memory and PCIe 4.0 for rapid performance and efficiency. Dual DisplayPort, HDMI, VGA, and front-panel USB 3.2 Gen 1 Type-C® ensure flexible connectivity options. With ASUS Q-LED, COM debug header, fixed connector positions, and robust hardware design including overvoltage protection and LANGuard, the PRO B760M-C-CSM is built for 24/7 enterprise performance and seamless servicing for IT professionals.
| SPECIFICATIONS | |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | Micro ATX |
| Socket | Intel 1700 |
| Chipset | Intel B760 |
| CPU Support | 13th Gen Intel Core Processors |
| RAM Technology | DDR5 (Dual Channel) |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Up to 6200 (OC) |
| Maximum Memory | 192GB |
| Graphics Ports | VGA, HDMI, 2 x DisplayPort |
| PCI/PCI Express | 1 x PCIe 4.0/3.0 x16, 2 x PCIe 3.0 x1 |
| Storage | 4 x SATA III, 2 x M.2 (PCIe) |
| RAID | Intel RST supports SATA RAID 0/1/5/10 |
| LAN | Intel 1Gb Ethernet |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC |
| Rear USB Ports | 2 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 |
| Front USB Ports | 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1, 4 x USB 2.0 |
| Internal I/O | 2 x M.2, 4 x SATA, USB 3.2 & 2.0, COM Ports, Clear CMOS, Chassis Intrude |
| Back Panel I/O | VGA, HDMI, 2 x DisplayPort, PS/2, LAN, Audio Jacks, USB Ports |
| Security Features | TPM, Secure Boot, Self-recovering BIOS, ASUS Shield |
| Management Tools | ASUS Control Center Express, Event Log, Commercial BIOS Kit |
| Accessories | 2 x SATA Cables, I/O Shield, M.2 Screws, ACC Express Key Card |
| Package Weight | 1.1000 kg |
| Warranty | 3 Years |
