Asus PRO Q870M-C-CSM, Q870 Micro ATX Motherboard for Intel LGA1851 CPUs
£192.06 Original price was: £192.06.£177.84Current price is: £177.84. INC VAT
Out of stock
Out of stock
You Save: £14.22 (7%)
Key Features
- Micro ATX Form Factor
- Intel Q870 Chipset
- Socket LGA 1851
- DDR5 (Max: 384GB / 4 slots)
- 2 x M.2 & 9 x USB & 4 x SATA
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description

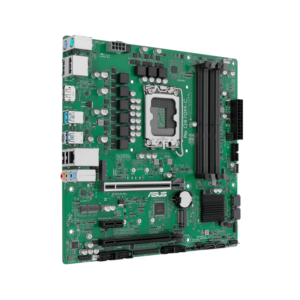

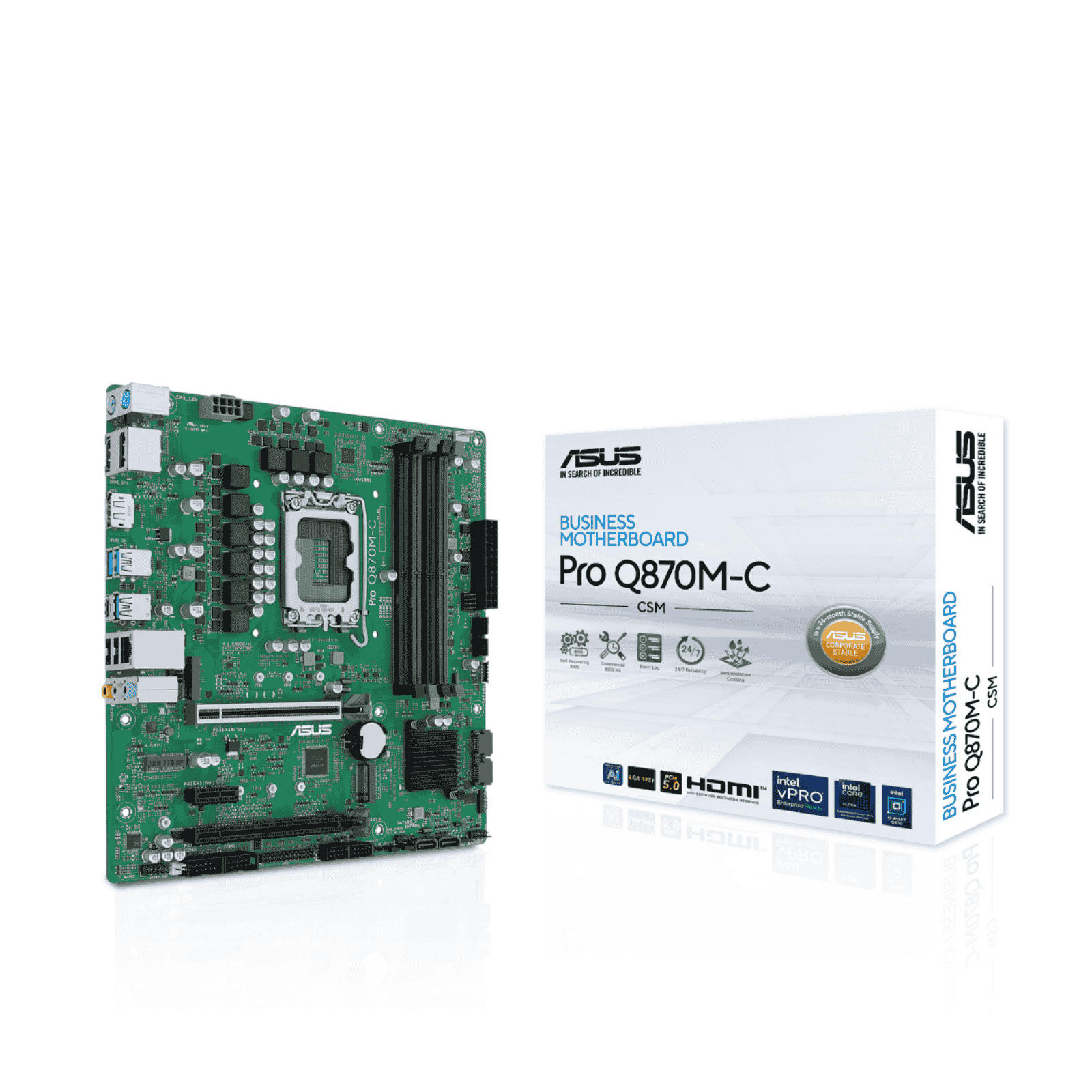

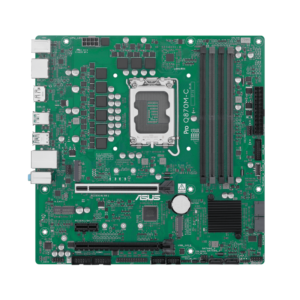

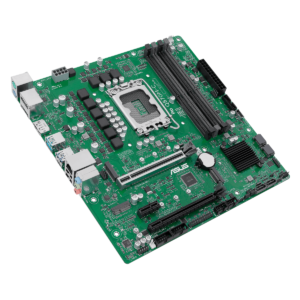

ASUS Pro Q870M-C-CSM Empowered AI Stability for Smarter Business
Designed for Business-Grade Performance
The ASUS Pro Q870M-C-CSM motherboard is purpose-built for demanding business environments, offering outstanding stability, security, and manageability. With support for Intel® Core™ Ultra Processors (Series 2) via the LGA 1851 socket and Intel® Q870 chipset, it ensures powerful performance with enterprise-level reliability. PCIe 5.0, DDR5 memory compatibility, and dual M.2 slots make it ideal for future-ready commercial computing systems that demand speed and responsiveness.
Advanced Security and Remote Management
This motherboard integrates ASUS’s enterprise security features including self-recovering BIOS, TPM header, and NIST SP 800-193 compliance to safeguard business data and operations. For IT administrators, ASUS Control Center Express simplifies device monitoring, configuration, and maintenance with centralized tools designed for secure deployment and real-time insights. The Pro Q870M-C-CSM also offers business-centric BIOS features such as event logs, commercial BIOS kits, and lifecycle support through the ASUS Corporate Stable Model (CSM) program.
Streamlined Setup and Maintenance
Built with practical enhancements like Q-LED Core diagnostics, COM debug headers, and dual DIMM clips, this board makes system assembly, upgrades, and troubleshooting easier. The inclusion of multiple USB 10Gbps Type-C and Type-A ports, along with modern HDMI and DisplayPort outputs, ensures broad compatibility with peripherals and displays. From the premium components to enterprise-ready management and installation convenience, the ASUS Pro Q870M-C-CSM delivers an ideal foundation for dependable commercial computing.
| Specification | Details |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | Micro ATX |
| Socket | Intel LGA 1851 |
| Chipset | Intel Q870 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| RAM Type | DDR5 (Dual Channel, Non-ECC, Unbuffered, Supports Intel XMP) |
| RAM Slots | 4 x DIMM |
| Max Memory | 256GB |
| Max RAM Speed | Up to 6400 MT/s |
| Graphics | Integrated (varies by CPU) |
| Graphics Ports | 1 x HDMI, 2 x DisplayPort |
| PCIe Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4), 1 x PCIe 4.0 x1 |
| Storage Options | 4 x SATA III, 2 x M.2 (PCIe 5.0 & 4.0) |
| RAID Support | Intel RST: NVMe RAID 0/1/5, SATA RAID 0/1/5/10 |
| LAN | Intel 1Gb Ethernet |
| Audio | Realtek 7.1 Surround HD Audio CODEC |
| Rear USB Ports | 1 x USB 10Gbps Type-C, 2 x USB 10Gbps Type-A, 1 x USB 5Gbps, 2 x USB 2.0 |
| Front USB Ports | 1 x USB 10Gbps Type-C, 2 x USB 5Gbps, 4 x USB 2.0 |
| Back I/O Ports | 1 x USB 10Gbps Type-C, 2 x USB 10Gbps Type-A, 1 x USB 5Gbps, 2 x USB 2.0, 2 x DisplayPort, 1 x HDMI, 1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x LAN, 3 x Audio Jacks |
| Internal Connectors | CPU Fan, Chassis Fan, 24-pin Main, 8-pin CPU, SATA, M.2, USB 10Gbps Type-C, USB 5Gbps, USB 2.0, Clear CMOS, COM Ports, LPT, Debug Header |
| Accessories | 2 x SATA Cables, M.2 Screw Kits, I/O Shield, ACC Express Card, Quick Start Guide |
| Warranty | 3 Years |
| Package Type | Retail |
| Weight | 0.889 kg |
