Key Features
- ATX Form Factor
- Intel B760 Chipset
- Socket 1700
- DDR4 (Max: 128GB / 4 slots)
- 3 x M.2 & 9 x USB & 4 x SATA
- HDMI and Display Port
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns

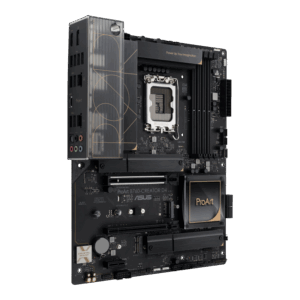

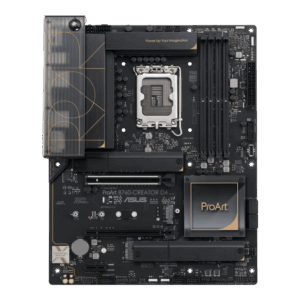

ASUS ProArt B760-CREATOR D4 ATX Motherboard for Intel LGA1700 CPUs
£158.42 Original price was: £158.42.£146.69Current price is: £146.69. INC VAT
In stock
In stock
Key Features
- ATX Form Factor
- Intel B760 Chipset
- Socket 1700
- DDR4 (Max: 128GB / 4 slots)
- 3 x M.2 & 9 x USB & 4 x SATA
- HDMI and Display Port
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description
ProArt B760-CREATOR D4 Precision Crafted for Creative Excellence
Engineered for Creative Power
The ASUS ProArt B760-CREATOR D4 is built with content creators in mind, empowering workflows like video editing, 3D rendering, and virtual production with smooth, uninterrupted performance. Supporting 13th and 12th Gen Intel Core processors, the board provides next-gen PCIe 5.0 and up to 128GB DDR4 RAM via OptiMem II technology, ensuring high bandwidth and low-latency memory access. The 12+1 power stages backed by premium components enable sustained stability under heavy loads—ideal for those who demand reliability and speed.
Advanced Connectivity for Productivity
This motherboard offers comprehensive connectivity for demanding creative setups. It features three ultra-fast M.2 slots, 4 SATA ports, dual Ethernet (2.5 Gb + 1 Gb), and a front panel USB 3.2 Gen 2×2 Type-C port for blazing-fast data transfers. HDMI and DisplayPort outputs make it easy to connect high-resolution monitors, and there’s native Thunderbolt 4 support via an add-on card, expanding the scope for professional-grade devices and docks.
Creative Tools and System Flexibility
With the included ProArt Creator Hub, creators can monitor, tune, and optimize their system’s performance in real time. The board is equipped with customizable fan controls, addressable RGB headers, and a host of onboard tools such as a Clear CMOS button and M.2 Q-Latch for quick upgrades. Whether you’re working on animation, compositing, or editing, the ProArt B760-CREATOR D4 ensures your creative tools perform at their full potential.
| Specification | Details |
|---|---|
| Motherboard Type | Server / Workstation |
| Form Factor | ATX |
| Socket | Intel 1700 |
| Chipset | Intel B760 |
| Memory Type | DDR4 (Dual Channel, Non-ECC, Un-buffered, XMP support, OptiMem II) |
| Memory Slots | 4 x DIMM |
| Max Memory | 128GB |
| CPU Support | See Supported CPUs |
| Graphics | Integrated (depends on CPU) |
| Graphics Outputs | 1 x HDMI, 1 x Display Port |
| Expansion Slots | 1 x PCIe 5.0/4.0/3.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x1 |
| Storage | 3 x M.2 (2 x PCIe 4.0 x4, 1 x PCIe 3.0 x4) 4 x SATA III |
| RAID Support | Intel Rapid Storage Technology: RAID 0/1/5/10 (SATA) |
| Networking | 2.5 Gb Ethernet (Realtek), 1 Gb Ethernet (Intel) |
| Wireless | M.2 (Key E) slot for optional Wi-Fi/Bluetooth module |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| USB Ports (Rear) | 1 x USB 3.2 Gen2 Type-C 4 x USB 3.2 Gen1 Type-A 4 x USB 2.0 |
| USB Ports (Front) | 1 x USB 3.2 Gen2x2 Type-C 2 x USB 3.2 Gen1 4 x USB 2.0 |
| Back Panel I/O | 1 x USB 3.2 Gen2 Type-C 4 x USB 3.2 Gen1 Type-A 4 x USB 2.0 1 x HDMI 1 x Display Port 1 x Realtek 2.5 Gb Ethernet 1 x Intel 1 Gb Ethernet 5 x Audio jacks 1 x Optical S/PDIF out |
| Internal Connectors | 1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 4 x 4-pin Chassis Fan 1 x 24-pin Main Power 1 x 8-pin +12V 1 x 4-pin +12V 3 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen2x2 Type-C 1 x USB 3.2 Gen1 2 x USB 2.0 |
| Other Features | 3 x Addressable Gen2 headers 1 x AURA RGB header 1 x Clear CMOS 1 x COM Port 1 x Front Panel Audio 1 x M.2 Key E slot 1 x SPI TPM (14-1 pin) 1 x System Panel (20-5 pin) 1 x Thermal Sensor header 1 x Thunderbolt header |
| Included Accessories | 2 x SATA cables 2 x M.2 Rubber packages 1 x Screw package for M.2 Key E 1 x ProArt ruler 1 x Q-Connector 1 x ACC Express Activation Key Card 1 x User guide |
| Software | ProArt Creator Hub, Fan Xpert 4, Two-Way AI Noise Cancelation, ASUS Control Center Express |
| Package Type | Retail |
| Weight | 2.03 kg |
| Warranty | 3 Years |
