Key Features
- ATX Form Factor
- AMD B550 Chipset
- Socket AM4
- DDR4 (Max: 128GB / 4 slots)
- 2 x M.2 & 8 x USB & 6 x SATA
- HDMI and Display Port
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns

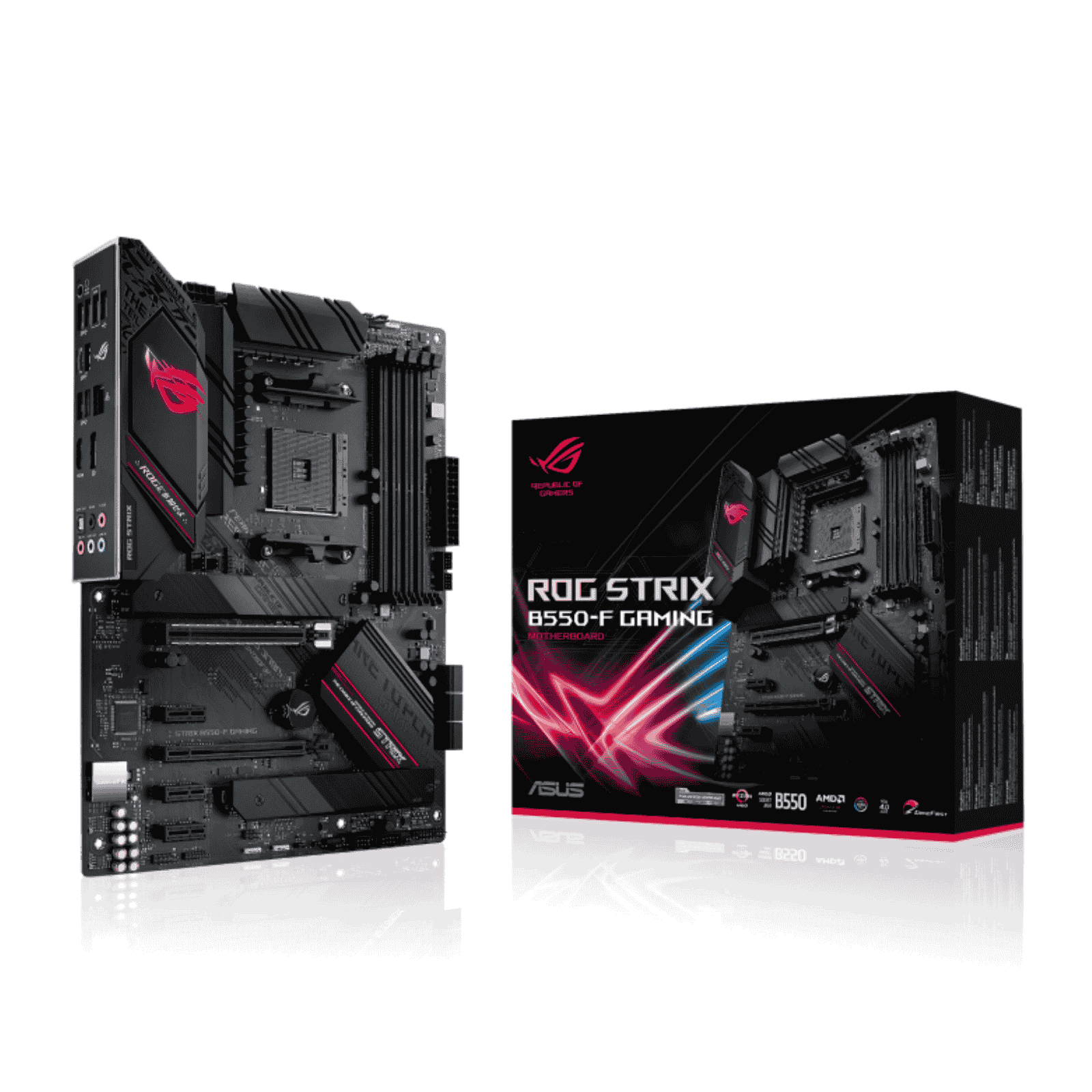

Asus ROG STRIX B550-F ATX Motherboard for AMD AM4 CPUs
Original price was: £153.28.£141.93Current price is: £141.93. INC VAT
Out of stock
Out of stock
You Save: £11.35 (7%)
Key Features
- ATX Form Factor
- AMD B550 Chipset
- Socket AM4
- DDR4 (Max: 128GB / 4 slots)
- 2 x M.2 & 8 x USB & 6 x SATA
- HDMI and Display Port
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description
ASUS ROG Strix B550-F Gaming Unleash Next-Level AM4 Performance
Designed for High-End Gaming Rigs

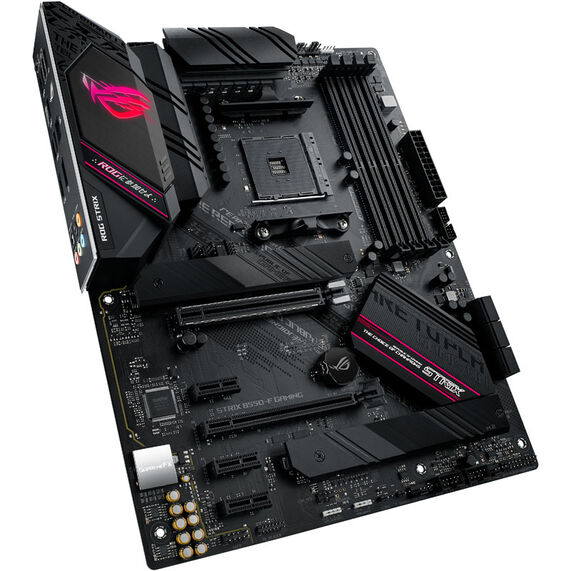

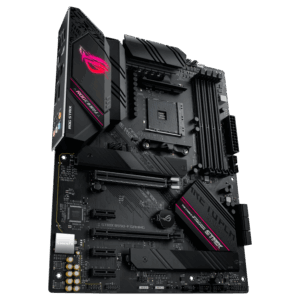

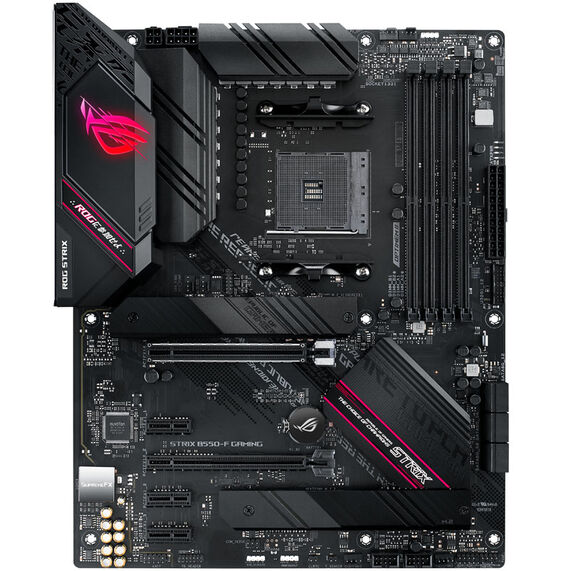

The ASUS ROG Strix B550-F Gaming ATX motherboard is engineered to harness the power of 3rd Gen AMD Ryzen processors, offering PCIe 4.0 support, dual M.2 slots, and next-gen USB 3.2 Gen 2 Type-C. It’s built to elevate every facet of your gaming setup—from ultra-fast data transfers to cutting-edge graphics and storage capabilities. With DisplayPort 1.2 and HDMI 2.1, gamers enjoy seamless multi-monitor support and stunning visuals.
Robust Power Delivery and Intelligent Design
Backed by durable alloy chokes, teamed power stages, and high-end capacitors, the ROG Strix B550-F ensures rock-solid performance under pressure. The premium thermal solution and SafeSlot design provide reliability for heavy workloads or long gaming sessions. BIOS FlashBack, Q-LEDs, and a pre-mounted I/O shield make the installation process a breeze, streamlining your custom PC build.
Immersive Audio and Aura Sync Customization
This motherboard doesn’t just perform—it impresses. SupremeFX S1220A audio and DTS Sound Unbound deliver crystal-clear output and precise in-game sound cues, while AI noise-cancellation keeps communication clear. Sync up your lighting with addressable Gen 2 headers and Aura Sync RGB support to craft a personalized aesthetic that matches your battle station.
| Motherboard Type | Desktop |
|---|---|
| Form Factor | ATX |
| Socket | AMD AM4 |
| Chipset | AMD B550 |
| RAM Type | DDR4 (Dual Channel) |
| RAM Slots | 4 x DIMM |
| Max Memory | 128GB |
| RAM Speeds | 3rd Gen Ryzen: Up to 4600(O.C.) MHz Next Gen Ryzen PRO: Up to 5100(O.C.) MHz |
| Integrated Graphics | Yes (depends on CPU) |
| Graphics Ports | 1 x HDMI, 1 x Display Port |
| Multi-GPU Support | AMD 2-Way CrossFireX |
| Expansion Slots | 1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 |
| Storage | 6 x SATA III 2 x M.2 (2242/2260/2280/22110) – SATA & PCIe |
| RAID Support | RAID 0, 1, 10 |
| LAN | Intel I225-V 2.5Gb Ethernet |
| Wireless | Not included |
| Audio | ROG SupremeFX S1220A, 8-Channel HD Audio |
| USB Ports | 2 x USB 3.2 Gen 2 (1 Type-A, 1 Type-C) 6 x USB 3.2 Gen 1 6 x USB 2.0 |

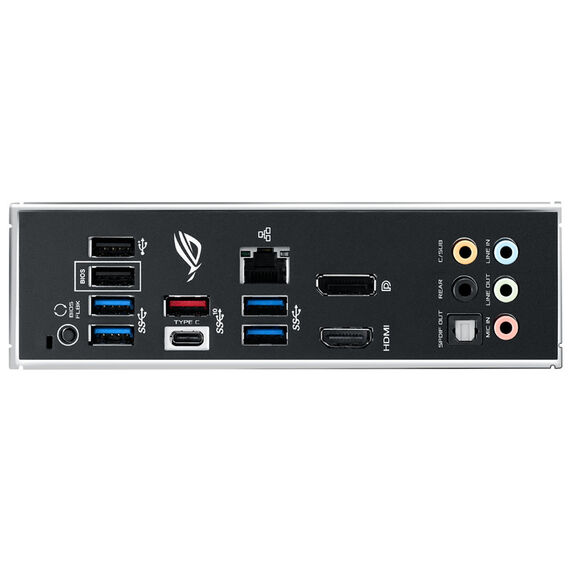

| Back Panel I/O | 1 x Display Port, 1 x HDMI 2 x USB 3.2 Gen2 (Type-A & C) 4 x USB 3.2 Gen1, 2 x USB 2.0 1 x Optical S/PDIF out, 5 x Audio jacks 1 x BIOS FlashBack Button, 1 x LAN port |
| Internal I/O | CPU/Chassis/AIO Fan headers AAFP, RGB headers (2 x Aura, 1 x Gen2) 2 x USB 3.2 Gen1, 2 x USB 2.0 2 x M.2 Sockets, 6 x SATA 6Gb/s Thunderbolt, Thermal sensor, Clear CMOS |
| Power Connectors | 24-pin EATX, 8-pin + 4-pin ATX 12V |

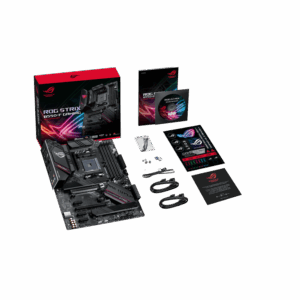

| Accessories | 4 x SATA cables ROG Strix sticker, Cable ties Addressable LED extension ROG Thank You card M.2 screws and rubber package |
| Package Weight | 1.68 kg |
| Warranty | 3 Years |
