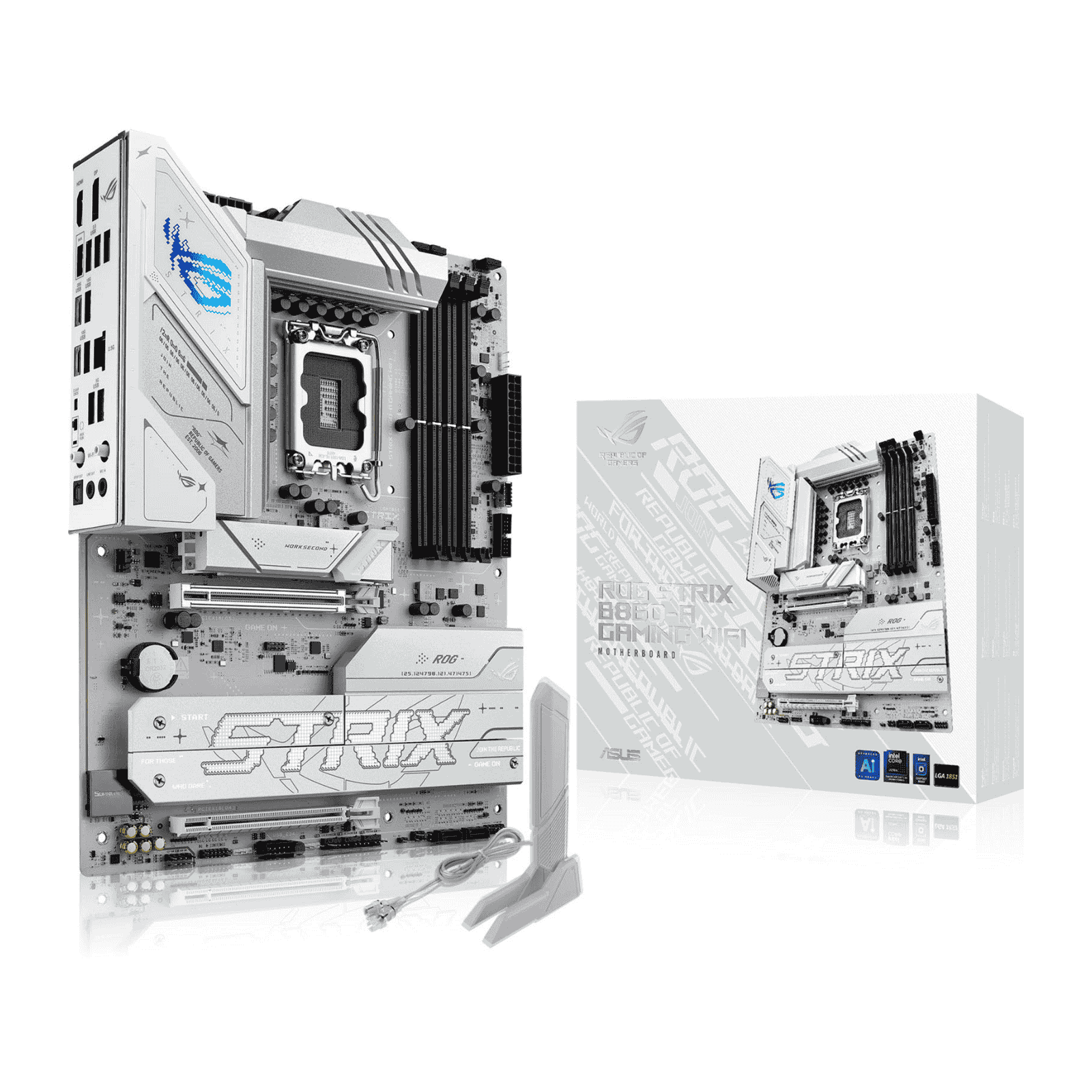

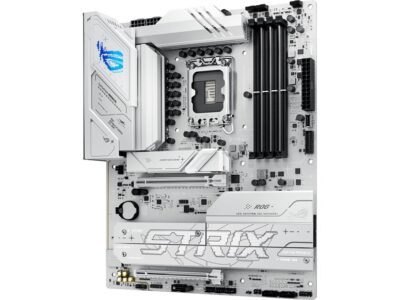

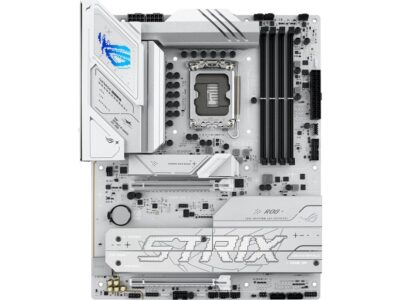

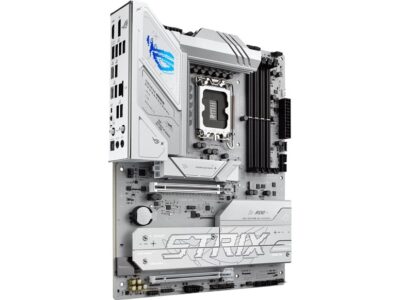

ASUS ROG STRIX B860-A Gaming WiFi
AI-enhanced, USB4®, PCIe 5.0, and WiFi 7 for cutting-edge builds
Description
With NPU support and AI-powered features, the ROG STRIX B860-A Gaming WiFi is tailored for the future of computing. It offers USB4® (20Gbps), PCIe 5.0, and Aura Sync RGB lighting in a sleek white design that matches powerful next-gen components. Advanced cooling, one-click overclocking, WiFi 7, and AI tools such as AI Advisor and AI Networking II make it ideal for creators, gamers, and professionals pushing boundaries.
Specifications
| Motherboard Type | Desktop |
|---|---|
| Form Factor | ATX |
| Socket | Intel LGA 1851 |
| Chipset | Intel B860 |
| CPU Support | Click here |
| RAM Type | DDR5 (Dual Channel), CUDIMM, Non-ECC Unbuffered, On-Die ECC |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Up to 9066MT/s (OC) |
| Max Memory | 256GB |
| Memory Features | Intel XMP, AEMP III, DIMM Fit |
| Graphics | Integrated (depends on CPU) |
| Graphics Ports | 1 x HDMI, 1 x DisplayPort, 1 x USB4 (Type-C with display output) |
| PCIe Slots | Intel Core Ultra CPUs (Series 2): 1 x PCIe 5.0 x16 Intel B860 Chipset: 1 x PCIe 4.0 x16 (x4 mode) |
| Storage | 4 x SATA III Intel Core Ultra CPUs (Series 2): M.2_1 – PCIe 5.0 x4 Intel B860 Chipset: M.2_2 – PCIe 4.0 x4 M.2_3 – PCIe 4.0 x4 (22110 supported) M.2_4 – PCIe 4.0 x4 |
| RAID Support | Intel RST supports RAID 0/1/5/10 |
| Wireless | WiFi 7 (2×2, up to 2.9Gbps), Bluetooth v5.4 |
| LAN | Intel 2.5Gb Ethernet |
| Audio | Realtek ALC1220P 7.1 HD Surround, SupremeFX, Dolby Atmos |
| Rear USB Ports | 1 x USB4 20Gbps (Type-C) 3 x USB 10Gbps (2 x Type-A, 1 x Type-C) 2 x USB 5Gbps (Type-A) 4 x USB 2.0 |
| Front USB Ports | 1 x USB 10Gbps (Type-C) 2 x USB 5Gbps 2 x USB 2.0 |
| Back Panel I/O | 1 x USB4 20Gbps (Type-C) 3 x USB 10Gbps (2 x Type-A, 1 x Type-C) 2 x USB 5Gbps (Type-A) 4 x USB 2.0 1 x HDMI 1 x DisplayPort 1 x WiFi module 1 x Intel 2.5Gb Ethernet 2 x Audio jacks 1 x Optical S/PDIF 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Internal I/O | 1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 4 x 4-pin Chassis Fan 2 x 8-pin +12V CPU 1 x 24-pin Main Power 4 x M.2 Slots (Key M) 4 x SATA 6Gb/s 1 x USB 10Gbps (Type-C) 1 x USB 5Gbps 1 x USB 2.0 3 x Addressable Gen2 RGB headers |
