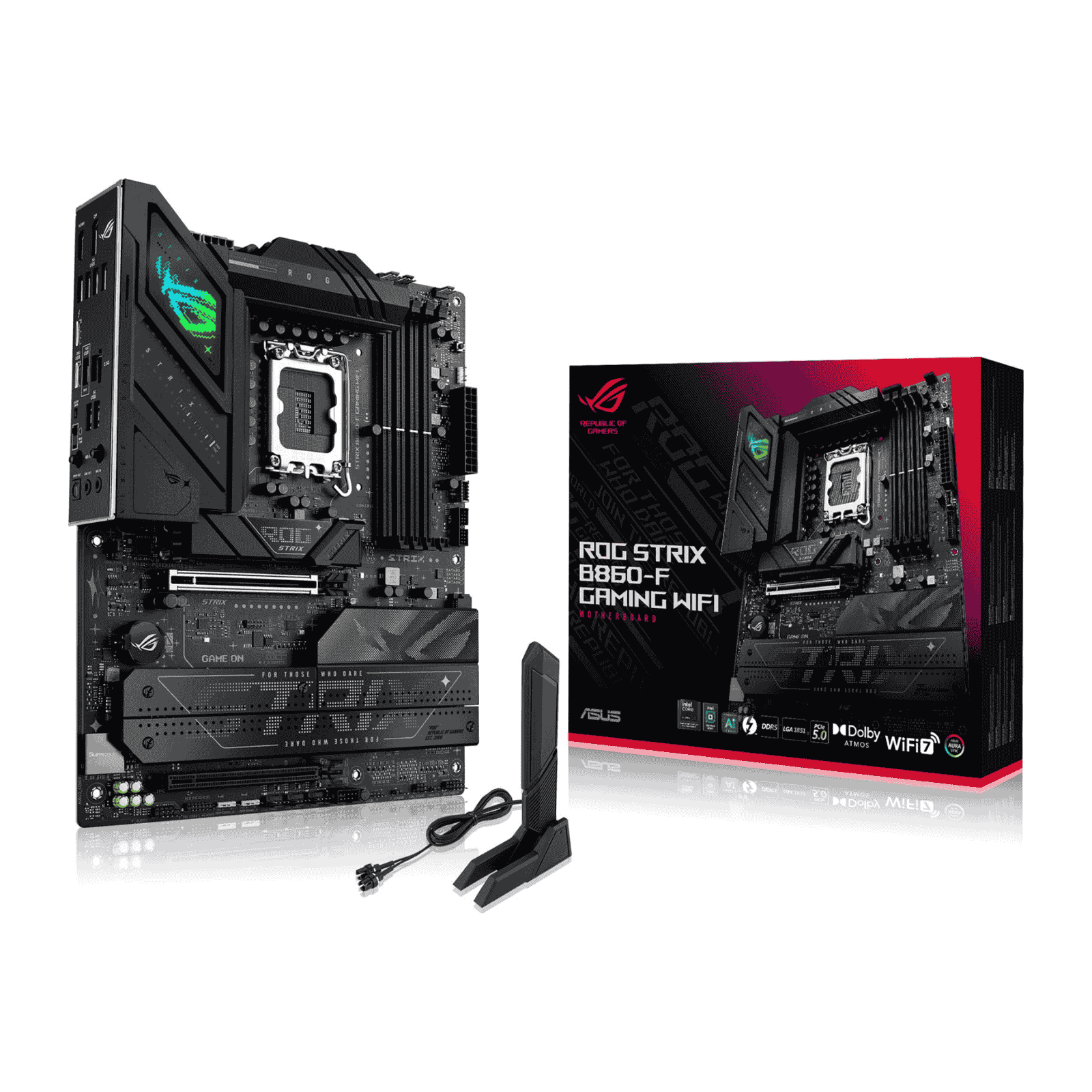

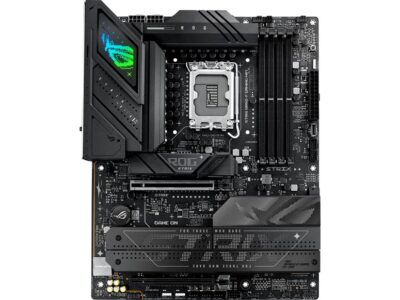

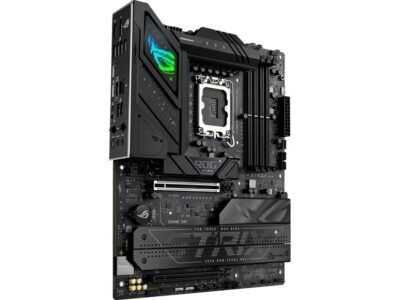

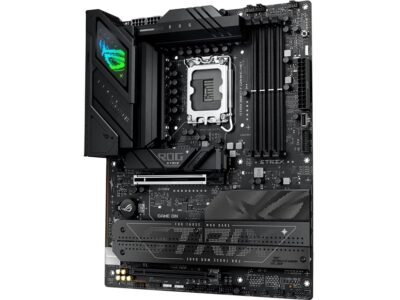

Asus ROG Strix B860-F Gaming WiFi (ATX, LGA 1851)
With NPU Boost and cutting-edge AI features, the ROG Strix B860-F Gaming WiFi is engineered for next-gen performance. Enjoy ultra-fast connectivity via Thunderbolt™ 4, PCIe® 5.0, and immersive Aura Sync lighting — all wrapped in a bold, versatile design.
Key Features
- Supports Intel® LGA 1851 CPUs on B860 chipset
- 16+1+2+1 power stages for enhanced stability
- DDR5 memory support up to 9066MT/s (OC)
- Advanced AI PC features: AI Advisor, AI Networking II, NPU Boost
- 1 x PCIe 5.0 x16 slot + 4 x M.2 slots (1x PCIe 5.0)
- WiFi 7 with ASUS Q-Antenna + 2.5Gb LAN
- Thunderbolt™ 4 and USB 20Gbps Type-C
- High-end ROG SupremeFX audio with Dolby Atmos
- Robust cooling with VRM + M.2 heatsinks
- EZ DIY features: Q-Release, Q-Latch, Q-LED, BIOS FlashBack™
Specifications
| Form Factor | ATX |
| Socket | Intel LGA 1851 |
| Chipset | Intel B860 |
| Memory Type | DDR5 (Dual Channel, up to 256GB) |
| RAM Speed (OC) | Up to 9066MT/s |
| Memory Slots | 4 x DIMM |
| Graphics Output | 1 x HDMI, 1 x DisplayPort, 1 x Thunderbolt 4 (DP out) |
| Expansion Slots | 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) |
| Storage | 4 x SATA III 4 x M.2: – M.2_1: PCIe 5.0 x4 – M.2_2/3/4: PCIe 4.0 x4 |
| RAID Support | Intel RST RAID 0/1/5/10 |
| Wireless | Wi-Fi 7 (802.11be), Bluetooth 5.4 |
| LAN | Intel 2.5Gb Ethernet |
| Audio | ROG SupremeFX 7.1, ALC4080, Dolby Atmos |

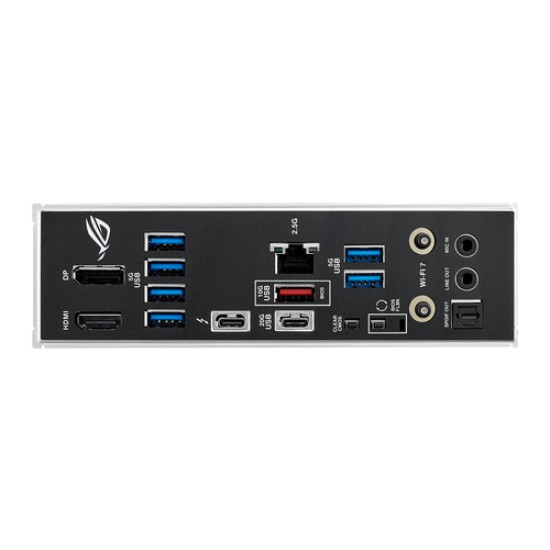

| Rear USB Ports | 1 x Thunderbolt 4 (Type-C) 1 x USB 20Gbps Type-C 1 x USB 10Gbps Type-A 6 x USB 5Gbps Type-A |
| Front USB Ports | 1 x USB 10Gbps Type-C 2 x USB 5Gbps 3 x USB 2.0 |
| Internal Headers | 1 x 24-pin Main 2 x 8-pin CPU 4 x M.2 4 x SATA 6Gb/s 4 x 4-pin Fan 1 x CPU OPT, 1 x AIO Pump USB: 1 x 10Gbps Type-C, 1 x 5Gbps, 2 x USB 2.0 3 x Gen2 ARGB headers |
| Special Features | – AI Advisor, AI Networking II, NPU Boost – DIMM FIT, AEMP III – Q-Release, Q-Latch, Q-Slide, Q-Antenna – BIOS Q-Dashboard, BIOS FlashBack™, Clear CMOS – Armoury Crate, TurboV Core, AIDA64 Extreme (60-day trial) |
