Description

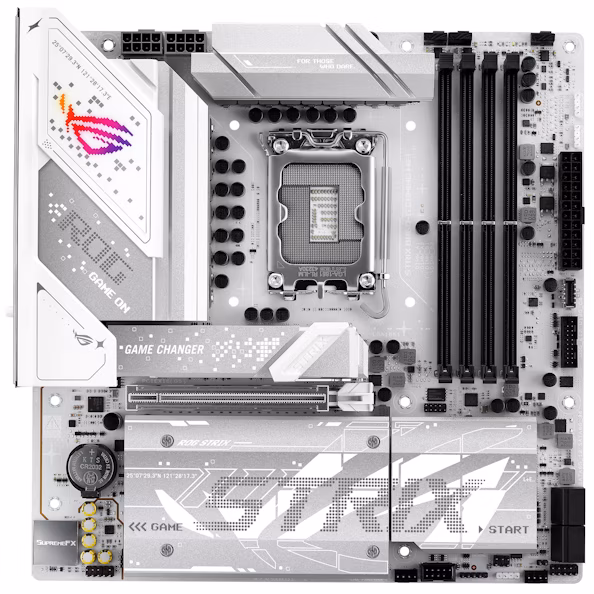

ROG Strix B860-G Gaming WiFi Motherboard
Featuring Thunderbolt™ 4, PCIe® 5.0, and Aura Sync lighting, the ROG Strix B860-G delivers ultra-fast data transfers, robust connectivity, and customizable aesthetics. Designed for elite gaming and advanced AI computing, it brings cutting-edge features and raw performance into a compact mATX form factor.
Key Features
- Intel® B860 LGA 1851 mATX form factor
- 14+1+2+1 power stages with 80A VRMs
- DDR5 support up to 9066 MT/s (OC), AEMP III
- Advanced AI PC capabilities: AI Advisor, AI Networking II
- WiFi 7 & Intel 2.5Gb Ethernet with Q-Antenna
- 4 x M.2 slots (PCIe 5.0 x4 support)
- Thunderbolt™ 4, USB 20Gbps Type-C®, HDMI & DP outputs
- PCIe 5.0 x16 SafeSlot with Q-Release Slim
- NPU Boost, asynchronous clock for OC flexibility
- ROG cooling solutions: VRM and M.2 heatsinks, fan headers
- Aura Sync RGB, Armoury Crate support
Specifications
| Motherboard Type | Desktop |
|---|---|
| Form Factor | Micro ATX |
| Socket | Intel 1851 |
| Chipset | Intel B860 |
| Memory Type | DDR5 (Dual Channel, Non-ECC, Unbuffered, CUDIMM) |
| RAM Slots | 4 x DIMM |
| RAM Speed (OC) | Up to 9066MT/s |
| Max Memory | 256GB |
| Graphics Support | Integrated (varies by CPU) |
| Display Outputs | 1 x HDMI, 1 x DisplayPort, 1 x Thunderbolt 4 |
| PCIe Slots | 1 x PCIe 5.0 x16 |
| Storage | 4 x SATA III 4 x M.2 CPU (Series 2): M.2_1 – PCIe 5.0 x4 Chipset: M.2_2, M.2_3, M.2_4 – PCIe 4.0 x4 |
| RAID | SATA RAID 0/1/5/10 (Intel RST) |
| Wireless | Wi-Fi 7, Bluetooth v5.4 |
| LAN | Intel 2.5Gb Ethernet |
| Audio | Realtek ALC1220P 7.1 HD Audio with SupremeFX & Dolby Atmos |
| USB (Rear) | 1 x Thunderbolt 4 (Type-C) 1 x USB 20Gbps (Type-C) 1 x USB 10Gbps (Type-A) 3 x USB 5Gbps (Type-A) 4 x USB 2.0 |
| USB (Front) | 1 x USB 10Gbps (Type-C) 2 x USB 5Gbps 3 x USB 2.0 |

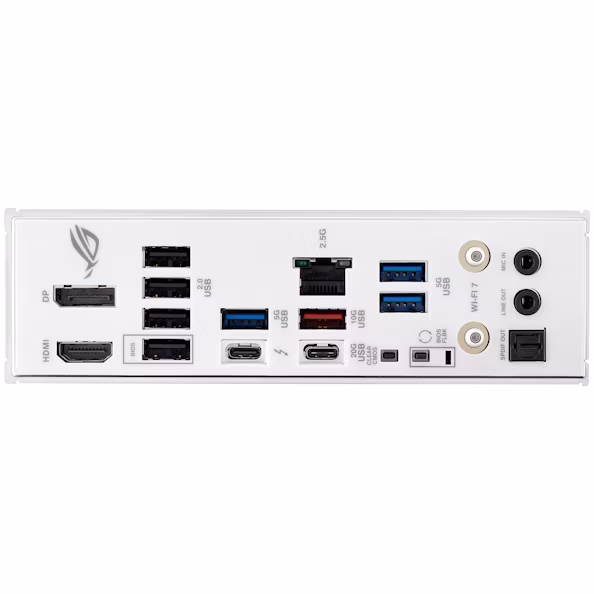

| Back Panel I/O | 1 x Thunderbolt 4 (Type-C) 1 x USB 20Gbps (Type-C) 1 x USB 10Gbps (Type-A) 3 x USB 5Gbps (Type-A) 4 x USB 2.0 1 x HDMI, 1 x DisplayPort 1 x Intel 2.5Gb LAN 1 x Wi-Fi Module 2 x Audio Jacks, 1 x Optical S/PDIF 1 x BIOS FlashBack, 1 x Clear CMOS |
| Internal I/O | 1 x 24-pin Main, 2 x 8-pin CPU 1 x CPU Fan, 1 x CPU OPT Fan 1 x AIO Pump, 2 x Chassis Fan 4 x SATA 6Gb/s 4 x M.2 (Key M) + 1 x Vertical M.2 (Key M) 1 x USB 10Gbps (Type-C), 1 x USB 5Gbps 2 x USB 2.0 |
