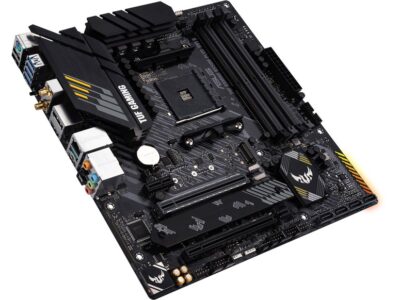

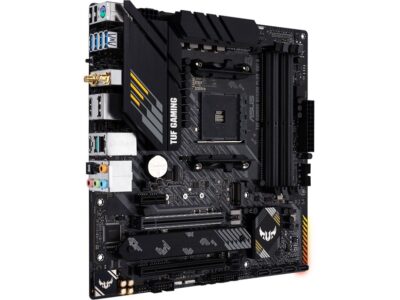

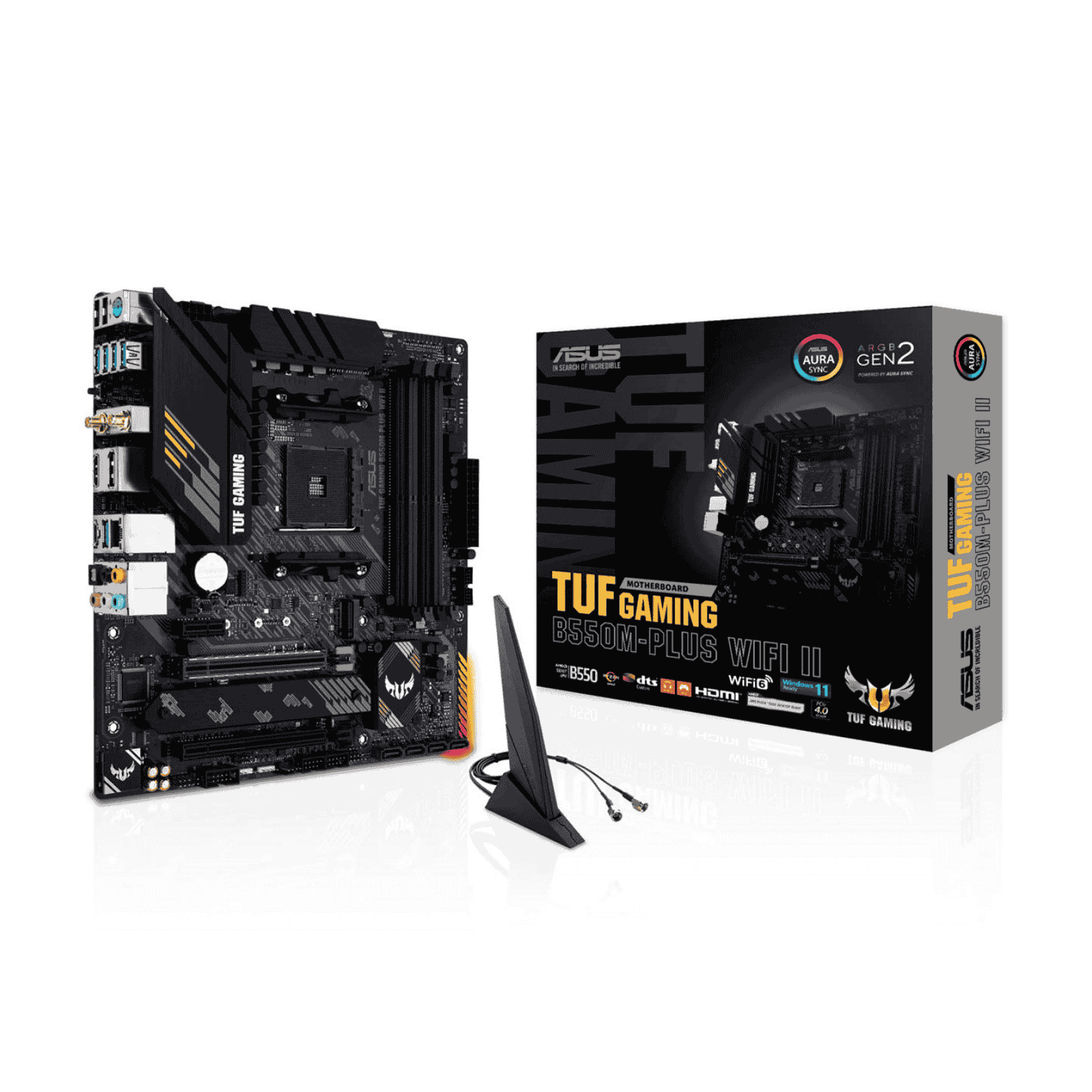

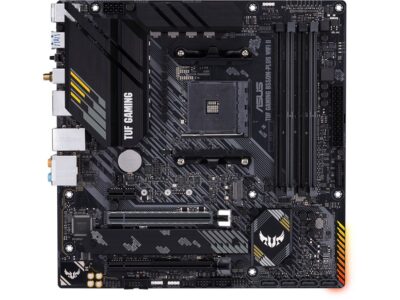

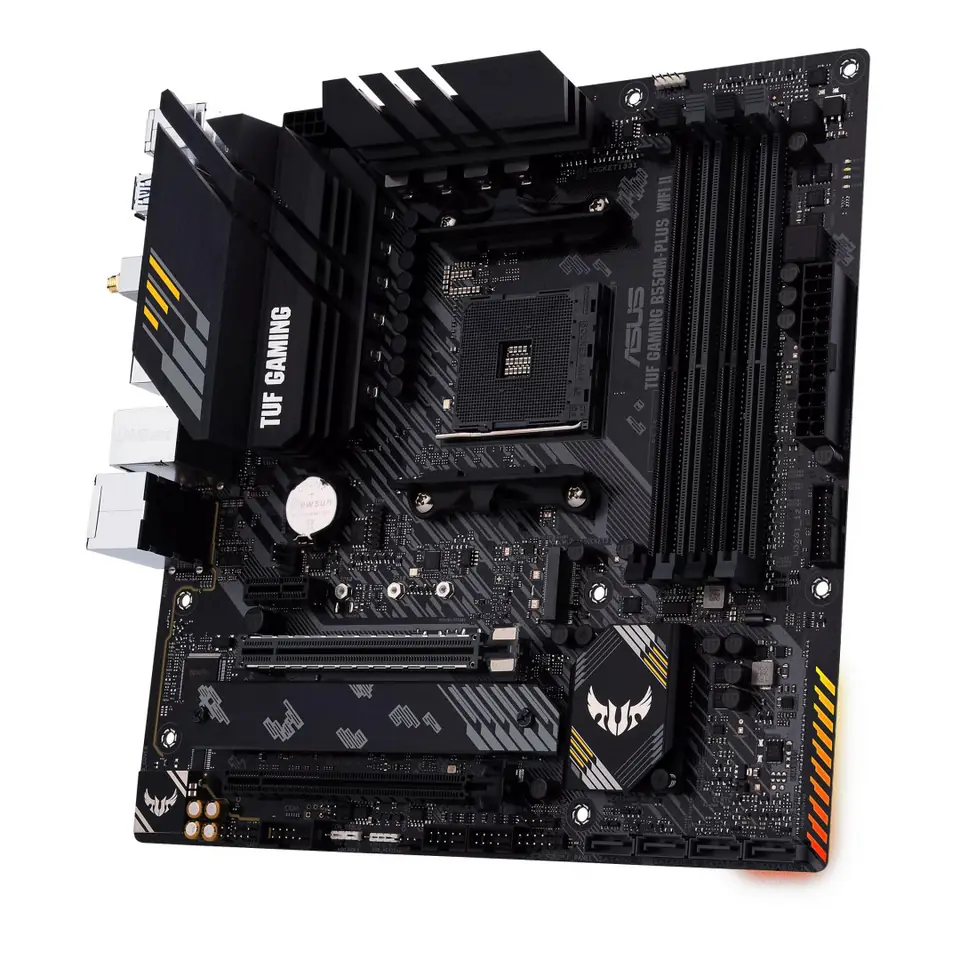

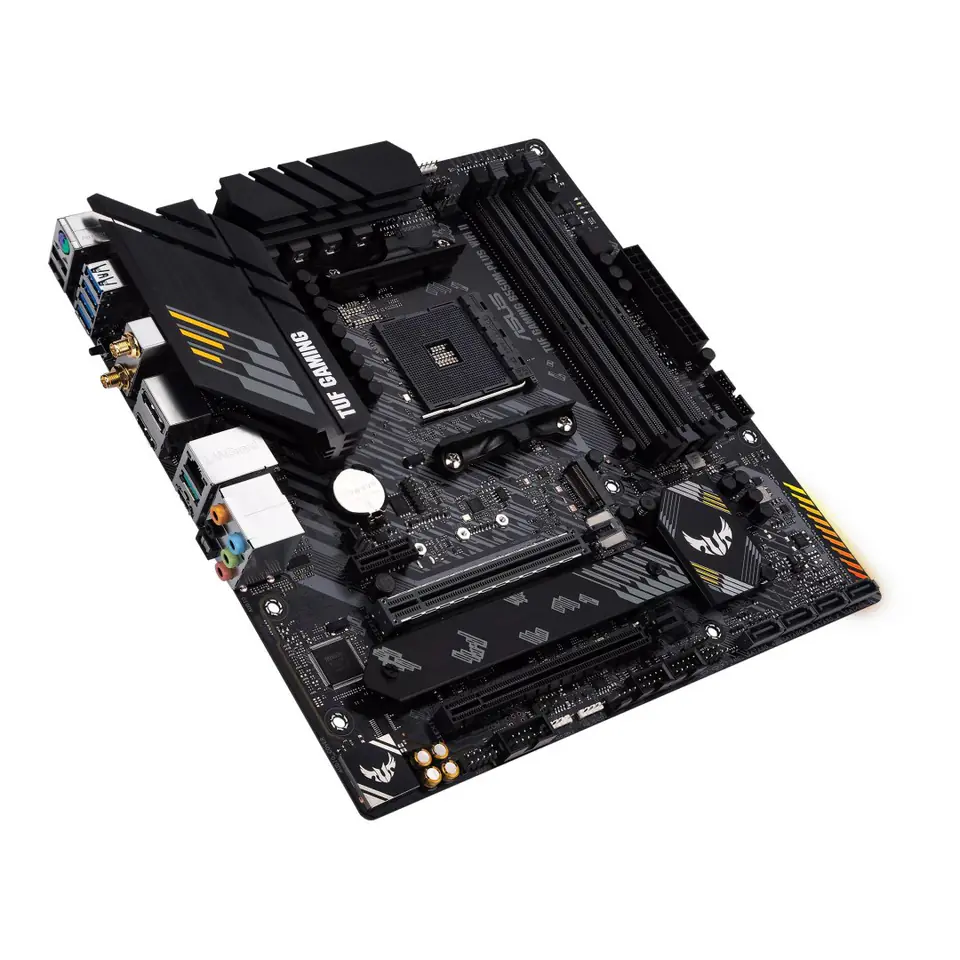

ASUS TUF GAMING B550M-PLUS WIFI II Micro ATX Motherboard for AMD AM4 CPUs
Original price was: £131.69.£121.94Current price is: £121.94. INC VAT
Out of stock
Out of stock
You Save: £9.75 (7%)
Key Features
- Micro ATX Form Factor
- AMD B550 Chipset
- Socket AM4
- DDR4 (Max: 128GB / 4 slots)
- 2 x M.2 & 8 x USB & 4 x SATA
- HDMI and Display Port
Shipping & Delivery
-
Standard Delivery
Our courier will deliver to the specified address
5-7 Working Days
From £4.99
-
Express Delivery
DHL courier will deliver to the specified address
2-3 Working Days
From £9.99
-
Free 30-Day returns
Description
ASUS TUF GAMING B550M-PLUS WIFI II Dominates with Durability and Speed
Built for Resilience and Power
The ASUS TUF GAMING B550M-PLUS WIFI II delivers the ultimate blend of durability, stability, and next-gen performance for AMD Ryzen builds. Reinforced with military-grade components and designed to excel under pressure, this Micro ATX motherboard stands ready for intense gaming marathons. Its comprehensive cooling options and high-end power stages ensure you stay stable during demanding tasks, while its compact size offers flexibility for smaller rigs without compromising on quality.
Performance That Powers Victory
Featuring PCIe 4.0 support, dual M.2 slots, and 10 DrMOS power stages, the B550M-PLUS WIFI II is optimized for high-core count Ryzen CPUs, enabling seamless multitasking, fast boot times, and high-speed data access. With ultra-low latency from the integrated 2.5 Gb LAN and Wi-Fi 6, plus support for up to 128GB of DDR4 memory at 4866MHz (OC), this board is a performance beast tuned for next-gen games and workloads.
Simplified Setup with Immersive Features
From first-time PC builders to seasoned enthusiasts, the TUF Gaming Alliance ecosystem ensures easy DIY assembly with wide compatibility. ASUS Armoury Crate provides centralized control over RGB lighting and system settings, while advanced connectivity options like USB 3.2 Gen 2, HDMI, DisplayPort, and Bluetooth 5.2 bring immersive gaming and productivity to life. The TUF GAMING B550M-PLUS WIFI II is more than a motherboard—it’s a full-featured command center for your next gaming PC.
| Specification | Details |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | Micro ATX |
| Socket | AMD AM4 |
| Chipset | AMD B550 |
| DDR Type | DDR4 |
| CPU Support | Click here for CPU support |
| RAM Technology | DDR4 (Dual Channel) |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Up to 4866 (OC) |
| Maximum Memory | 128GB |
| Graphics | Integrated Graphics Processor (Graphics specifications may vary between CPU types) |
| Graphics Ports | 1 x HDMI, 1 x Display Port |
| PCI/PCI Express | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 |
| Storage | 4 x SATA III, 1 x M.2 (2242/2260/2280) – SATA & PCIe, 1 x M.2 (2242/2260/2280/22110) – SATA & PCIe |
| RAID | Support RAID 0, 1, 10 |
| Wireless | 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth 5.2 |
| LAN | 2.5GB LAN |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| USB Ports Supported | 2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back), 6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board), 6 x USB 2.0 (2 at back, 4 at mid-board) |
| Back Panel I/O Ports | 2 x USB 3.2 Gen2 (Type-A & C), 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0, 1 x Display Port, 1 x HDMI, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet, 5 x Audio jacks, 1 x Optical S/PDIF out, 1 x BIOS FlashBack button, 1 x PS/2 Keyboard/Mouse combo |
| Internal I/O Connectors | 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 2 x 4-pin Chassis Fan, 1 x 24-pin Main, 1 x 8-pin +12V, 2 x M.2 (Key M), 4 x SATA 6Gb/s, 1 x USB 3.2 Gen1, 2 x USB 2.0, 1 x Addressable Gen2, 2 x AURA RGB, 1 x Clear CMOS |
| Package Type | Retail |
| Package Weight | 1.4600 kg |
| Warranty | 3 Years |
| Accessories | 2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x M.2 Rubber package, 1 x M.2 SSD screw package, 1 x TUF Gaming sticker, 1 x Support DVD, 1 x TUF Certification card, 1 x User guide |
