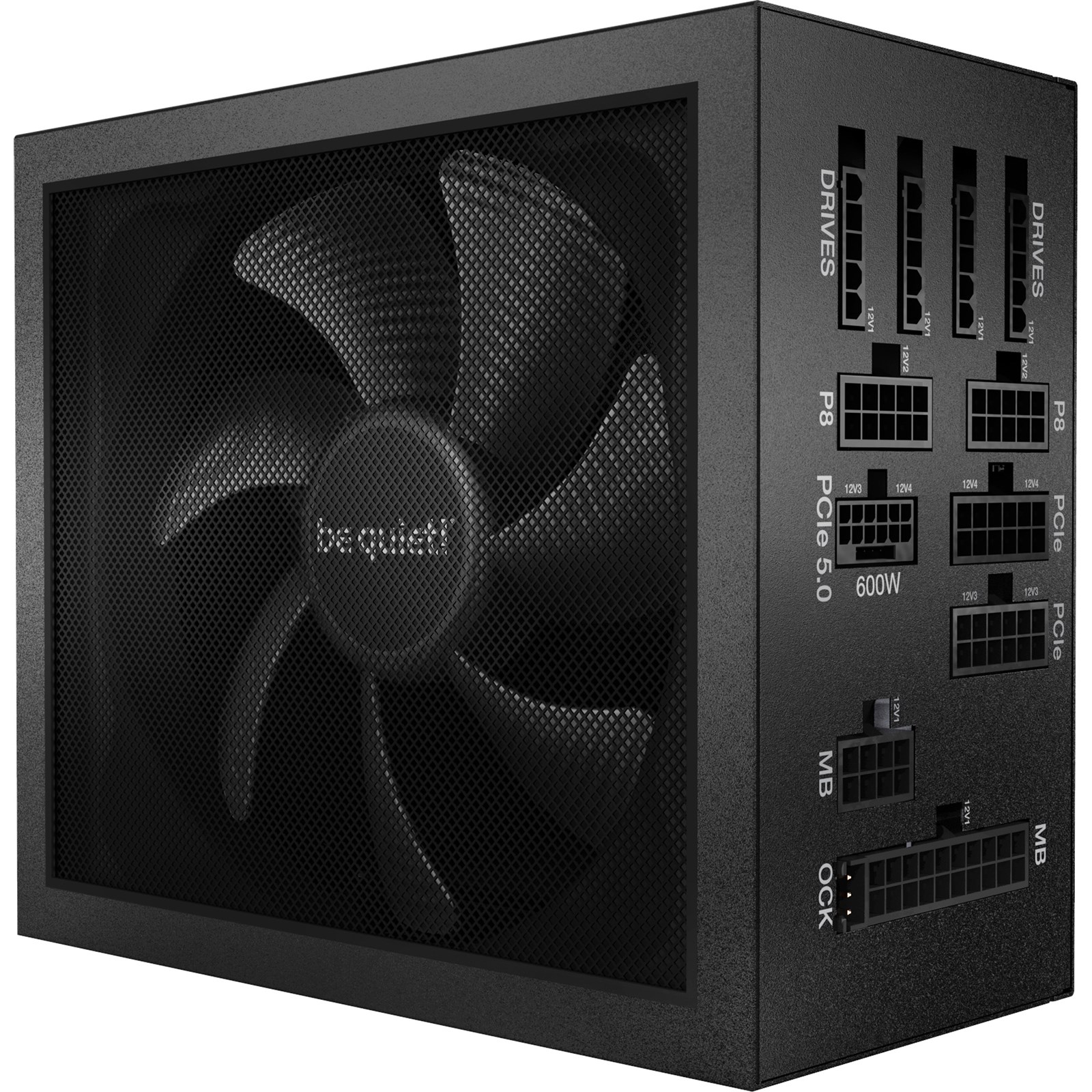

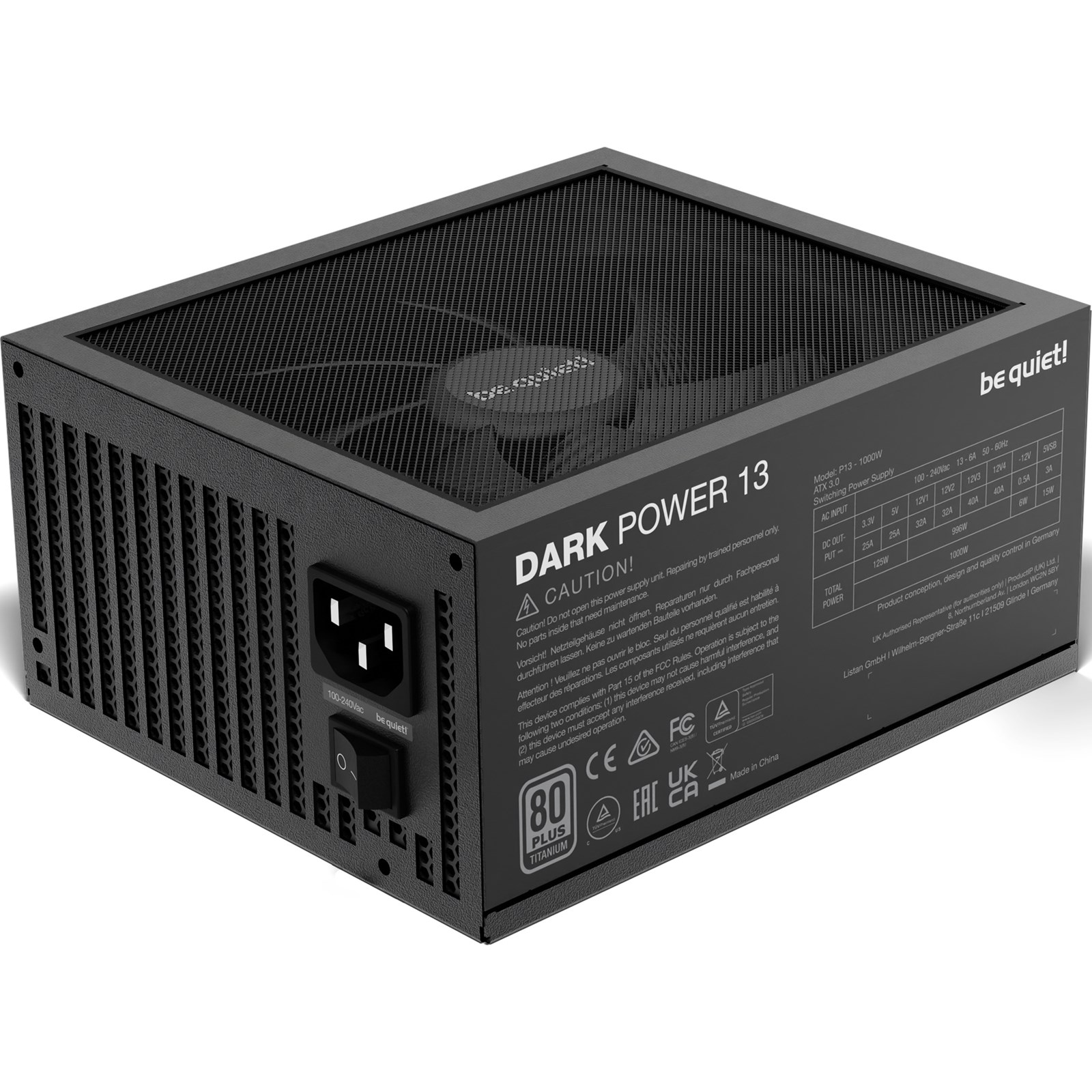

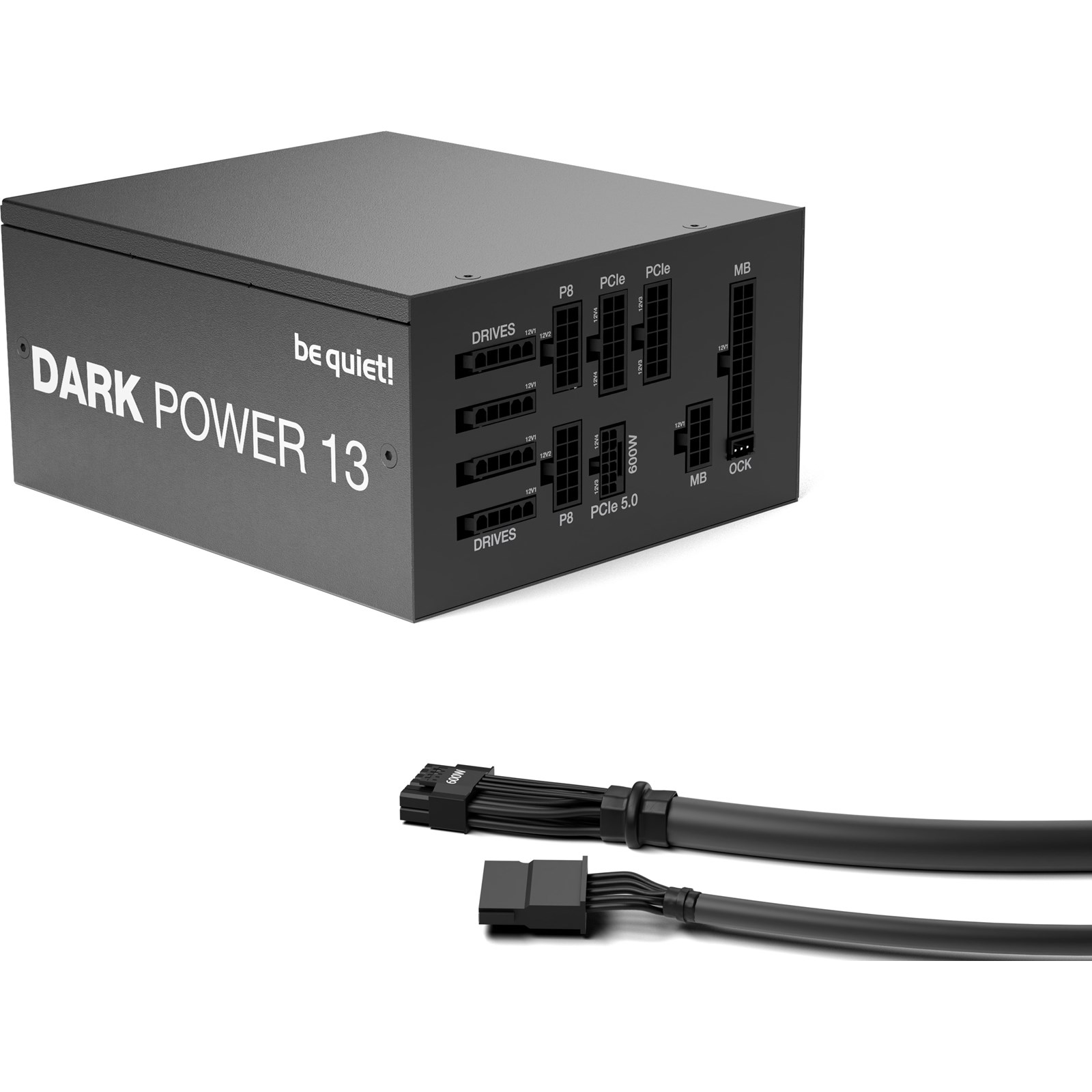

Be Quiet! 1000W Dark Power 13 PSU, Fully Modular, Fluid Dynamic Fan, 80+ Titanium, ATX 3.0, PCIe 5.0, Quad Rail, Full-Mesh PSU Front, OC Key

Be Quiet! Dark Power 13 1000W – Ultimate Silence Meets Titanium Efficiency

Premium Performance. Whisper-Quiet Operation. Next-Gen Ready.
The Be Quiet! Dark Power 13 1000W is an ultra-efficient, fully modular PSU engineered for demanding high-performance builds. Compliant with ATX 3.0 and PCIe 5.0 standards, it delivers clean, stable power to next-gen GPUs and CPUs. Featuring a 135mm Silent Wings fan and 80 PLUS Titanium certification, this power supply combines cutting-edge efficiency with virtually silent cooling.

Key Specifications

• Form Factor: ATX

• Series: Dark Power 13

• Wattage: 1000W

• Modularity: Fully Modular

• ATX Version: ATX 3.0

• EPS Version: 12V v2.92

Connectors

• 1 × 20+4-pin ATX (Motherboard)

• 1 × 4+4-pin EPS (CPU)

• 1 × 8-pin EPS (CPU)

• 1 × 12VHPWR (600W, native PCIe 5.0 GPU support)

• 4 × 6+2-pin PCIe (GPU)

• 13 × SATA

• 3 × PATA

Rail Design

• OC Key switch allows toggling between four independent 12V rails and one single high-performance rail, offering flexibility for overclocking or standard setups.

Cooling

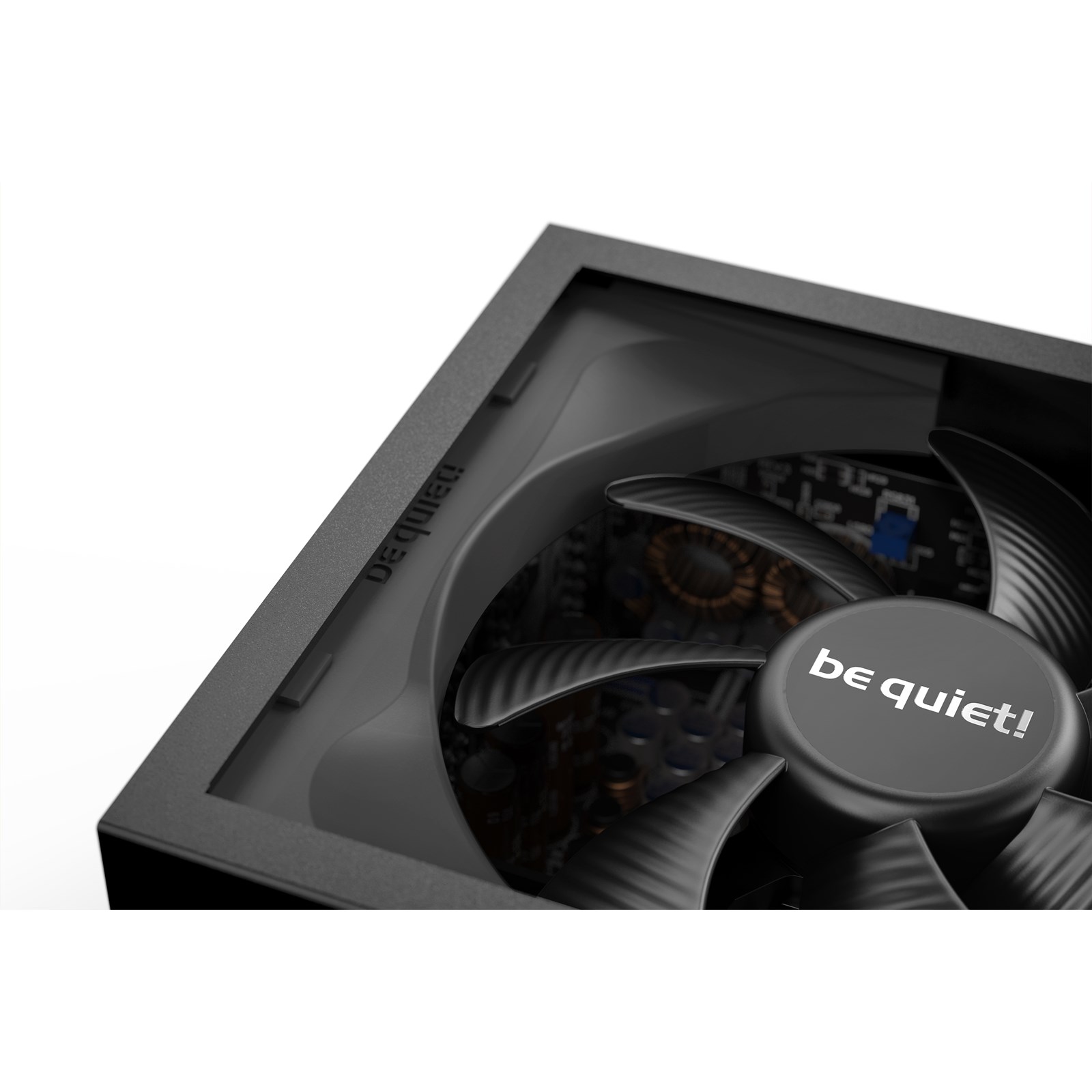

• Fan Type: 135mm Silent Wings

• Bearing: Fluid/Hydraulic Bearing

• Noise Levels:

  • 10% Load: 8.1 dB(A)

  • 20% Load: 8.1 dB(A)

  • 50% Load: 8.6 dB(A)

  • 100% Load: 25.8 dB(A)

Efficiency & Certification

• Certification: 80 PLUS Titanium

• Efficiency (230V):

  • 2% Load: 72%

  • 10% Load: 90.7%

  • 20% Load: 94.8%

  • 50% Load: 95.2%

  • 100% Load: 93.3%

• Power Factor Correction: Active PFC

• Mean Time Between Failures (MTBF): 100,000 hours

Protection Features

• Over Current Protection (OCP)

• Over Voltage Protection (OVP)

• Under Voltage Protection (UVP)

• Short Circuit Protection (SCP)

• Over Temperature Protection (OTP)

• Over Power Protection (OPP)

• Surge & Inrush Protection

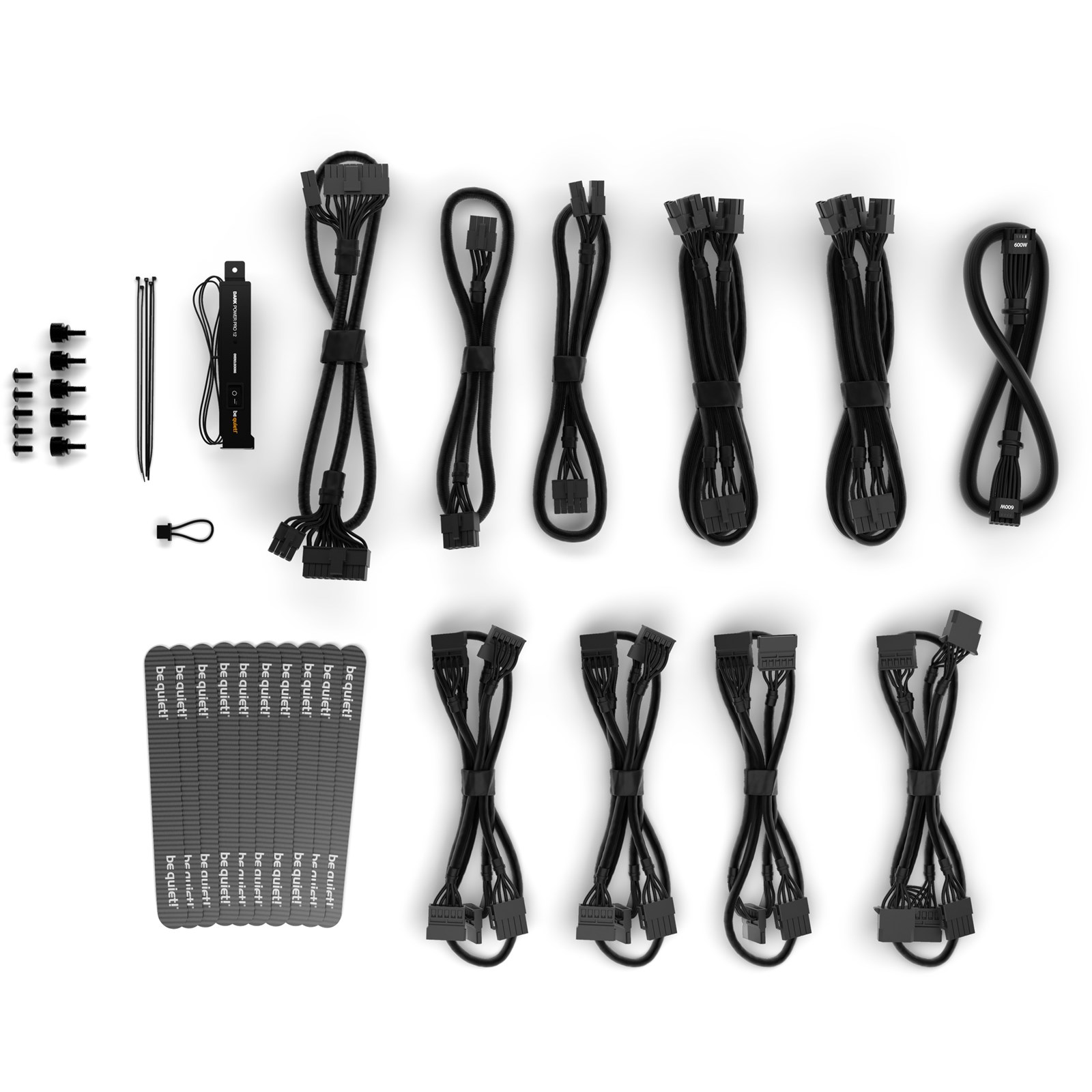

What’s in the Box

• Dark Power 13 1000W PSU

• Mounting Screws & Thumb Screws

• Cable Ties & Velcro Straps

• Storage Pouch for PSU & Cables

Physical Specs

• Dimensions (L x W x H): 175 × 150 × 86 mm

• Weight (PSU only): 2.03 kg

• Total Package Weight: 4.45 kg

Warranty: 10 Years
