Impressive lighting and airflow

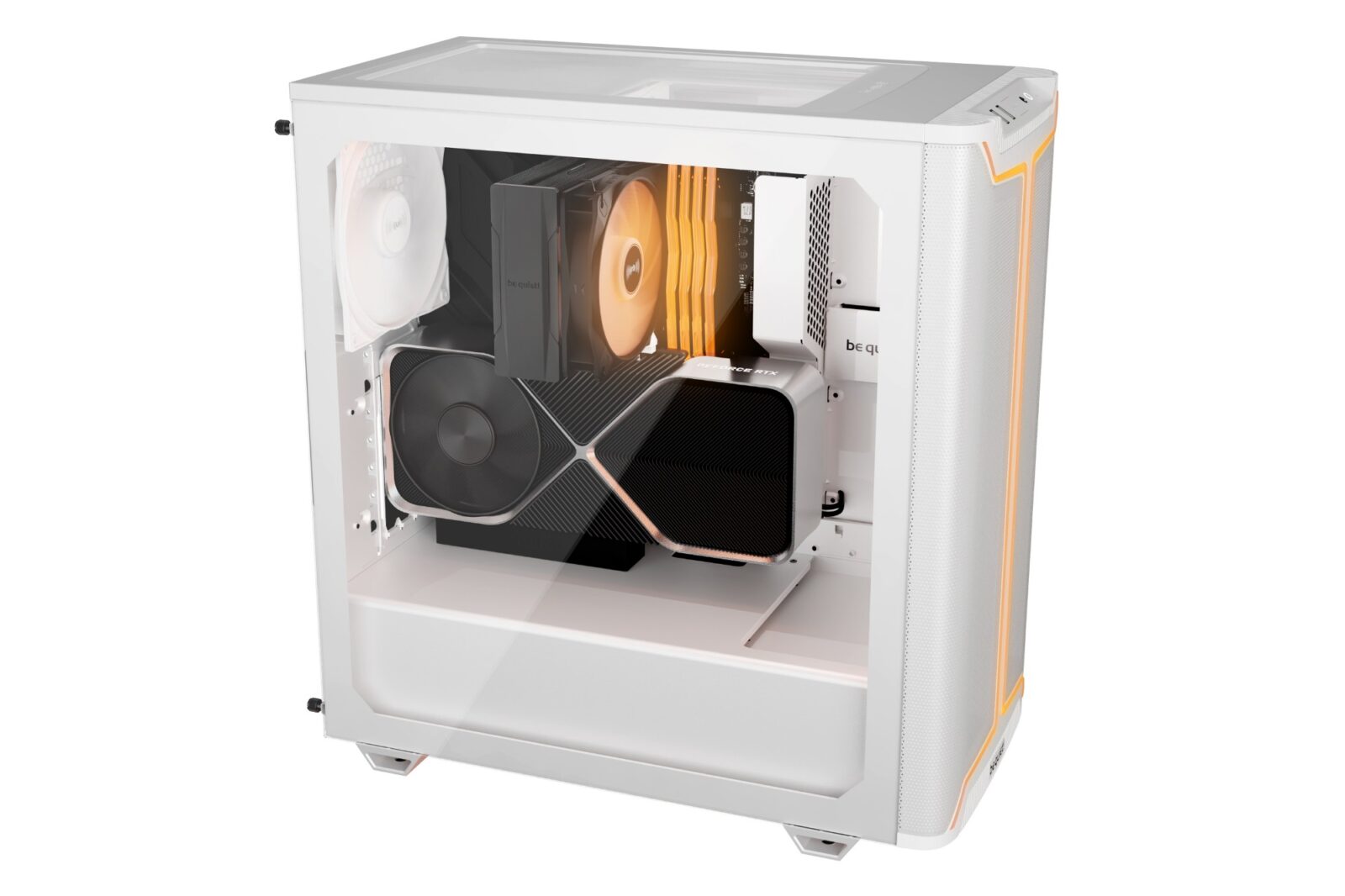

The Pure Base 501 DX White by be quiet! is a stylish and compact ATX case designed to deliver high airflow and stunning ARGB lighting. With ample room for powerful components and versatile cooling support, this case combines refined aesthetics with smart functionality for any build.
Looking Good!
Let it shine

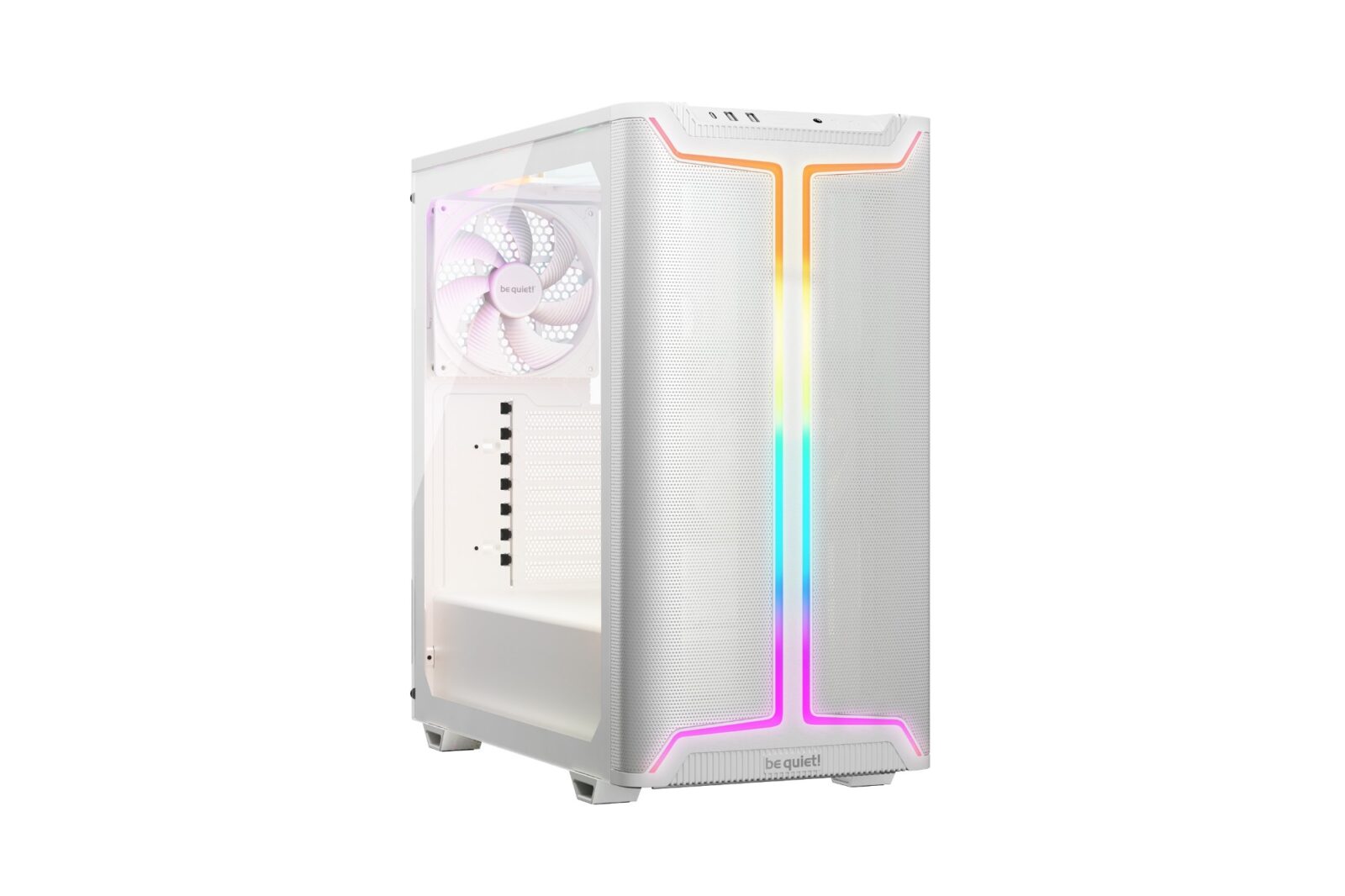

Equipped with front and interior ARGB lighting, the Pure Base 501 DX White delivers vibrant illumination with a clean, elegant look. The redesigned front panel enhances both airflow and style, making your setup stand out in any room.
Perfect Case Fan
Fan blades optimized for high airflow
The preinstalled Pure Wings 3 140mm PWM fans are engineered for superior airflow and quiet performance. With 7 optimized blades, they minimize turbulence while ensuring efficient cooling for demanding builds.
More Than Meets The Eye

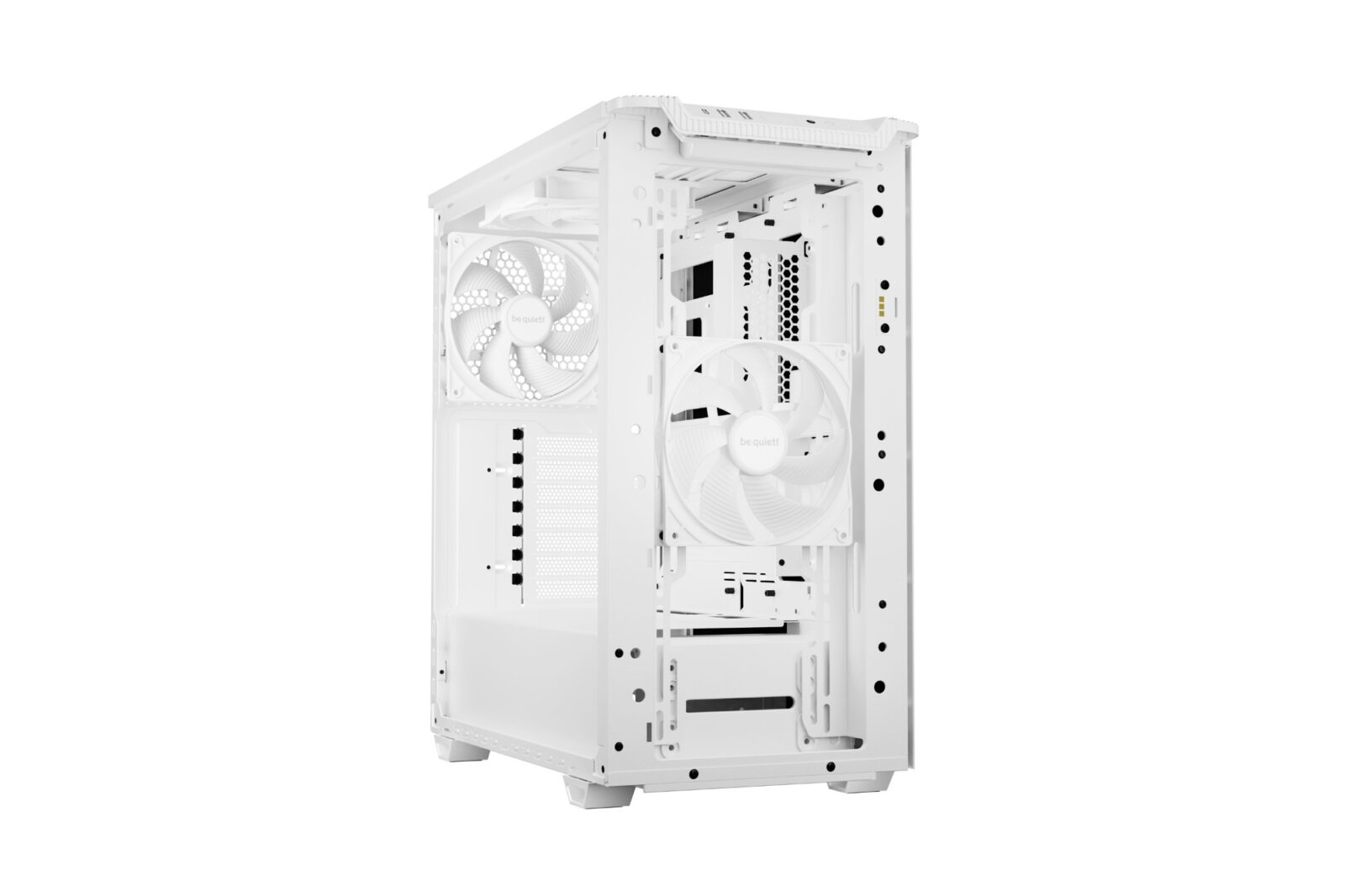

Spacious yet compact
Despite its compact dimensions, this case supports high-end GPUs and large CPU coolers. It accommodates triple fans or a 360mm radiator in the front, and up to two fans or a 240mm radiator on top.
Way Up!

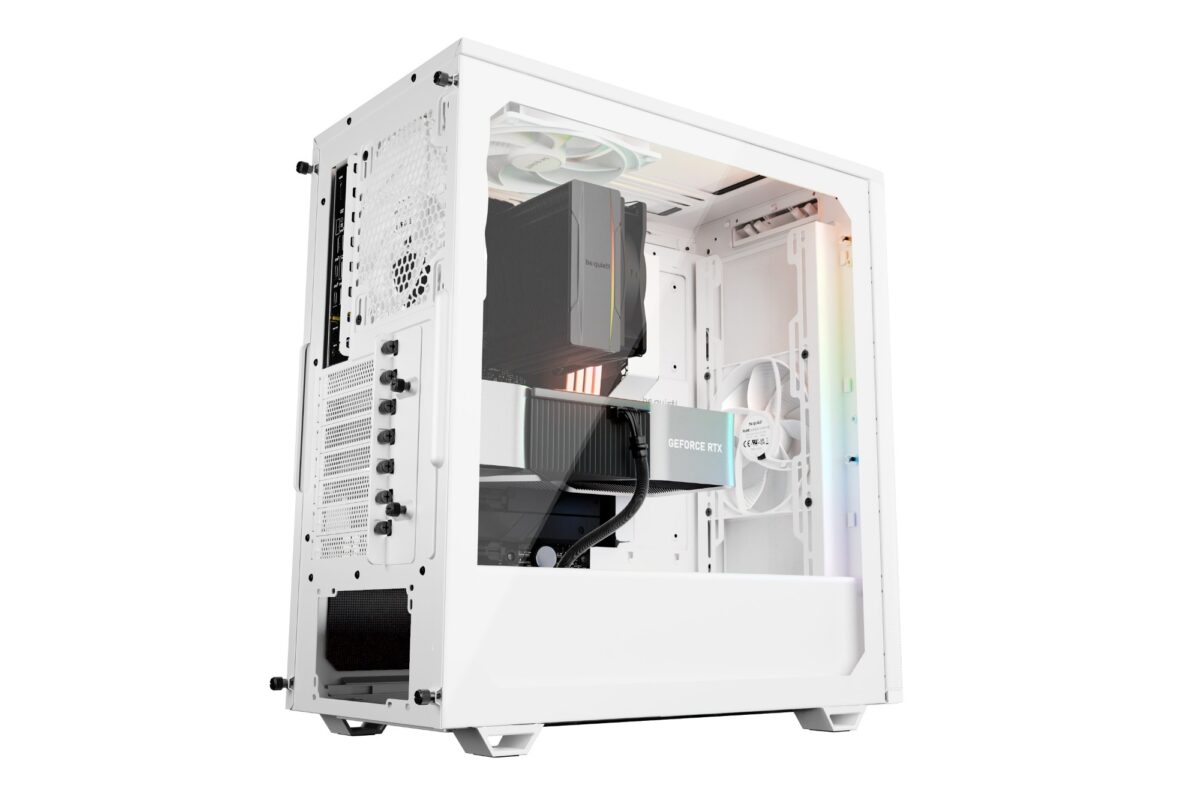

Vertical GPU mounting option
The rotatable PCIe slots allow for vertical GPU installation, offering a unique look while maintaining proper spacing. Compatible with the optional be quiet! Riser Cable, it includes anti-sag support for your graphics card.
Inventory Management
Effortless cable routing
Cleverly integrated cable routing channels and tie-down points make managing your cables clean and simple, maintaining a tidy interior layout.
Connect With Me
Modern front I/O for easy access
Featuring a USB 3.2 Gen. 2 Type-C port, dual USB Type-A ports, and a dedicated ARGB controller button, the front I/O provides high-speed connectivity and easy control over lighting effects.
Description
Specification
| Form Factor | ATX |
| Small Form Factor | No |
| Power Supply Wattage | No PSU included |
| Motherboard Support | ATX, Micro ATX, Mini ITX |
| Window(s) | Yes (Tempered Glass) |
| LED Lighting | Yes (ARGB LEDs) |
| Connectors / Controls | 1 x USB 3.2 Gen2 Type-C 2 x USB 3.2 Type-A Mic + Audio ARGB Controller Button |
| Drive Bays | 2 x 3.5″ 5 x 2.5″ |
| Expansion Slots | 7 |
| Cooling System (Included) | Top: 1 x Pure Wings 3 140mm PWM Front: 1 x Pure Wings 3 140mm PWM Rear: 1 x Pure Wings 3 140mm PWM |
| Fan Mounts | Top: 2 x 140mm / 2 x 120mm Front: 2 x 140mm / 3 x 120mm Rear: 1 x 140mm / 1 x 120mm |
| Radiator Support | Front: Up to 360mm Top: Up to 240mm Rear: Up to 140mm |
| Colour | White |
| Material | Top Cover: Steel Front Panel: ABS Side Panels: Steel Side Panel Window: Glass Stands: ABS |
| GPU Max Length | 368 mm |
| CPU Cooler Max Height | 178 mm |
| PSU Max Length | 200 mm (180 mm with bottom fan) |
| Dimensions (LxWxH) | Excl. Stands: 450 x 231 x 449 mm Incl. Stands: 450 x 231 x 463 mm |
| Weight | 7.8 kg |
| Package Weight | 9.15 kg |
| Accessories | Screw set (Drives/Motherboard) 1 x Additional standoff 2 x LED strips 12 x Cable ties |
| Warranty | 3 Years |
| Additional Features | Compact design High airflow front panel and top cover Optional vertical GPU installation Clean cable routing ARGB lighting (front & interior) |
