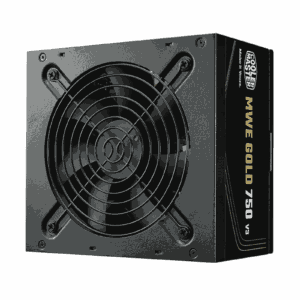

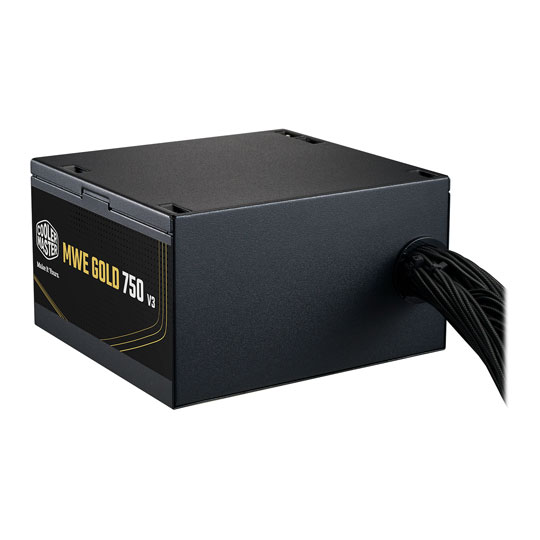

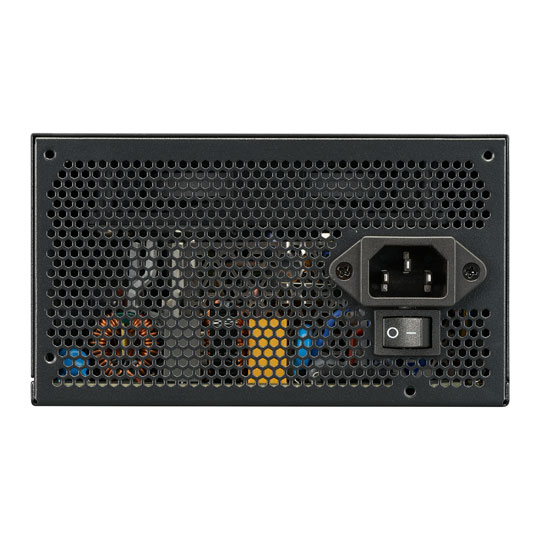

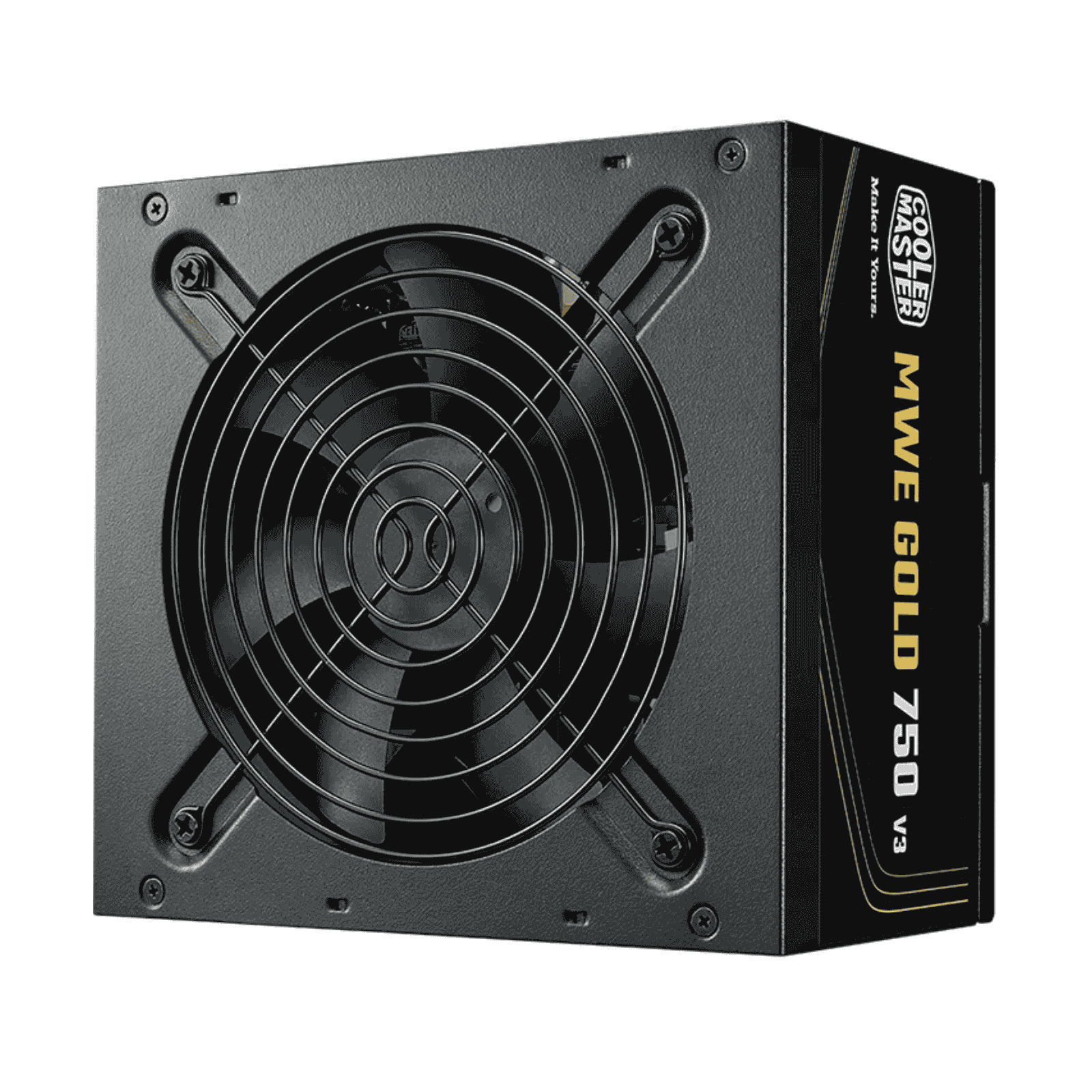

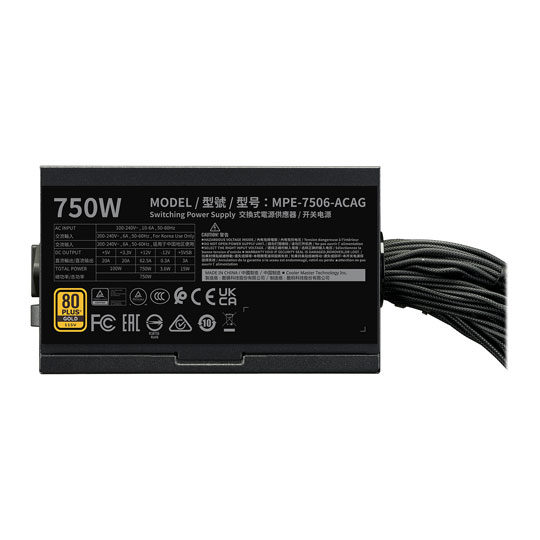

MWE GOLD 750 V3 ATX 3.1 Non-Modular
Introducing the MWE Gold V3, the evolutionary next step in Cooler Master power and the ATX 3.1 upgrade to our G Gold PSU. With features such as 80 Plus Gold efficiency, a DC-to-DC + LLC circuit design, and a quiet HDB fan cooling, the V3 provides valuable performance in multiple dimensions. Several changes and additions improve the overall user experience. Together, these design choices deliver an advanced PSU that is highly efficient and reliable. With an embossed cable, exceptional temperature resilience and a 5-year warranty, the MWE Gold V3 will evolve your machine.
- Quiet HDB fan – A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
- 80 Plus Gold efficiency certification – This unit is certified to achieve more than 90% efficiency at typical loads in a 115V test.
- High temperature resilience – A 40°C maximum operating temperature allows for pushing your machine to the limits with
- overclocking and other high-intensity applications.
- Embossed cable – An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.
- ATX 3.1 support & a durable 12V-2×6 cable – The ATX 3.1-compliant power supply supports 200% Times the peak power, making it ideal for next generation series GPUs to easily meet the demands of future high-performance graphics cards. Includes 180-degree 12+4pin (12V-2×6) cable that can support the maximum power consumption of 450W for mainstream graphics cards.
- Single +12V rail – All power comes from a single +12V source, ensuring consistent output through all connected
- cables.
- DC-to-DC technology – The DC-DC circuit design offers reliable, stable output to all connected components.
- 2 EPS Connectors – Two 4-pin EPS connectors are included for universal compatibility with current-gen motherboards.
- 5-year warranty – This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.
Description
Specification
- Form Factor: ATX
- Series: Cooler Master MWE
- Wattage: 750 W
- Modular: Fully Wired
- Compatibility: ATX 12V Ver. 3.1
- #Hide#Wattage Range: 700 – 760W
- Connectors: 1 x ATX 24 Pin = 1x (550mm)
2 x EPS 8 Pin / 4+4 Pin = 1x (550+120mm)
4 x PCl-e 6+2 Pin = 2x (550+120mm)
6 x SATA = 2x (400+150+150mm)
3 x Peripheral 4 Pin = 1x (400+150+150mm)
1 x 12V–2×6 (12+4 Pin) = 1x (600mm) - Rail Design: Single +12V Rail
- AC Input: 100 – 240V
- PFC: Active PFC
- Fan Type: 120mm Hydro Dynamic Bearing Fan
2400 RPM - Fan Bearing: Hydro Dynamic Bearing
- Max Certification: Gold
- Efficiency: 80+ Gold
90% @ Typical Load - MTBF: “100,000 Hours”
- Protection: UVP / OVP / OPP / OTP / SCP / OCP
- Additional Features: See Overview
- Weight/Dimensions: (LxWxH) 140 x 150 x 86 mm
- Package Weight: 2.9900 kg
- Warranty: 5 Years
- #Hide#ATX 3.1/3.0: ATX 3.1
