CORSAIR FRAME 4000D RS ARGB Modular High Airflow Mid-Tower PC Case – Fully Customizable Design – InfiniRail™ Fan Mounting System – Fits Multiple 360mm Radiators – ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth Compatible
Break the mold of conventional PC building with the CORSAIR FRAME 4000D RS ARGB. Engineered with the innovative FRAME Modular Case System, this high-airflow mid-tower case is a dream canvas for custom builders. Featuring three CORSAIR RS ARGB PWM fans, an InfiniRail™ Mounting System, and expansive radiator and GPU support, this case offers incredible flexibility and a bold aesthetic. Compatible with ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth motherboards, the FRAME 4000D redefines what a PC case can be.
- FRAME Modular Case System: Swap out components like the motherboard tray or I/O panel for full customization. The FRAME system evolves with your needs.
- Three RS ARGB PWM Fans: Pre-installed front fans with daisy-chainable 4-pin PWM connections, Zero RPM mode, and eight individually addressable LEDs per fan.
- InfiniRail™ Fan Mounting System: Steel sliding rails offer total freedom for fan and radiator placement—up to 200mm front fans and 140mm top fans.
- Cable Cover / Side Fan Mount: Internal side panel doubles as a cable cover or an optional fan mount for enhanced airflow.

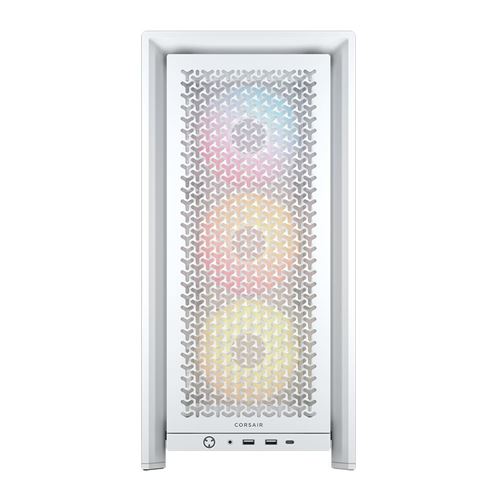

- 3D Y-Pattern Front Panel: High-airflow perforated steel front with 3D Y-pattern design for unrestricted cooling.
- Support for Three 360mm Radiators: Mount up to three 360mm radiators at front, top, and side simultaneously.
- Reverse Connection Ready: Fully compatible with hidden cable motherboards like ASUS BTF and MSI Project Zero.
- Front I/O Flexibility: Comes with USB 3.2 Gen2 Type-C and two USB 3.2 Gen1 Type-A ports, plus a swappable panel design for future upgrades.
- Flexible Storage: Supports up to 4x 2.5″ SSDs or 2x 3.5″ HDDs with removable drive cages.
- GPU Antisag Arm Included: Comes with a support arm to prevent GPU sagging—because performance should never droop.
- Expanded Interior: Slightly larger than the original 4000D to accommodate larger GPUs and cooling setups while remaining desk-friendly.
- iCUE LINK-Ready: Optimized layout with extra hooks, tie-downs, and a dedicated hub mount for streamlined iCUE LINK integration (hub sold separately).
Specifications
| Form Factor | E-ATX |
|---|---|
| Power Supply | No PSU Included |
| Motherboard Support | E-ATX (305mm x 277mm), ATX, Micro ATX, Mini ITX |
| Side Panel | Tempered Glass Window |
| LED Lighting | Yes, ARGB |
| Front I/O Ports | 1 × USB 3.2 Gen2 Type-C 2 × USB 3.2 Gen1 Type-A 1 × Headphone/Microphone Combo Jack Power Button, Reset Button |
| Drive Bays | 4 × 2.5″ SSD 2 × 3.5″ HDD |
| Expansion Slots | 7 (Horizontal/Vertical) |
| Pre-installed Fans | 3 × RS120 ARGB PWM (Front) |
| Fan Mounts | Front: 3 × 120mm / 2 × 140mm / 2 × 200mm Top: 3 × 120mm / 2 × 140mm Side: 3 × 120mm / 2 × 140mm PSU Shroud: 2 × 120mm Rear: 1 × 120mm / 1 × 140mm |
| Radiator Support | Front: Up to 360mm Top: Up to 360mm Side: Up to 360mm Rear: Up to 140mm PSU Shroud: None |
| Color | White |
| Materials | Steel, Tempered Glass |
| Clearance | GPU: 430mm CPU Cooler: 170mm PSU: 180mm |
| Dimensions | 487 × 239 × 486 mm |
| Weight | 8.2 kg (Package: 14.3 kg) |
| Additional Features | Fully customizable FRAME system 3D Y-pattern airflow front panel InfiniRail mounting system GPU anti-sag support arm iCUE LINK compatible Compatible with reverse connection motherboards |
| Accessories | Case Accessory Box |
| Warranty | 2 Years |
