MSI PRO B860M-A WIFI Intel B860 1851 Micro ATX 4 DDR5 HDMI DP TB4 Wi-Fi 7 5G LAN 3x M.2

Performance and Chipset Architecture

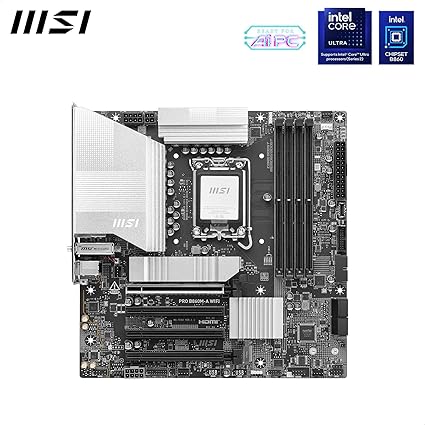

The MSI PRO B860M-A WIFI is built on the Intel B860 chipset and the latest Intel 1851 socket, providing a solid foundation for modern desktop computing. Supporting DDR5 memory with overclocking up to 8800MT/s, Intel XMP 3.0, and JEDEC speeds, this motherboard ensures high-speed and stable performance for productivity, multitasking, and professional workloads. Its efficient power design and compatibility with next-generation Intel CPUs make it a strong choice for users seeking reliability and long-term upgrade potential.

Memory, Expansion, and Advanced Storage

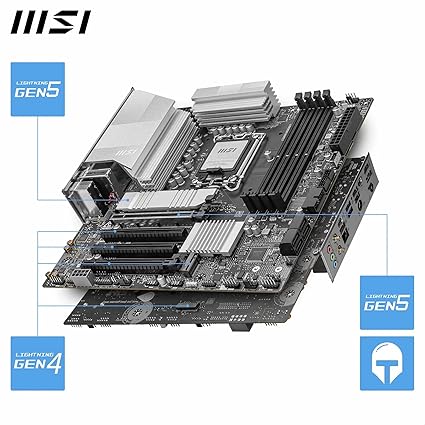

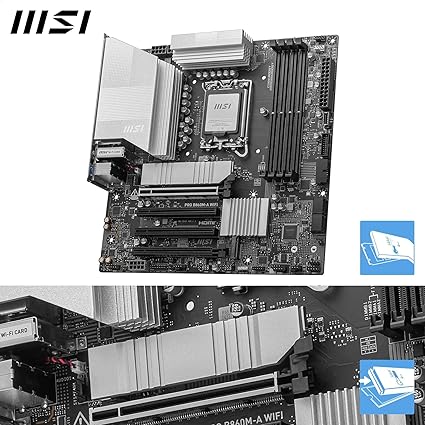

Designed for flexibility, this Micro ATX board features four DIMM slots supporting up to 256GB of DDR5 RAM in dual-channel mode. Expansion is made versatile with PCIe 5.0 x16 for high-end graphics cards, PCIe 4.0 x16, and PCIe 4.0 x1 slots for additional components. Storage performance is enhanced with three M.2 slots, including a PCIe 5.0 x4 slot for ultra-fast NVMe SSDs and PCIe 4.0 options suitable for gaming, content creation, and data-heavy applications. Users can also configure SATA RAID 0, 1, 5, and 10 for enhanced data protection and performance.

Connectivity, Networking, and I/O Options

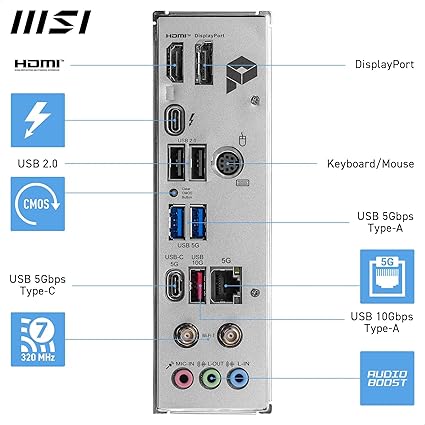

Connectivity is a highlight, with Wi-Fi 7 and Bluetooth 5.4 providing cutting-edge wireless speed and reliability. The 5G LAN port supports stable wired networking for gaming and professional environments. Display outputs include HDMI, DisplayPort 2.1, and Thunderbolt 4 with DisplayPort output capability, supporting multi-monitor setups and high-resolution displays. The board also offers extensive USB connectivity across both front and rear panels, including Thunderbolt 4, USB 10Gbps, USB 5Gbps, and USB 2.0 ports to accommodate modern peripherals.

Cooling, Internal Connectors, and Build Optimization

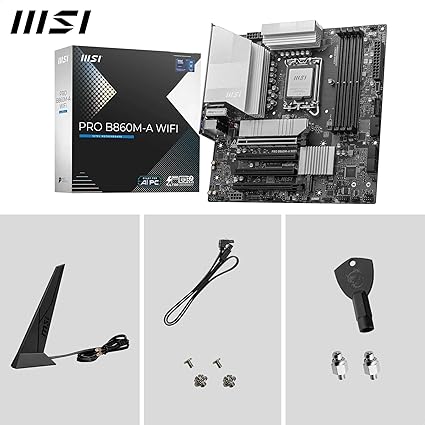

Comprehensive internal connectors allow for a structured and optimized build, including CPU and system fan headers, pump support, RGB and ARGB lighting connectors, TPM 2.0, chassis intrusion, and a Thunderbolt 5 card header. The motherboard includes multiple accessories such as Thunderbolt 5 card support, fan connectors, and RGB components to simplify installation. With high-definition 7.1 audio powered by Realtek ALC897 and a durable Micro ATX layout, the MSI PRO B860M-A WIFI is engineered to deliver stability, customization, and premium performance with a 3-year warranty backing it.
