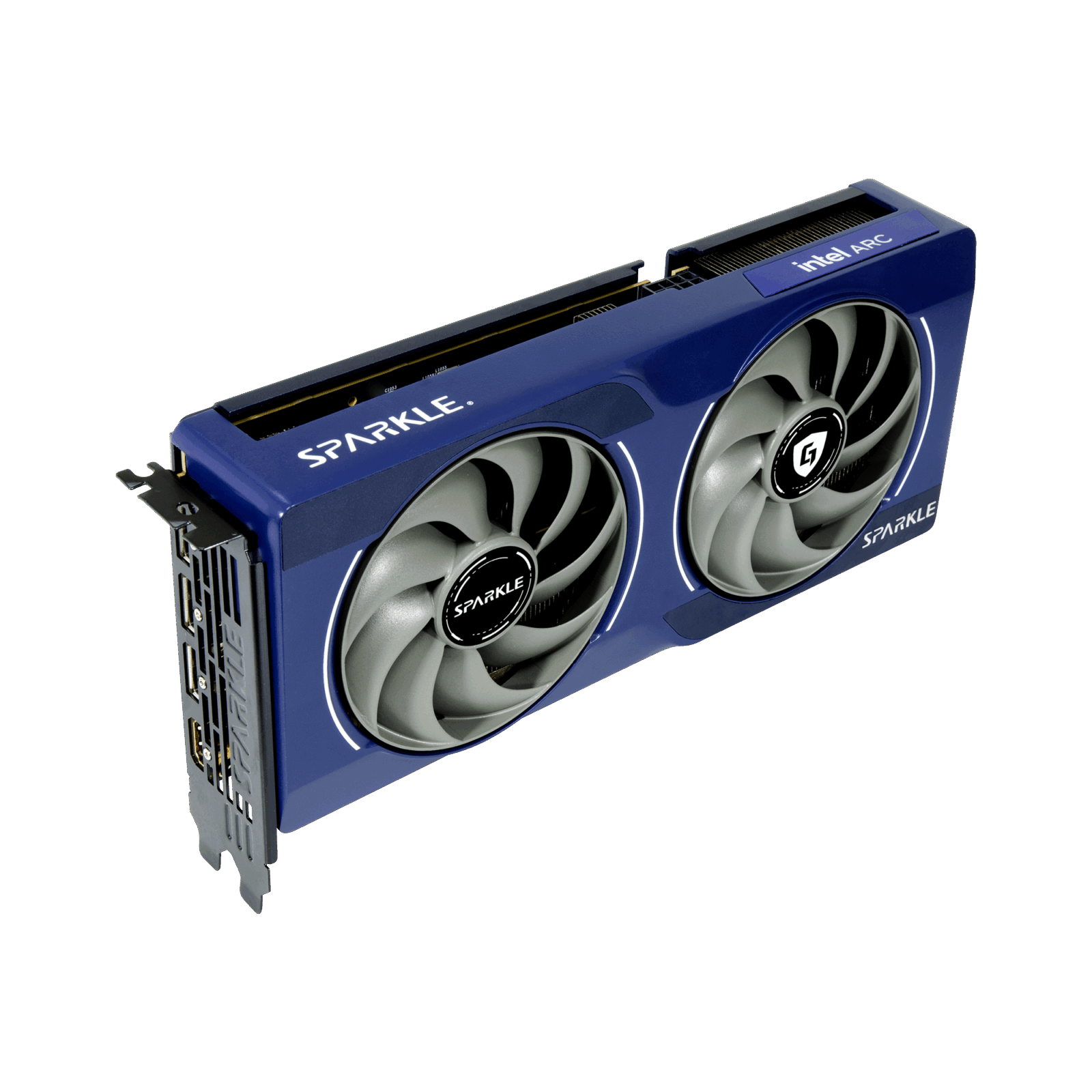

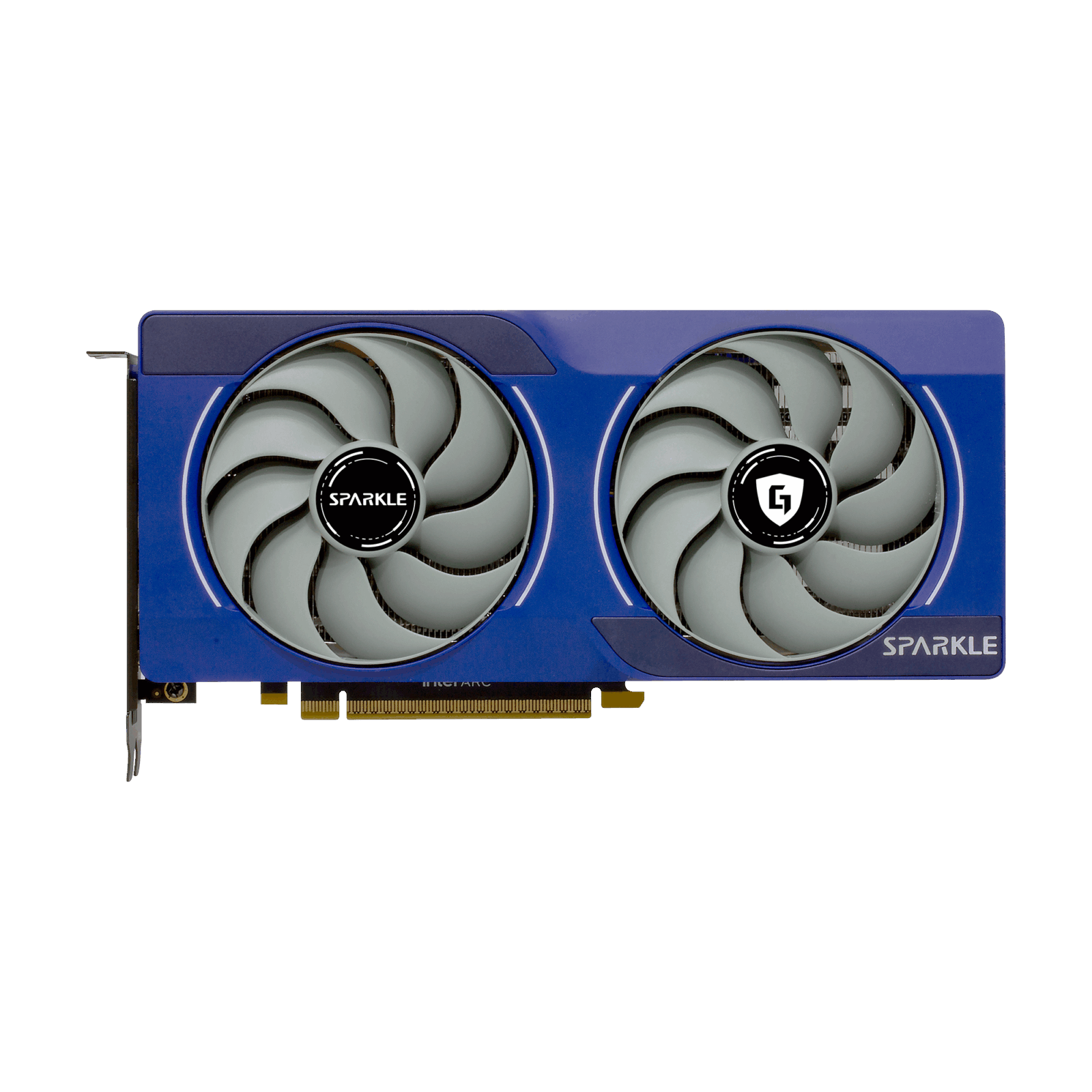

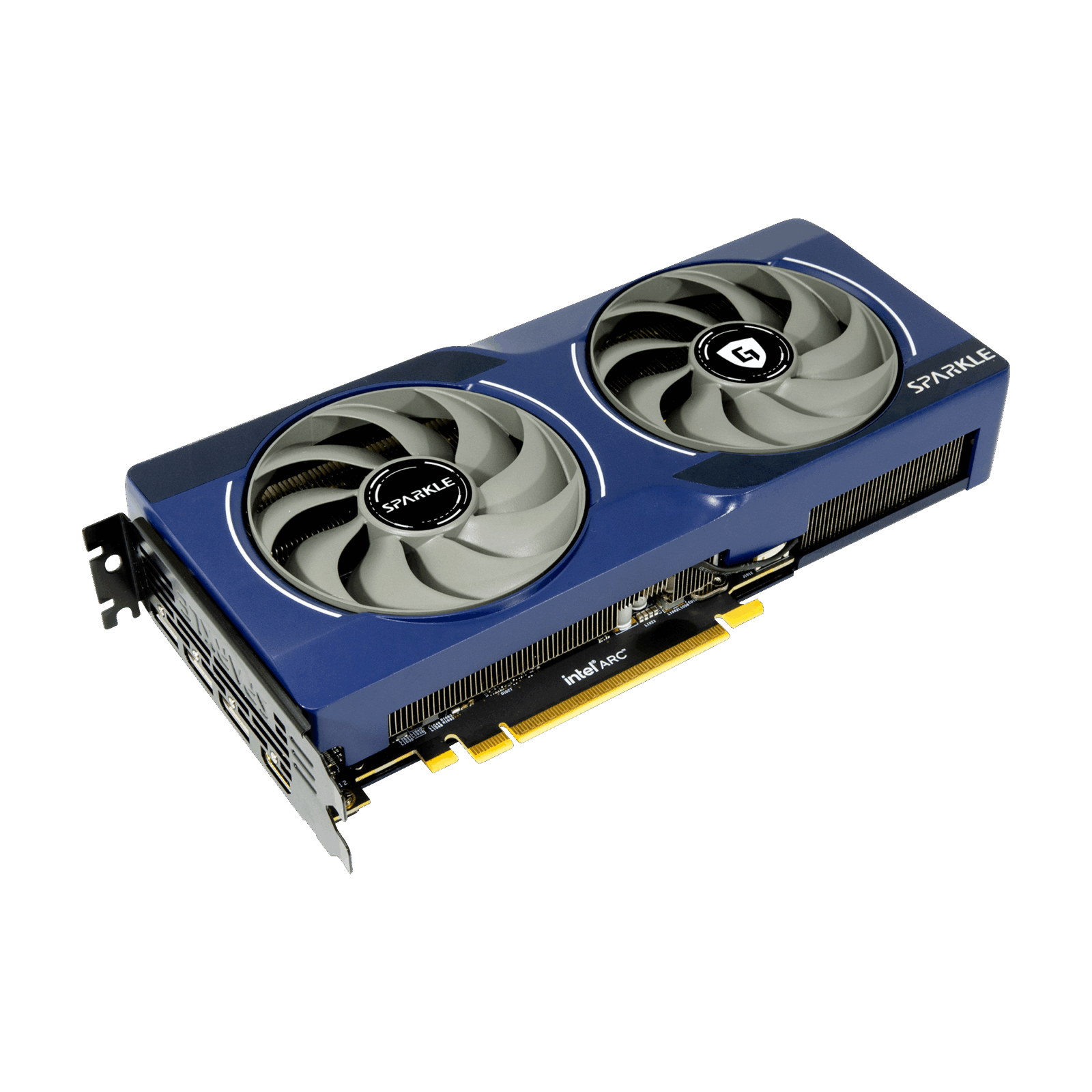

SPARKLE Intel® ArcTM B570 GUARDIAN Luna OC Graphics Card, 10GB GDDR6, TORN Cooling 2.0, Axial Fan, Breathing Light, Metal Backplate, SB570GW-10GOC
- Boost Clock: 2660 MHz
- Xe-Core: 18
- Ray Tracing Units: 18
- Intel® XMX Engines: 144
- GPU Peak Tops (Int8): 203
- Memory Size: 10GB GDDR6
- Graphics Memory Interface: 160-bit
- Graphics Memory Bandwidth: 380 GB/s
- Max Res.: Up to 8K at 120Hz HDR with DSC
- PCI Express Configurations: PCI Express 4.0 x8
- TBP: 170 Watt
- Lighting: Blue Breathing Light
The SPARKLE Intel® Arc™ B570 GUARDIAN OC Graphics Card delivers stunning high-resolution gaming performance powered by Intel XeSS AI upscaling and real-time ray tracing. With support for up to 8K HDR at 120Hz and advanced media capabilities, it enhances both gaming and content creation. Designed for efficiency and style, the GUARDIAN series features TORN Cooling 2.0 with dual axial fans, a 2.2-slot form factor, and a full-metal backplate. The elegant blue breathing light adds a refined touch to your build.
Key Features
- TORN Cooling 2.0
- Metal Backplate, Pre-Installed
- Ray Tracing
- Variable Rate Shading (VSR)
- DirectX 12 Ultimate
- Vulkan 1.3
- OpenGL 4.6
- OpenCL 3.0
- Adaptive Sync
- AV1 Encode / Decode
- VP9 Bitstream & Decoding
- Intel Deep Link Hyper Compute
- Intel Deep Link Hyper Encode
- Intel Deep Link Stream Assist.
| Specification | Details |
|---|---|
| Chipset Manufacturer | Intel |
| Graphics Chipset | Intel Arc B570 |
| Interface | PCI Express 4.0 |
| Memory Size | 10GB GDDR6 |
| Memory Type | DDR6 |
| Memory Interface | 160-bit |
| Core Clock | Boost Clock: 2660 MHz |
| Intel XMX Engines | 144 |
| Outputs | 1 x HDMI 2.1, 3 x DisplayPort 2.1 |
| Resolution | Up to 8K at 120Hz HDR with DSC |
| DirectX Support | DirectX 12 Ultimate |
| Max Display Support | 4 |
| Cooling | TORN Cooling 2.0 Dual Axial Fans |
| PSU Requirements | 600W or greater recommended |
| Connectors Required | 1 x 8-pin power |
| Additional Features | See Overview |
| Dimensions | 242 x 105 x 44 mm |
| Slot Size | 2.2 Slot |
| Package Type | Retail |
| Lighting Effects | Yes |
| HDMI | Yes (HDMI) |
| DisplayPort | Yes (DisplayPort) |
| Package Weight | 1.6330 kg |
| Warranty | 3 Years |
| White | Yes (White) |
