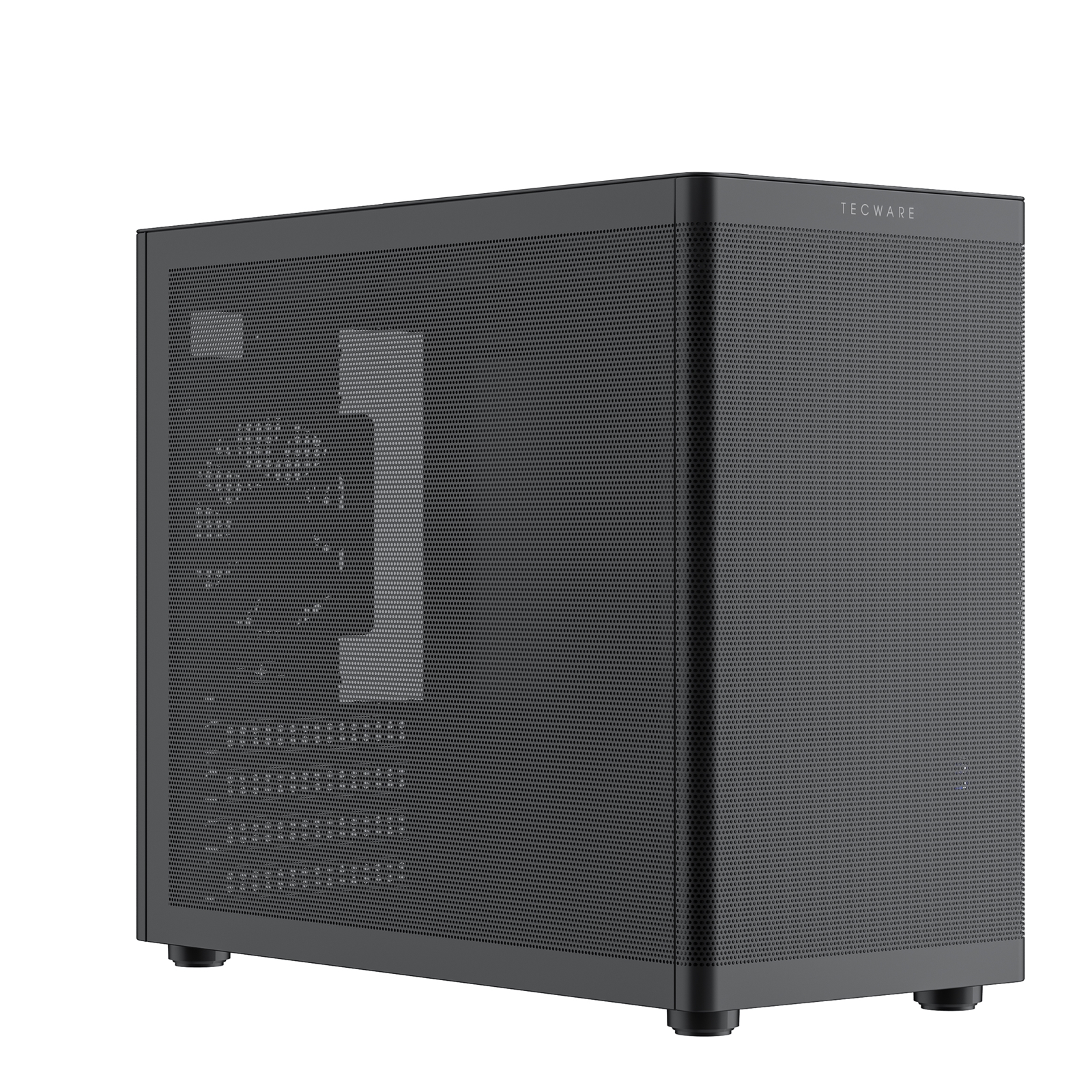

TecWare Fusion 3 mATX Compact PC Case, High Airflow SFF Chassis, 3 Fans Included, Top-Mount ATX/SFX PSU Support, USB-C, Supports 280mm GPU & Dual Radiators, Black

The TecWare Fusion 3 MATX Compact Mesh Case (TWCA-FUS3-BK) is a high-performance, space-saving chassis built for efficient airflow in compact builds. With a top-mounted PSU layout and pre-installed fans, this case is optimized for SFF systems without compromising cooling or hardware support.

Compact design with mesh intake for maximum airflow
Top-mounted PSU for efficient space management
Pre-installed fans: 2 x 120mm (top) + 1 x 90mm (rear)
Supports mATX and ITX motherboards
USB-C and USB 3.0 front panel connectivity

Case Specifications
Form Factor
Micro ATX

Motherboard Support
Micro ATX
Mini-ITX

PSU Support
ATX / SFX

PSU Location
Top-mounted

Body Material
Steel, Plastic, Mesh

Front Bezel Material
Mesh

Side Panel
Steel (non-tempered glass)

Internal Cable Management Depth
Approx. 15–20mm

Drive Bays
1 x 3.5″ HDD
1 x 2.5″ SSD

Expansion Slots
4 x Full Size

Cooling
Top: 2 x 120mm (Included)
Rear: 1 x 90mm (Included), supports 80mm
Bottom: Up to 2 x 120mm (1 x 120mm if HDD installed)

IO Ports
1 x USB 3.0
1 x USB-C
1 x HD Audio

GPU Max Length
280mm

CPU Cooler Maximum Height
140mm

PSU Max Length
150mm

Front Bezel Colour
Black (Mesh)

Body Colour
Black

PSU Included
No

Dimensions (W x H x D)
168 x 302 x 350 mm

Weight
Approx. 3.5kg
