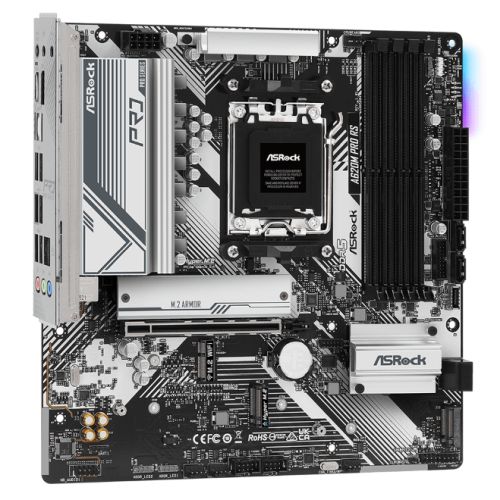

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
- 6+2+1 Power Phase, Dr.MOS, 120W CPU Ready
- Supports DDR5 6000+ MHz (OC)
- 1 PCIe 4.0 x16, M.2 Key E for WiFi
- Graphics Output: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 x SATA3, 2 x Hyper M.2 (PCIe Gen4x4), 1 x M.2 (PCIe Gen3x2)
- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer, BIOS Flashback
Optimized VRM Design
Built with sturdy components optimized for AMD Ryzen™ 7000X3D processors for enhanced gaming performance.
6 Layer PCB
Delivers lower temperatures and higher energy efficiency with stable signal traces and power shapes.
Reinforced Steel Slot [PCIe 4.0]
- Extra anchor points
- Stronger latch
- Signal stability
- Secure heavy graphics cards
Nahimic Audio
- Audio That Matters: Immersive audio across all devices and outputs
- Enhanced Communication: Noise-free, clear voice pickup regardless of distance
- Sound Tracker: 360° visual audio radar for gaming immersion
- Device Compatibility: Works with Jack, USB, Bluetooth, HDMI, and S/PDIF
Polychrome RGB
Onboard RGB and ARGB headers with Polychrome RGB Sync support for customizable lighting effects.
High-Speed M.2 Solution
Supports PCIe Gen4x4 M.2 SSD for ultra-fast data transfer, doubling Gen3 speeds.
Front USB 3.2 Gen1 Type-C
Offers 5 Gbps transfer speed with next-gen reversible connector on the front panel.
EZ Setting
- Auto Driver Installer: Ethernet driver in BIOS allows automatic driver download post OS installation
- BIOS Flashback: Update BIOS via USB without CPU/RAM
- Pre-Installed IO Shield: Simplifies and speeds up chassis installation
Description
Specifications
| Motherboard Type | Desktop |
| Form Factor | Micro ATX |
| Socket | AMD AM5 |
| Chipset | AMD A620 |
| RAM Technology | DDR5 (Dual Channel) |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Up to 6000+ MHz (OC) |
| Maximum Memory | 256GB |
| Graphics | Integrated (varies by CPU) |
| Graphics Ports | 1 x HDMI, 1 x DisplayPort |
| PCI/PCIe | 1 x PCIe 4.0 x16 |
| Storage | 4 x SATA III, 3 x M.2 (2 PCIe Gen4x4, 1 PCIe Gen3x2) |
| RAID Support | RAID 0/1/10 for SATA & M.2 NVMe devices |
| LAN | Realtek Gigabit LAN |
| Audio | 7.1 CH HD Audio (Realtek ALC897), Nahimic Audio |
| USB (Rear + Internal) | 1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Mid-board) 8 x USB 2.0 (4 Rear, 4 Mid-board) 1 x Front USB 3.2 Gen1 Type-C connector |
| Back Panel I/O | 2 x Antenna Mounts 1 x HDMI, 1 x DisplayPort 1.4 3 x USB 3.2 Gen1 Type-A 1 x USB 3.2 Gen1 Type-C 4 x USB 2.0 1 x RJ-45 LAN 1 x BIOS Flashback Button HD Audio Jacks |
| Internal Connectors | 1 x SPI TPM 1 x Power LED/Speaker 1 x RGB LED 3 x Addressable RGB 1 x CPU Fan 1 x CPU/Water Pump Fan 3 x Chassis/Water Pump Fan 1 x 24-pin ATX, 1 x 8-pin 12V 1 x Front Panel Audio 2 x USB 2.0, 1 x USB 3.2 Gen1 |
| Accessories | 1 x User Manual 2 x SATA Data Cables 4 x M.2 Screws 1 x M.2 Standoff |
| Package Type | Retail |
| Package Weight | 1.3 kg |
| Warranty | 3 Years (Replacement) |
| CPU Support | Click here |
