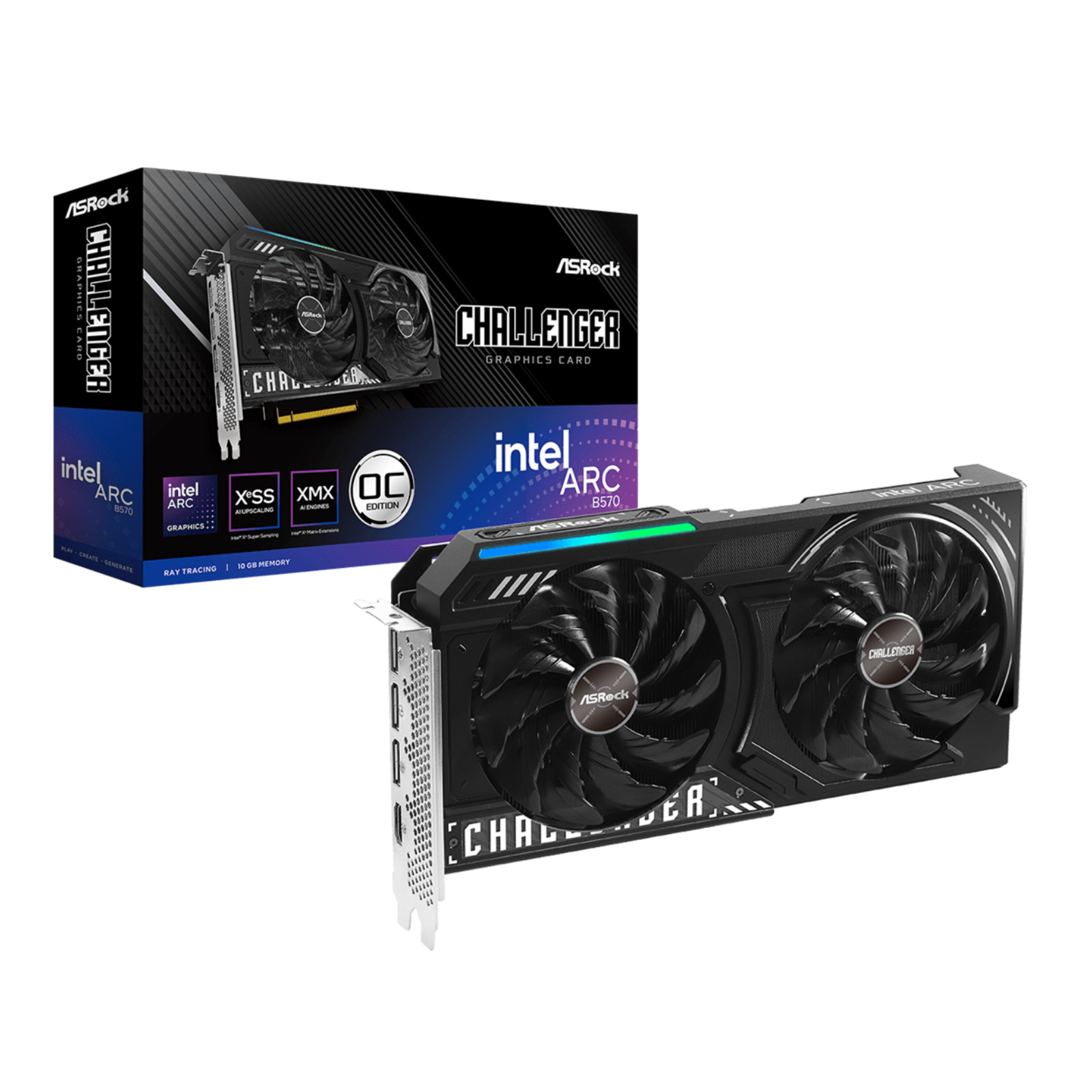

Intel Arc B570 Challenger 10GB OC
- GPU Clock: 2600 MHz
- Memory Clock: 19 Gbps
- Intel® Arc™ B570 Graphics
- 10GB 160-bit GDDR6
- Intel® Xe2-HPG Architecture
- Intel® Xe Super Sampling 2 (Intel® XeSS 2)
- Intel® Xe Matrix Extensions (Intel® XMX)
- DirectX® 12 Ultimate
- 1x 8-pin Power Connectors
- 3x DisplayPort™ 2.1 / 1x HDMI™ 2.1a
- Dual Fan Design
- Stylish Metal Backplate
- Striped Axial Fan
- LED Indicator
- 0dB Silent Cooling
- Super Alloy Graphics Card
Dual Fan Design
Optimized Cooling Efficiency.
Provides not only the fancy outlook but also the optimized cooling efficiency for the best balance between performance and silence.
Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.
Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
LED Indicator
More Decoration. More Beauty.
Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Japanese SP-Cap
With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.
SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability.
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
Game ready, feature packed
Enjoy high performance in the latest games at 1080p and 1440p with AI upscaling and ray tracing. Get the performance and features you expect, at the prices you deserve.
Game-changing, modern tech
Increase performance, responsiveness, and more with Intel® Arc™ gaming technologies.
Get exceptional performance and visual quality in over 150 games enabled with AI-boosted, Intel® Xe Super Sampling (XeSS) technology.
Make your games play smoother and more responsive with Intel® XeSS Frame Generation and Intel® Xe Low Latency technologies from Intel.
Up-to-date, software releases
Stay up to date with regular software releases supporting the latest games and get consistently improved gaming experiences.
A versatile creator toolkit
Save time and export videos quickly with twin media transcoders supporting dual-encode. Create content with support for the most popular media formats including cutting-edge AV1.
The powerful Xe media engine enables you to create and edit content quickly in high-res.
Built to explore AI
Explore the latest AI experiences such as text to image generation and AI chatbots right on your PC. AI Playground, a free and private app, brings AI capabilities together into an easy-to-use experience.
Enjoy enhanced gaming, speed through creating, and more with specialized AI Engines built into Intel® Arc™ Graphics called Xe Matrix eXtensions (XMX).
| Specification | Details |
|---|---|
| Chipset Manufacturer | Intel |
| Interface | PCI Express 4.0 |
| Graphics Chipset | Intel Arc B570 |
| Memory Size | 10GB |
| Memory Type | DDR6 |
| Memory Interface | 160-bit |
| Core Clock | 2600 MHz |
| Memory Clock | 19 Gbps |
| Intel XMX Engines | 144 |
| Outputs | 1 x HDMI 2.1a, 1 x DisplayPort 2.1 (Primary, up to UHBR13.5), 2 x DisplayPort 2.1 (Up to UHBR10) |
| HDCP Support | Yes |
| Resolution | Digital Max Resolution: 7680 x 4320 |
| DirectX Support | DirectX 12 Ultimate |
| Max Display Support | 4 |
| Cooling | Dual Fan Design, Striped Axial Fan, 0dB Silent Cooling, Ultra-fit Heatpipe, High-density Metal Welding, Nano Thermal Paste |
| PSU Requirements | 600W or greater recommended |
| Connectors Required | 1 x 8-pin power |
| Additional Features | See Overview |
| Dimensions | 249 x 132 x 41 mm |
| Slot Size | 2 Slot |
| Accessories | 1 x Quick Installation Guide |
| Package Type | Retail |
| #Hide#Lighting Effects | Yes |
| #Hide#HDMI | Yes (HDMI) |
| #Hide#DisplayPort | Yes (DisplayPort) |
| Package Weight | 1.6300 kg |
| Warranty | 2 Year Replacement Warranty |
